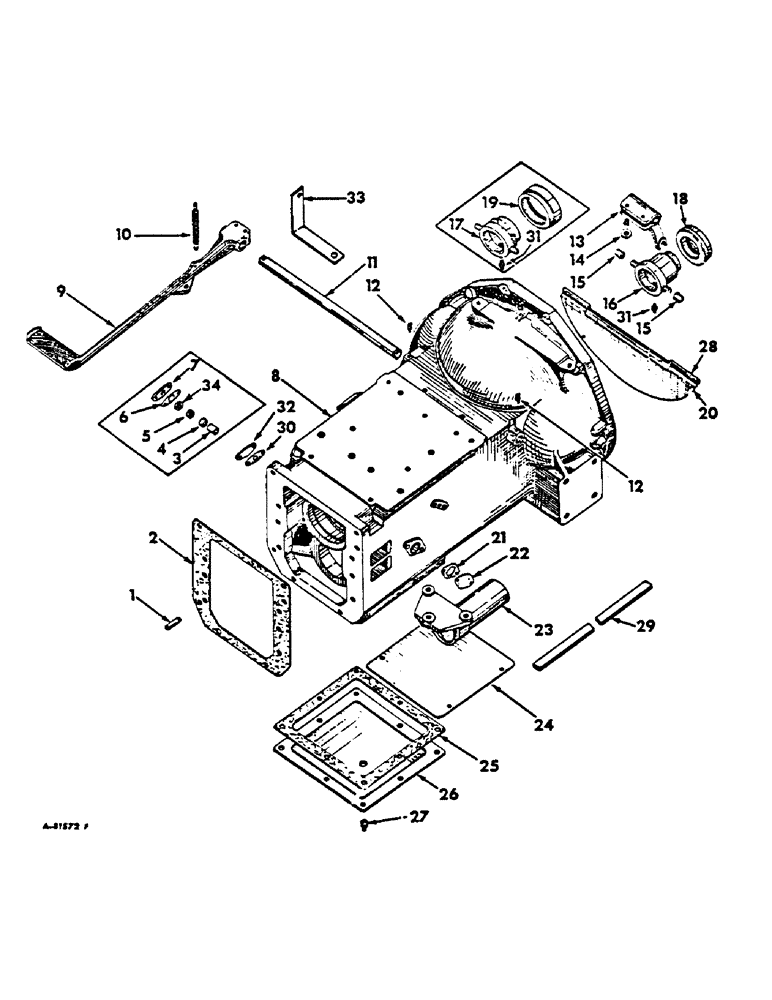

Запчасти Case IH 444 (B-05) - POWER TRAIN, CLUTCH HOUSING AND CONNECTIONS (03) - POWER TRAIN

1

751443R1

PIN

dowel, clutch housing

2шт.

2

751124R2

GASKET

GASKET clutch housing to transmission case

1шт.

3

3048691R1

BUSHING

connecting shaft, tractors with forward and reverse transmission

1шт.

4

3048690R91

SEAL

oil, connecting shaft, tractors with forward and reverse transmission

1шт.

5

3048729R1

WASHER

SPARE PART connecting shaft, tractors with forward and reverse transmission

1шт.

443003

PIN

3/32" x 3/4" groove

1шт.

6

3048736R1

SHIM

retaining plate, connecting shaft, tractors with forward and reverse transmission

1шт.

6

3048737R1

SHIM

SPARE PART retaining plate, connecting shaft, tractors with forward and reverse transmission

1шт.

7

3048728R1

PLATE ASSY.

retaining, connecting shaft, tractors with forward and reverse transmission

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

8

3044048R22

HOUSING

HOUSING ASSY. clutch, composed of: (3) bolt 3069627R1, (2) fitting 109462, (1) housing 3044048R2 (NSS), (1) plug 103868, (3) plug 3071654R1 (NSS), (3) washer 103325

1шт.

8

3047584R21

HOUSING

ASSY. clutch, tractors with forward and reverse transmission, composed of: (3) bolt 3069627R1, (2) fitting 109462, (1) housing 3047584R2 (NSS) , (1) plug 103868, (3) plug 3071654R1 (NSS), (3) washer 103325

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW cap, hex head, 1/2"-13 x 1-1/2"

8шт.

751123R1

BOLT,Hex, 1/2" - 13 x 1 3/4"

SCREW cap, hex head, 1/2"-13 x 1-3/4"

2шт.

20549R1

BOLT,Hex, 1/2" - 13 x 1 7/8", Gr 8

cap, hex head, 1/2"-13 x 1-7/8", diesel engine tractors, 5 used with power steering

4шт.

20612R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

SCREW cap, hex head, 1/2"-13 x 1-3/8", gasoline engine tractors, 5 used with power steering

4шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW cap, hex head, 1/2"-13 x 1-3/4", diesel engine tractors

2шт.

264239R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

SCREW cap, hex head, 1/2"-13 x 2", 1 used on diesel engine tractors without power steering, 3 used on gasoline engine tractors without power steering, 2 used on gasoline engine tractors with power steering

1шт.

103323

LOCK WASHER,1/2"

17шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG pipe, square head, 1/2"

1шт.

9

3074226R1

SPARE PART clutch

1шт.

751399R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Full Thd

clutch pedal, tractors with constant running PTO

1шт.

3047838R1

BOLT

clutch pedal

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

751872R1

NUT

hex, 3/8"-24

2шт.

181379

BOLT,Hex, 3/8" - 24 x 2", Gr 5

SCREW cap, hex head, 3/8"-24 x 2"

2шт.

103321

LOCK WASHER,3/8"

2шт.

10

705252R3

SPRING

return, clutch pedal

1шт.

11

3071270R1

SHAFT

clutch release

1шт.

3045166R1

RING

CIRCLIP shaft, clutch release

1шт.

49405H

WASHER

SPARE PART 27/32" x 1-1/4" x 16 gauge

1шт.

12

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 90° angle, 1/8"-27 PTF

2шт.

13

3044005R2

FORK

clutch release

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

fork, clutch release

2шт.

103320

LOCK WASHER,5/16"

2шт.

14

3047229R1

WASHER

KEY shaft, clutch release

1шт.

15

3045088R1

INSERT

fork bushing, clutch release

2шт.

16

3069739R3

SLEEVE

clutch release

1шт.

17

3070647R1

SLEEVE

clutch release, tractors with constant running PTO

1шт.

18

59879D

BALL BEARING,60.33mm ID x 88.9mm OD x 18.67mm W

ball, clutch release

1шт.

19

3070634R91

BALL BEARING

clutch release, tractors with constant running PTO

1шт.

20

703957R1

COVER

dust, clutch housing, diesel engine tractors

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

2шт.

21

751130R1

GASKET

hole cover plate, PTO shifter

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW cap, hex head, 7/16"-14 x 1-1/4"

3шт.

103322

LOCK WASHER,7/16"

3шт.

22

751131R1

PLATE

hole cover, PTO shifter

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

SCREW cap, hex head, 1/4"-20 x 11/16"

2шт.

103319

LOCK WASHER,1/4"

2шт.

23

3069738R1

SPARE PART sleeve, clutch release

1шт.

23

3045087R1

CARRIER

sleeve, clutch release, tractors with constant running PTO

1шт.

24

751125R1

COVER

hand hole, clutch housing

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

103321

LOCK WASHER,3/8"

4шт.

25

751126R1

GASKET

cover plate, PTO gear box

1шт.

26

751127R1

PLATE

cover, PTO gear box

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

103321

LOCK WASHER,3/8"

8шт.

27

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Pipe

1шт.

28

390913R1

SPARE PART sealing, dust cover, clutch housing, diesel engine tractors

1шт.

29

3068215R1

SEAL

sealing, hand hole cover

1шт.

30

3047592R1

GASKET

backing plate, clutch housing, tractors without forward and reverse transmissions or constant running PTO

1шт.

31

109461

LUBE NIPPLE,1/8"-27 x .66 lg

1шт.

32

3047593R1

PLATE

backing, clutch housing, tractors without forward and reverse transmissions or constant running PTO

1шт.

33

388889R1

SPARE PART BRACKET return spring, clutch pedal, tractors with power steering

1шт.

179854

SCREW,Hex, 7/16" - 14 x 5/8"

SCREW cap, hex head, 7/16"-14 x 5/8"

1шт.

103322

LOCK WASHER,7/16"

1шт.

34

3109610R1

SHIM

connecting shaft

1шт.
