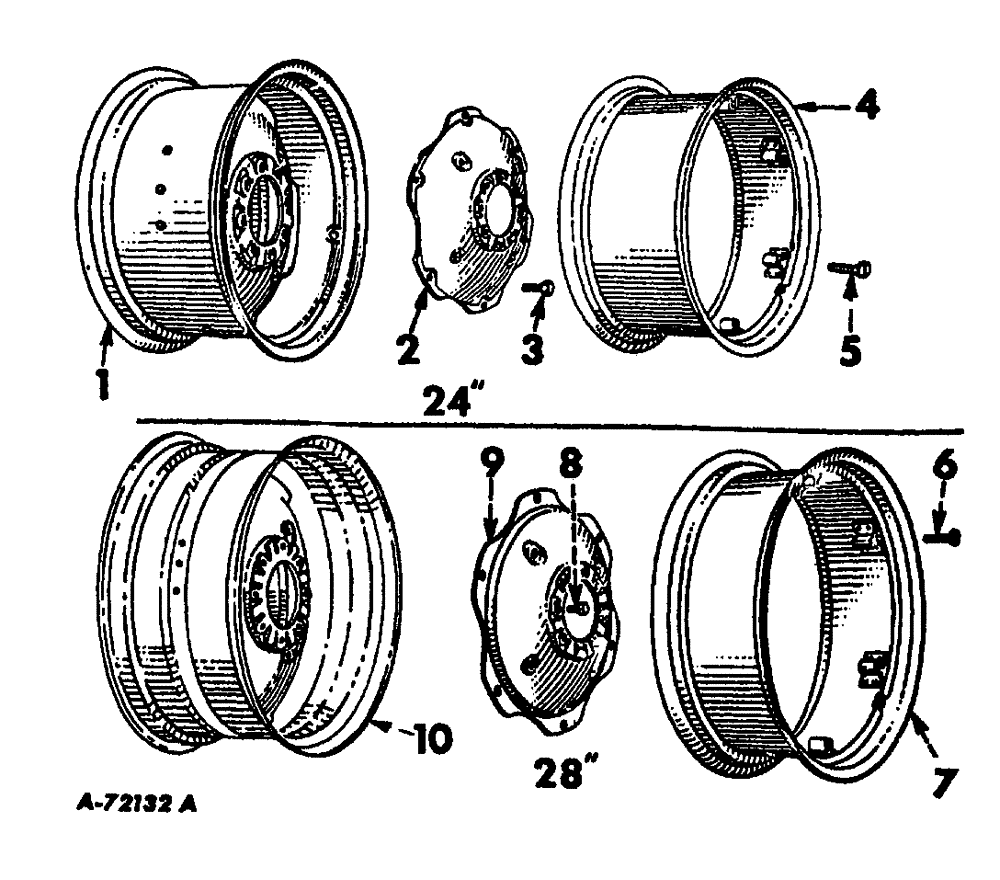

Запчасти Case IH 444 (L-04) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS Wheels & Wheel Weights

1

364346R92

WHEEL

rear, for 60" or 72" tread setting, one piece disc type, W12-24 rim, for 13.6/12-24, 14.9/13-24 or 16.9/14-24 tire

2шт.

1

376196R91

WHEEL

rear, for 64" or 68" tread setting, one piece disc type, W12-24 rim for 13.6/12-24, 14.9/13-24 or 16.9/14-24 tire

2шт.

1

365480R91

WHEEL

rear, for 60 thru 70" tread setting, one piece disc type, W16L-24 rim for 16.9-24 tire

2шт.

2

374806R1

DISC, WHEEL

rear

2шт.

3

51485D

BOLT,9/16" - 18 x 1 7/32"

mounting, rear wheel

16шт.

4

374807R91

RIM

SPARE PART RIM ASSY. rear wheel, W10-24 rim for 11.2/10-24 or 12.4/11-24 tire

2шт.

4

374808R91

SPARE PART

RIM ASSY. rear wheel, W12-24 rim for 13.6/12-24, 14.9/13-24 or 16.9/14-24 tire

2шт.

5

363800R1

BOLT,5/8" - 18 x 3 1/8"

clamp, rear wheel rim

12шт.

352777R1

NUT

hex, cd. pltd., 5/8"-11

12шт.

131140

LOCK WASHER,5/8"

12шт.

369730R1

WASHER

cd. pltd., 21/32" x 1-5/16" x 10 gauge

12шт.

6

363800R1

BOLT,5/8" - 18 x 3 1/8"

clamp, rear wheel rim, 24 used on tractors with dual rear wheels

12шт.

352777R1

NUT

hex, cd. pltd., 5/8"-11, 24 used on tractors with dual rear wheels

12шт.

369730R1

WASHER

cd. pltd., 21/32" x 1-5/16" x 10 gauge, 24 used on tractors with dual rear wheels

12шт.

131140

LOCK WASHER,5/8"

24 used on tractors w/ dual rear wheels

12шт.

7

361700R91

RIM

RIM ASSY. rear wheel, W10-28 rim for 12.4/11-28 tire, 4 used on tractors with dual rear wheels

2шт.

7

363988R91

RIM

WHEEL ASSY. rear, W12-28 rim for 13.6/12-28 or 14.9/13-28 tire

2шт.

7

373508R91

SPARE PART ASSY. rear wheel, W14-28 rim for 16.9/14-28 tire

2шт.

8

368114R1

BOLT,Hex, 9/16" - 18 x 1.78"

mounting, rear wheel

16шт.

124634

NUT,9/16"-18, G5

16шт.

120898

LOCK WASHER,9/16"

16шт.

9

361724R1

WHEEL DISC

rear

2шт.

10

376197R91

WHEEL ASSY.

rear, W12-28 rim for 13.6/12-28 or 14.9/13-28 tire

2шт.
