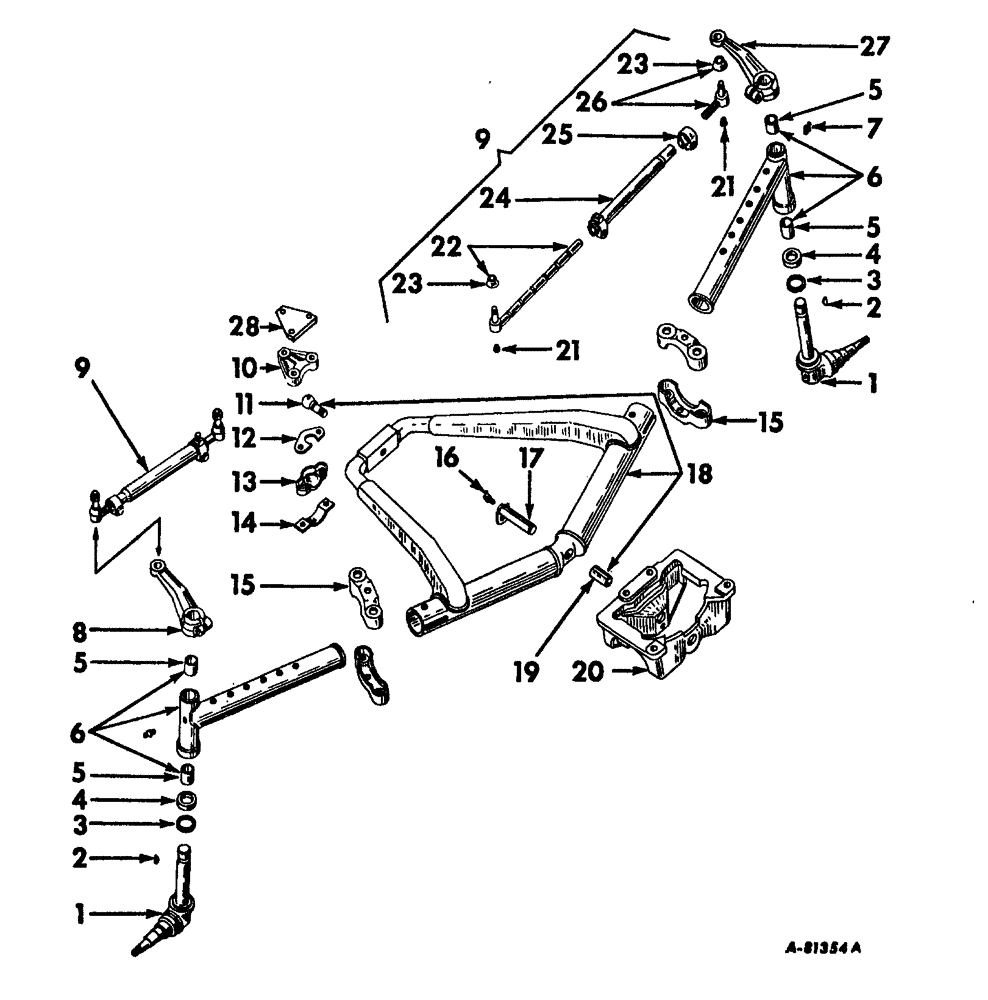

Запчасти Case IH 444 (J-11) - STEERING MECHANISM, FRONT AXLE AND LOWER BOLSTER Steering Mechanism

1

371705R91

KNUCKLE

ASSY. steering, composed of: (1) deflector 43462D, (1) key 117997, (1) knuckle 368624R1 (NSS), (1) post 369005R1 (NSS), (1) seal 368629R91

2шт.

1

373890R91

SPARE PART ASSY. steering, increased clearance axles or 45 to 69" narrow tread axles with 20" ground clearance, composed of: (1) deflector 43462D, (1) key 117997, (1) knuckle 368624R1 (NSS), (1) post 373891R1 (NSS), (1) seal 368629R91

2шт.

2

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

3

368627R1

WASHER

felt, steering knuckle

2шт.

4

365317R91

THRUST BEARING,36.51mm ID x 2.48mm OD x 16.51mm W

thrust, steering knuckle

2шт.

5

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

post, steering knuckle

4шт.

6

379201R11

SPARE PART ASSY. front axle

2шт.

6

379223R91

SPARE PART ASSY. front axle, increased clearance front axle

2шт.

6

393225R11

SPARE PART ASSY. front axle, 45 to 61" narrow tread with 17" ground clearance

2шт.

6

393506R91

SPARE PART ASSY. front axle, 45 to 61" narrow tread with 20" ground clearance

2шт.

6

390918R91

SPARE PART ASSY. front axle, 49 to 69" narrow tread with 17" ground clearance

2шт.

6

390805R91

SPARE PART ASSY. front axle, 49 to 69" narrow tread with 20" ground clearance

2шт.

7

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

Steering knuckle pivot

2шт.

8

376348R1

ARM

steering knuckle, R.H.

1шт.

8

379226R1

SPARE PART steering knuckle, R.H., increased clearance axles or 45 to 69" narrow tread axles with 20" ground clearance

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

cap, hex head, 1/2"-13 x 3"

1шт.

9

379202R91

ROD

ASSY. adjustable tie

2шт.

9

393226R91

ROD

ASSY. adjustable tie, 45 to 61" narrow tread

2шт.

9

399289R91

SPARE PART ASSY. adjustable tie, 49 to 69" narrow tread

2шт.

10

3043920R1

CUP

SOCKET ball, stay rod

1шт.

11

391408R92

PACKAGE

ball, stay rod socket

1шт.

12

842389R1

SHIM

ball socket, stay rod, or as required

1шт.

13

3109613R1

CAP

ball socket, stay rod, Replaces: 842388R1

1шт.

14

842391R1

PLATE

lock, ball socket

3шт.

15

368615R1

SPARE PART extension, front axle

4шт.

102639

NUT,5/8"-11, G5

6шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW cap, hex head, 5/8"-11 x 3-1/2", Course Threads

4шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW cap, hex head, 5/8"-11 x 5", Course Threads

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

6шт.

16

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

Front axle pivot pin

1шт.

16

19628R1

FITTING lub., front axle pivot pin, 1/8"-27 taper drive thread, tractors with front end weights for backhoes

1шт.

17

368604R11

PIN ASSY.,31.55mm OD x 116.84mm L

pivot, front axle

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

18

388477R92

SPARE PART ASSY. front

1шт.

18

388865R93

SPARE PART ASSY. front, tractors with power steering

1шт.

18

393221R92

SPARE PART ASSY. front, 45 to 61" narrow tread

1шт.

18

390917R93

SPARE PART ASSY. front, 49 to 69" narrow tread

1шт.

19

368608R1

BUSHING,31.76mm ID x 34.95mm OD x 53.34mm L

pivot, front axle

1шт.

20

369008R5

BOLSTER

lower

1шт.

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

cap, hex head, 5/8"-11 x 1-7/8"

4шт.

103325

LOCK WASHER,5/8"

4шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Tie rod

4шт.

22

379204R11

ROD

ASSY. tie

2шт.

22

393228R11

ROD

ASSY. tie, 45 to 61" narrow tread

2шт.

22

399292R1

ROD

ASSY. tie, 49 to 69" narrow tread

2шт.

103385

COTTER PIN,1/8" x 1"

2шт.

23

358209R1

COVER

dust, tie rod end

4шт.

24

379203R11

SPARE PART ASSY. tie rod

2шт.

24

393227R11

SPARE PART ASSY. tie rod, 45 to 61" narrow tread

2шт.

24

399290R1

SPARE PART ASSY. tie rod, 49 to 69" narrow tread

2шт.

102635

NUT,3/8"-16, G5

2шт.

102454

LINK

SCREW set, square head oval point, 3/8"-16 x 3/4"

2шт.

138712

THRUST BEARING,50.95mm ID x 74.87mm OD x 16.13mm W

SCREW set, hex socket oval point, 3/8"-16 x 1/2", used only with tube 393227R11

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

cap, hex head, 3/8"-16 x 1-3/4"

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

2шт.

25

356543R1

CLAMP

tie rod

2шт.

102635

NUT,3/8"-16, G5

2шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

cap, hex head, 3/8"-16 x 1-5/8"

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

2шт.

26

356540R91

END

ASSY. tie rod, R.H. thread

2шт.

103385

COTTER PIN,1/8" x 1"

2шт.

27

376347R1

ARM

steering knuckle, L.H.

1шт.

27

379225R1

SPARE PART steering knuckle, L.H., increased clearance axles or 45 to 69" narrow tread axles with 20" ground clearance

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

cap, hex head, 1/2"-13 x 3"

1шт.

28

388480R1

SPARE PART ball socket, stay rod

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

cap, hex head, 5/8"-11 x 2"

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

cap, hex head, 5/8"-11 x 3-1/4"

2шт.

379222R91

SPARE PART PARTS ACCESSORY front, increased clearance, for use with 28" rear wheels

1шт.

Consists of: (1) arm 379225R1, (1) arm 379226R1, (2) extension 379223R91, (2) fitting 125617, (2) knuckle 373890R91, (2) nut 102637, (2) nut 102649, (2) pin 103386, (2) screw 179893, (2) washer 369936R1

1шт.

393220R91

SPARE PART PARTS ACCESSORY front, 45 to 61" narrow tread, 17" ground clearance, tractors without power steering, consists of: (1) axle 393221R91, (2) extension 393225R11, (2) fitting 125617, (2) rod 393226R91

1шт.

393505R91

SPARE PART PARTS ACCESSORY front axle, 45 to 61" narrow tread, 20" ground clearance, tractors without power steering

1шт.

Consists of: (1) arm 379225R1, (1) arm 379226R1, (1) axle 393221R91, (2) extension 393506R91, (2) fitting 125617, (2) knuckle 373890R91, (2) pin 103386, (2) nut 102637, (2) nut 102649, (2) rod 393226R91, (2) screw 179793, (2) washer 369936R1

1шт.

390916R91

SPARE PART PARTS ACCESSORY front, 49 to 69" narrow tread, 17" ground clearance, tractors without power steering, consists of: (1) axle 390917R92, (2) extension 390918R91, (2) fitting 125617, (2) rod 399289R91

1шт.

390804R91

SPARE PART PARTS ACCESSORY front, 49 to 69" narrow tread, 20" ground clearance, tractors without power steering

1шт.

Consists of: (1) arm 379225R1, (1) arm 379226R1, (1) axle 390917R92, (2) extension 390805R91, (2) fitting 125617, (2) knuckle 373890R91, (2) nut 102637, (2) nut 102649, (2) pin 103386, (2) rod 399289R91, (2) screw 179793, (2) washer 369936R1

1шт.
