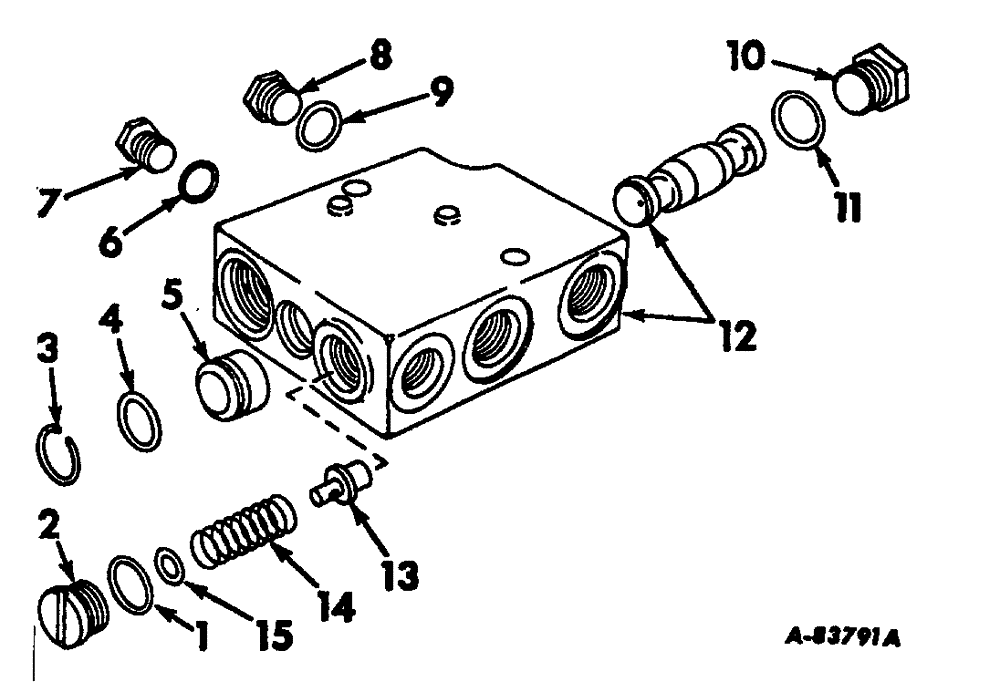

Запчасти Case IH 444 (J-09[01]) - STEERING MECHANISM, FLOW DIVIDER VALVE, TRACTORS WITH POWER STEERING Steering Mechanism

389412R91

SPARE PART FLOW DIVIDER ASSY.

1шт.

1

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

11/16" x 1/2" x 3/32"

1шт.

2

391458R1

PLUG

slotted

1шт.

3

583476R1

SPARE PART lock

1шт.

4

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16" x 3/4" x 3/32"

1шт.

5

583477R1

SPARE PART body

1шт.

6

355967R1

O-RING,0.364" ID x 0.003" Width

3/8" x 1/2" x 1/16"

1шт.

7

391457R1

SPARE PART body

1шт.

8

391456R1

SPARE PART body

1шт.

9

355966R1

O-RING,0.424" ID x 0.103" Width

7/16" x 5/8" x 3/32"

1шт.

10

391455R1

SPARE PART body

1шт.

11

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4" x 15/16" x 3/32"

1шт.

12

NSS

NOT SOLD SEPARAT

BODY flow divider, order flow divider assy. 389412R91

1шт.

13

394653R91

SPARE PART POPPET ASSY.

1шт.

14

394654R2

SPRING

relief valve

1шт.

15

394655R1

WASHER

SHIM relief valve

1шт.

391459R91

SPARE PART service, O-ring, flow divide, consists of: (1) O-ring 352221R1, (1) O-ring 355967R1, (1) O-ring 252707R1, (1) O-ring 355966R1, (1) O-ring 252739R1, (1) ring 583476R1

1шт.
