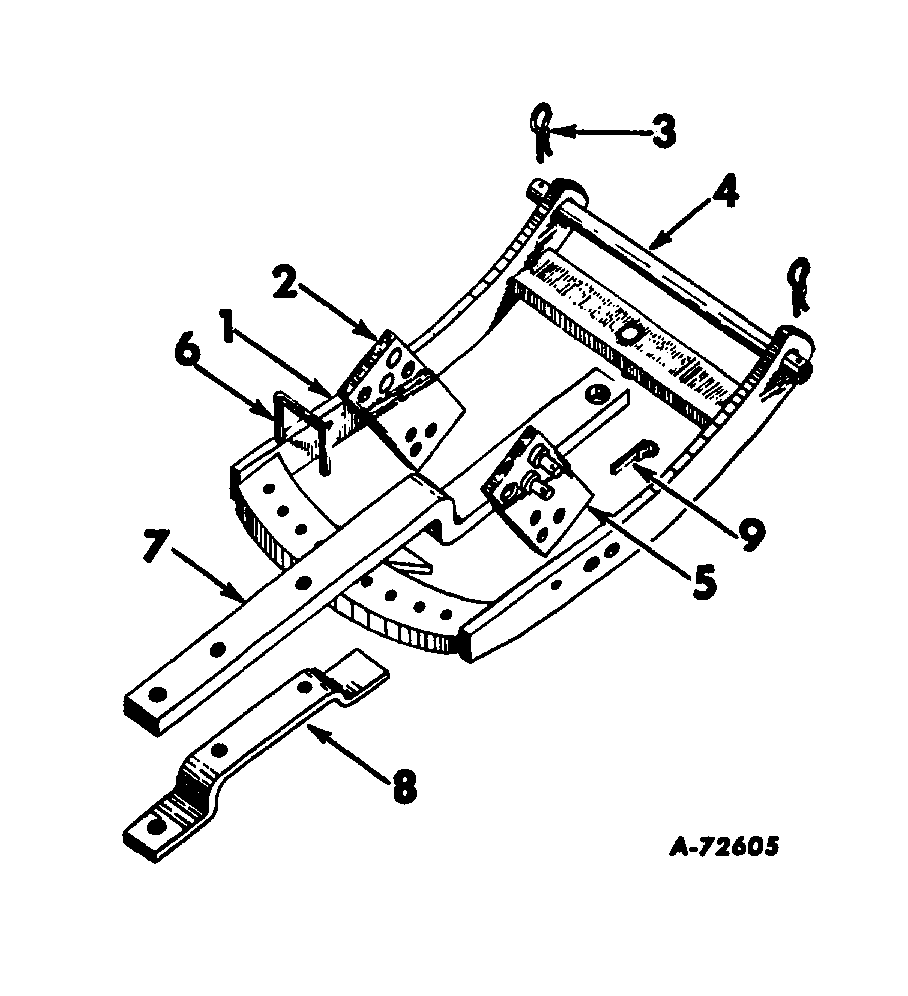

Запчасти Case IH 444 (K-02) - DRAWBARS AND HITCHES, SWINGING DRAWBAR Drawbars & Hitches

ATTACHMENT drawbar, swinging, 3069904R92

1шт.

1

3071327R91

FRAME

ASSY. drawbar

1шт.

425-1012

NUT,3/4"-10, G5

hex, 3/4"-10

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

cap, hex head, 3/4"-10 x 2-1/4"

2шт.

103326

LOCK WASHER,3/4"

2шт.

2

3110213R91

PLATE

SPARE PART ASSY. drawbar support, L.H., Replaces: 3048869R91

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

SCREW cap, hex head, 3/4"-10 x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

2шт.

3

3067210R1

CLIP

spring

2шт.

4

704058R1

PIN

drawbar frame

1шт.

5

3110214R91

PLATE

ASSY. drawbar support, R.H., Replaces: 3048870R91

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

SCREW cap, hex head, 3/4"-10 x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

2шт.

6

3071789R1

NO LONGER SERVICED

PIN stop, swinging drawbar

1шт.

720631R1

LINCH PIN

cotter

1шт.

7

3071321R1

SWINGING DRAWBAR

DRAWBAR swinging

1шт.

102639

NUT,5/8"-11, G5

2шт.

NLS

NO LONGER SERVICED

cap, hex head, 5/8"-11 x 2-1/2"

2шт.

8

704060R3

CLEVIS

drawbar

1шт.

9

517758R91

SPLIT PIN/SAFETY PIN

ASSY. implement

1шт.
