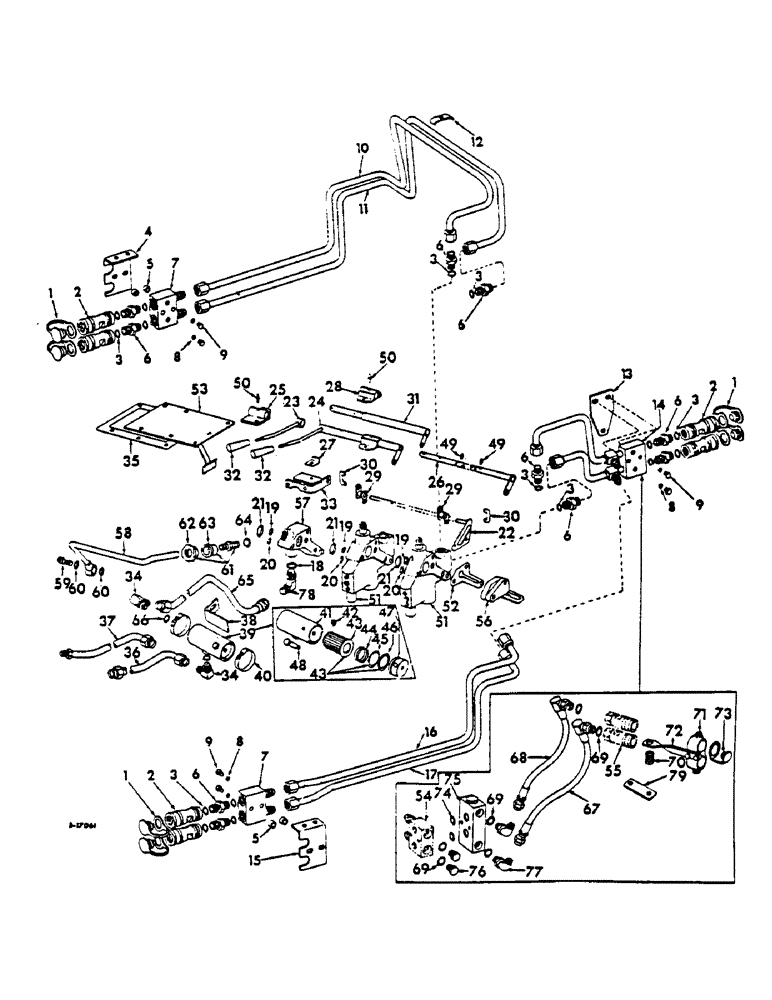

Запчасти Case IH 444 (F-19) - HYDRAULICS SYSTEM, AUXILIARY VALVES AND CONNECTIONS (07) - HYDRAULIC SYSTEM

401804R91

SPARE PART PARTS ACCESSORY single auxiliary, with rear manifold attachment, tractors with manual steering, not used on tractors with backhoe and loader combination, consists of all unmarked parts and those marked unit A

1шт.

401805R91

SPARE PART PARTS ACCESSORY single auxiliary, with rear manifold attachment, tractors with power steering, not used on tractors with backhoe and loader combination, consists of all unmarked parts and those marked unit B

1шт.

401806R91

SPARE PART PARTS ACCESSORY single auxiliary, with rear manifold attachment, tractors with manual steering, check valve and rear breakaway connector, not used on tractors with backhoe and loader combination, consists of all unmarked parts and those marked unit C

1шт.

401807R91

SPARE PART PARTS ACCESSORY single auxiliary, with rear manifold attachment, tractors with power steering, check valve and rear breakaway connector, not used on tractors with backhoe and loader combination, consists of all unmarked parts and those marked unit D

1шт.

401812R91

SPARE PART PARTS ACCESSORY single auxiliary, with rear and L.H. front manifold, tractors with manual steering, consists of all unmarked parts and those marked unit E

1шт.

401813R91

SPARE PART PARTS ACCESSORY single auxiliary, with rear and L.H. front manifold, tractors with power steering, consists of all unmarked parts and those marked unit F

1шт.

401814R91

SPARE PART PARTS ACCESSORY single auxiliary, with rear and L.H. front manifold, tractors with manual steering, check valve and rear breakaway connector, consists of all unmarked parts and those marked unit G

1шт.

401815R91

SPARE PART PARTS ACCESSORY single auxiliary, with rear and L.H. front manifold, tractors with power steering, check valve and rear breakaway connector L, consists of all unmarked parts and those marked unit H

1шт.

401820R91

SPARE PART PARTS ACCESSORY double auxiliary, with rear, L.H. front and R.H. front manifold, tractors with manual steering, consists of all unmarked parts and those marked unit J

1шт.

401821R91

SPARE PART PARTS ACCESSORY double auxiliary, with rear, L.H. front and R.H. front manifold, tractors with power steering, consists of all unmarked parts and those marked unit K

1шт.

401822R91

SPARE PART PARTS ACCESSORY double auxiliary, with rear, L.H. front and R.H. front manifold, tractors with manual steering, check valve and rear breakaway connector, consists of all unmarked parts and those marked unit L

1шт.

401823R91

SPARE PART PARTS ACCESSORY double auxiliary, with rear, L.H. front and R.H. front manifold, tractors with power steering, check valve and rear breakaway connector, consists of all unmarked parts and those marked unit M

1шт.

401826R91

SPARE PART PARTS ACCESSORY double auxiliary, with R.H. front manifold attachment, tractors with manual steering, consists of all unmarked parts and those marked unit N

1шт.

401827R91

SPARE PART PARTS ACCESSORY double auxiliary, with R.H. front manifold attachment, tractors with power steering, consists of all unmarked parts and those marked unit P

1шт.

403338R91

SPARE PART PARTS ACCESSORY single auxiliary, for tractors with draft control without power steering, backhoe or loader, consists of all unmarked parts and those marked unit R

1шт.

403339R91

SPARE PART PARTS ACCESSORY single auxiliary, for tractors with draft control and power steering but without backhoe or loader, consist of all unmarked parts and those marked unit S

1шт.

403342R91

SPARE PART PARTS ACCESSORY auxiliary, for tractors with hydraulic draft control but without power steering loader or backhoe, consists of all unmarked parts and those marked unit T

1шт.

403343R91

SPARE PART PARTS ACCESSORY auxiliary, for tractors with hydraulic draft control and power steering but without backhoe, loader or narrow tread rear axle, consists of all unmarked parts and those marked unit U

1шт.

403344R91

SPARE PART PARTS ACCESSORY second auxiliary, for tractors with or without power steering with hydraulic draft control and without backhoe, loader or narrow tread rear axle, consists of all unmarked parts and those marked unit V

1шт.

ATTACHMENT valve, auxiliary, double-acting, 3069957R91, consists of all parts marked unit W

1шт.

ATTACHMENT valve, auxiliary, double-acting, 3069958R91, consists of all parts marked unit X

1шт.

1

373220R1

PLUG

CAP dust, self-sealing female coupling, hydraulic, 2 for units A thru D, N and P, 4 for units E thru H, 6 for units J thru M

1шт.

2

395150R91

COUPLING, QUICK, FEM

ASSY. self-sealing female, hydraulic, straight thread, only serviceable item is O-ring 385713R1, 2 for units A thru D, N and P, 4 for units E thru H, 6 for units J thru M

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4" x 15/16" x 3/32", 6 for units A thru D, N and P, 10 for units E thru H, 16 for units J thru M

1шт.

4

391475R1

SPARE PART BRACKET mounting, R.H. manifold junction, for units J thru P

1шт.

103026

NUT,3/8"-24, G5

4шт.

16690R1

SCREW machine, cross recess truss head, 3/8"-24 x 7/8"

2шт.

181381

BOLT,Hex, 3/8" - 24 x 2 1/2", Gr 5

SCREW cap, hex head, 3/8"-24 x 2-1/2"

2шт.

103321

LOCK WASHER,3/8"

4шт.

95-11041

WASHER,3/8"

(13/32" x 13/16" x .051")

2шт.

5

556587R1

SPACER

mounting bracket, junction, 2 for units E thru H, N and P, 4 for units J thru M

1шт.

6

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR tube, hydraulic flared, 37°, 7/8"-14 C-Z, 2 for units C and D, 4 for units A, B, N and P, 6 for units E thru H, 8 for units L and M, 10 for units J and K

1шт.

7

381136R91

BLOCK

ASSY. manifold junction, for units E thru H, N and P, 2 for units J thru K

1шт.

8

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2 for units A, B, G, H, N and P, 4 for units E, F, L and M, 6 for units J and K

1шт.

9

9410356

PLUG

straight thread, O-Ring boss, 7/16"-20 C-Z, 2 for units A, B, G, H, N and P, 4 for units E, F, L and M, 6 for units J and K

1шт.

10

401828R1

SPARE PART PIPE ASSY. upper, front, R.H., for units J thru P

1шт.

11

401829R1

SPARE PART PIPE ASSY. lower, front, R.H., for units J thru P

1шт.

12

391478R2

SPARE PART strip, hydraulic manifold pipe, for units J thru P

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Machine, slotted round head

1шт.

103321

LOCK WASHER,3/8"

1шт.

13

391471R1

SPARE PART SUPPORT manifold, rear, for units A thru M

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32" x 1-1/16" x .074"

1шт.

14

391466R91

SPARE PART ASSY. hydraulic, rear, for units A thru M

1шт.

9403373

CAP,37 Degree, 7/8"-14

tube, hydraulic flared, 37°, 7/8"-14 C-Z, 2 for units A thru D

1шт.

103026

NUT,3/8"-24, G5

2шт.

181380

BOLT,Hex, 3/8" - 24 x 2 1/4", Gr 5

SCREW cap, hex head, 3/8"-24 x 2-1/4", 2 for units without check valve and rear breakaway connector

2шт.

103321

LOCK WASHER,3/8"

2шт.

15

391472R1

SPARE PART BRACKET mounting, manifold junction, for units E thru M

1шт.

103026

NUT,3/8"-24, G5

4шт.

16690R1

SCREW machine, cross recess truss head, 3/8"-24 x 7/8"

2шт.

181384

BOLT,Hex, 3/8" - 24 x 2 3/4"

SCREW cap, hex head, 3/8"-24 x 2-3/4"

2шт.

103321

LOCK WASHER,3/8"

4шт.

95-11041

WASHER,3/8"

(13/32" x 13/16" x .051")

2шт.

16

391473R11

SPARE PART PIPE ASSY. upper, front, L.H., for units E thru M

1шт.

17

391474R11

SPARE PART PIPE ASSY. lower, front, L.H., for units E thru M

1шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4" x 15/16" x 3/32", all except unit V

1шт.

19

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

O, 7/16" x 5/8" x 3/32", 2 for units A thru H, R, S and V, 3 for units J thru P, T and U

1шт.

20

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8" x 9/16" x 3/32", 2 for units A thru H, R, S and V, 3 for units J thru P, T and U

1шт.

21

395312R1

GASKET

static, 2 for units A thru H, R, S and V, 3 for units J thru P, T and U

1шт.

22

390002R91

SPARE PART ASSY. control lever, units A thru H, R and S

1шт.

22

390003R91

SPARE PART ASSY. control lever, units J thru P, T, U and V

1шт.

22

3061063R11

BRACKET control lever, units W and X

1шт.

3063983R1

HEADED PIN,5/16" x 1"

standard head, , unit W and 2 for unit X 5/16" x 1"

1шт.

23

390006R11

SPARE PART ASSY. linkage actuating, all except unit V

1шт.

24

390008R21

SPARE PART PIPE ASSY. linkage, units J thru P, T, U and V

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

25

390016R21

SPARE PART ASSY. linkage, all except unit V

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

26

390018R11

SPARE PART ASSY. linkage, units J thru P, T, U and V

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

3/16" x 1 1/4", Coiled

3шт.

Q3501

WASHER

1-1/4" x 25/32" x 16 gauge

2шт.

27

401799R1

SPARE PART STOP safety, seat bracket, all except unit V

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

28

391965R21

SPARE PART ASSY. linkage

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

29

392555R91

ARM

ASSY. pivot, 1 for units A thru H, R, S and V, 2 for units J thru P, T and U

1шт.

39374D

CLEVIS PIN,5/16" x 1 1/16"

standard head, 5/16" x 1-1/16", 1 for units A thru H, 2 for units J thru P

1шт.

103384

COTTER PIN,1/8" x 3/4"

1 for units A thru H, 2 for units J thru P

1шт.

30

390021R1

SPARE PART connecting, 1 for units A thru H, R, S and V, 2 for units J thru P, T and U

1шт.

103373

COTTER PIN,3/32" x 3/4"

2 for units A thru H; 4 for units J thru P

1шт.

95-11041

WASHER,3/8"

(13/32" x 13/16" x 16 ga), 2 for units A thru H, 4 for units J thru P

1шт.

31

390014R11

SPARE PART ASSY. pivot, units A thru H, R and S

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

3/16" x 1 1/4", Coiled

2шт.

Q3501

WASHER

1-1/4" x 25/32" x 16 gauge

1шт.

32

388634R1

GRIP

lever, 1 for units A thru H, R, S and V, 2 for units J thru P, T and U

1шт.

33

391938R91

SPARE PART SUPPORT AND SHIELD ASSY. auxiliary valve, all except unit V

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

cap, hex head, 1/2"-13 x 3"

2шт.

34

391960R91

ELBOW UNION,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Union Elbow connector, adj. filter, 90°, all except unit V

2шт.

35

3044367R2

GASKET

cover plate, top, all except unit V

1шт.

36

391962R11

TUBE

PIPE ASSY. flow divider to filter, tractors with power steering

1шт.

37

391957R11

SPARE PART ASSY. hose to filter, tractors with manual steering

1шт.

38

391959R1

SPARE PART BRACKET support, filter, all except unit V

1шт.

102635

NUT,3/8"-16, G5

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex head, 3/8"-16 x 1-3/8", units A thru H

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Units J thru P

1шт.

103321

LOCK WASHER,3/8"

1шт.

39

391958R91

SPARE PART ASSY. oil, hydraulic, all except unit V

1шт.

40

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

adjustable, worm-type, all except unit V

2шт.

41

392529R91

BARREL ASSY. filter

1шт.

42

18253R1

LOCK NUT,3/8"-16, GB

bolt, filter

1шт.

43

392532R91

KIT

PACKAGE service, filter and O-ring

1шт.

44

392528R1

SPRING filter element

1шт.

45

343904R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 6, 90 Duro

1-13/16" x 2-3/32"

1шт.

46

392533R1

SPARE PART back-up

1шт.

47

392530R1

SPARE PART removable end

1шт.

48

392531R1

SPARE PART filter

1шт.

49

378331R1

RING

sealing, linkage rod, 2 for units J thru P

1шт.

50

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1 for units A thru H, R and S, 2 for units J thru P, T and U

1шт.

51

3069020R92

CONTROL VALVE

VALVE ASSY. auxiliary, double-acting, for components see list of parts under details of double-acting auxiliary valve, 1 for units A thru H, R, S, V and W, 2 for units J thru P, T, U and X

1шт.

52

3061055R2

GASKET

plate, valve cover

1шт.

53

3044366R12

PLATE

ASSY. top cover, all except unit V

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

8шт.

54

MANIFOLD ASSY. rear, refer to Ref. 14 for position

1шт.

55

COUPLING ASSY. self-sealing, hydraulic, refer to Ref. 2 for reference

1шт.

56

3069021R1

PLATE

valve cover, all except unit V

1шт.

186289

BOLT,Hex, 3/8" - 16 x 5", Gr 5

SCREW cap, hex head, 3/8"-16 x 5", 2 for units A thru H

1шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

cap, hex head, 3/8"-16 x 4-1/4", units A thru H

1шт.

20507R1

BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5

SCREW cap, hex head, 3/8"-16 x 6-3/4"

1шт.

186290

BOLT (SPREADER)

SCREW cap, hex head, 3/8"-16 x 6"

1шт.

103321

LOCK WASHER,3/8"

3шт.

57

3069943R1

SPARE PART adapter, all except unit V

1шт.

58

3069024R11

PIPE

ASSY. pressure, all except unit V

1шт.

59

3069026R1

BOLT,1/2" BSP x 2"

banjo, all except unit V

1шт.

60

704337R1

SEALING WASHER

WASHER banjo bolt, all except unit V

2шт.

61

3069027R91

COUPLING, BREAK AWAY

ASSY. pressure pipe, all except unit V

1шт.

62

3069907R1

SPARE PART pressure pipe

1шт.

63

3069908R1

SPARE PART pressure pipe

1шт.

64

704337R1

SEALING WASHER

WASHER connector, pressure pipe, all except unit V

1шт.

65

400274R1

SPARE PART PIPE ASSY. filter to auxiliary valve, all except unit V

1шт.

66

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64" x 13/16" x 5/64", all except unit V

2шт.

67

392411R91

SPARE PART ASSY. upper, hydraulic, 1/2" ID x 17" long, for units C, D, G, H, L and M

1шт.

68

392412R91

SPARE PART ASSY. lower, hydraulic, 1/2" ID x 19" long, for units C, D, G, H, L and M

1шт.

69

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4" x 5/16" x 3/32", for units C, D, G, H, L and M

6шт.

70

353213R2

SPRING

coupling frame, self-sealing, for units C, D, G, H, L and M

1шт.

71

379030R91

FUNNEL

FRAME ASSY. coupling, self-sealing, for units C, D, G, H, L and M

1шт.

102635

NUT,3/8"-16, G5

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

cap, hex head, 3/8"-16 x 1-3/4"

1шт.

95-11041

WASHER,3/8"

(13/32" x 13/16" x .051")

1шт.

492-11025

LOCK WASHER,1/4"

2шт.

72

379031R1

BRACKET

coupling frame, self-sealing, for units C, D, G, H, L and M

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

cap, hex head, 5/16"-18 x 1-1/2" C-Z

2шт.

73

373220R1

PLUG

CAP dust, self-sealing coupling, hydraulic, for units C, D, G, H, L and M

2шт.

74

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

check valve seal, 5/8" x 13/16" x 3/32", for units C, D, G, H, L and M

2шт.

75

374083R92

VALVE

ASSY. check, double-acting, for components see list of parts under details of double acting check valve, for units C, D, G, H, L and M

1шт.

186311

LOCK SCREW

cap, hex head, 3/8"-24 x 3-3/4"

2шт.

76

9410360

PLUG

straight thread, O-ring boss, junction block port, 7/8"-14, for units C, D, G, H, L, M, W, and X

2шт.

77

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8"-14, 37° hyd. flared tube adj. straight thread, 90 °, for units C, D, G, H, L and M

2шт.

78

399651R1

SPARE PART 7/8"-14, 37° hyd. flared tube adj. straight thread, 90 °, all except unit V

1шт.

79

521571R1

SPARE PART PLATE support, manifold, for units C, D, G, H, L and M

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

3110307R91

O-RING

PACKAGE between auxiliary valve and lift housing, (1) O-ring 380794R1, (1) retainer 3110297R1

1шт.
