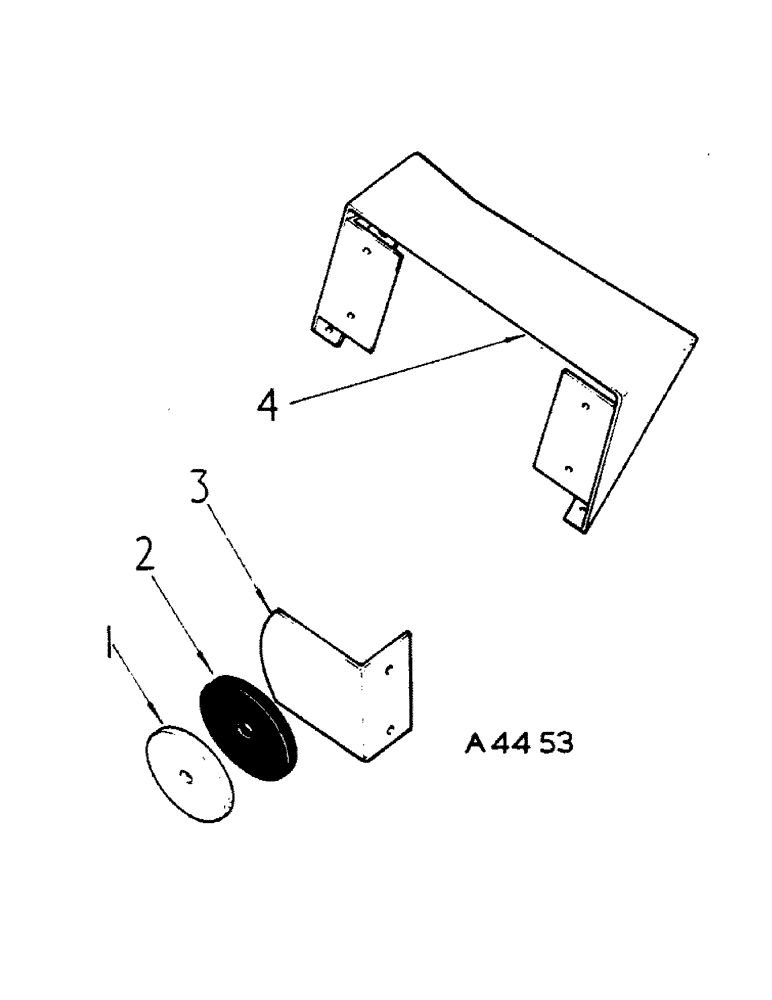

Запчасти Case IH 444 (3-30) - REFLECTORS AND BRACKETS, AUSTRIAN MARKET (04) - ELECTRICAL SYSTEMS

(DE-LUXE LIGHTING FOR MACHINES W/FLAT TOP FENDERS ONLY)

1шт.

1

3112360R91

REFLECTOR

2шт.

2

3112361R1

PAD, reflector

2шт.

171656

SCREW

6-32 x 1/2 C-Z pan hd tap type D

2шт.

3

3114120R1

BRACKET

reflector

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 1 hex hd

4шт.

219420

NUT, 1/4 hex

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

3114114R1

BASE, assy, light mounting L.H.

1шт.

3114115R1

BASE, assy, light mounting R.H.

1шт.

169734

OIL SEAL

SCREW, No.10-24 x 3/8 type C self tap (De-luxe lighting for machines w/Flat Top Fender 3114124R1 or 3114125R1)

8шт.
