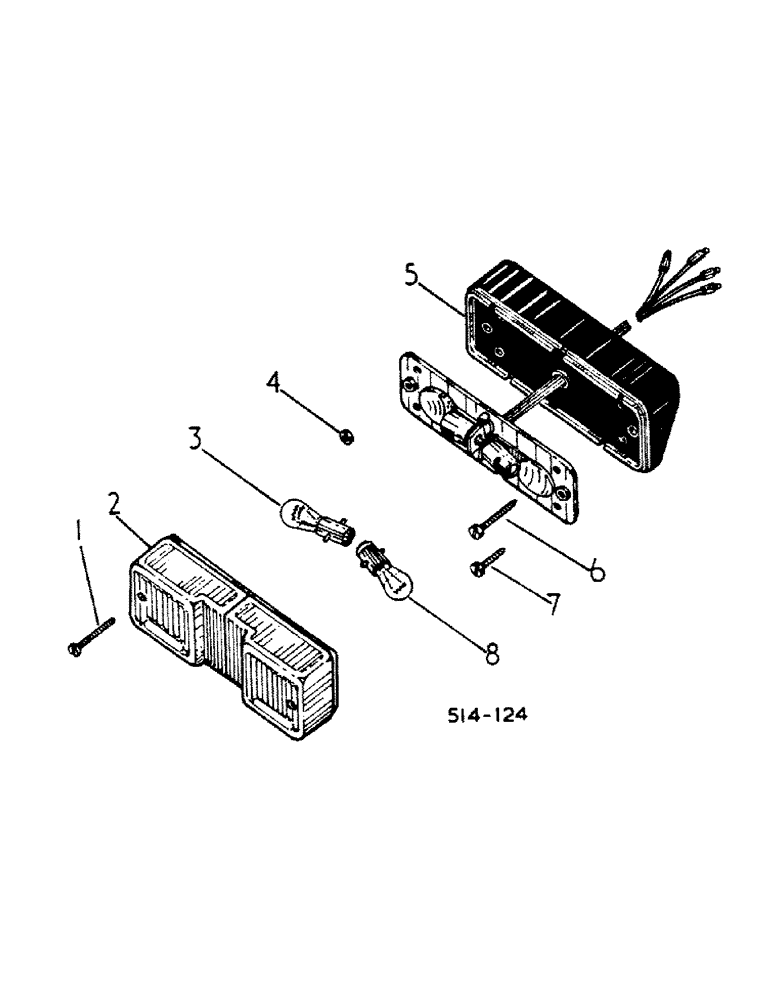

Запчасти Case IH 444 (3-29) - STOP/TAIL AND TRAFFICATOR LAMP, AUSTRIAN AND DE-LUXE LIGHTING (04) - ELECTRICAL SYSTEMS

(FOR MACHINES W/FLAT TOP FENDERS ONLY)

1шт.

3112333R91

LAMP, stop/tail and trafficator - consists of: Used w/machines fitted w/Light Mtg. Base Assy 3114114R1 or 3114115R1 (See Reflector and Brackets) Order lamp 3113203R91. L.H. or 3113204R9 R.H. or both

2шт.

1

3112785R1

SCREW

4BA x 1-1/2 zinc pltd

4шт.

2

3112692R1

LENS

red/amber

2шт.

3

894878H1

BULB

LAMP, 12v 21-5w sbc bulb

2шт.

4

3112786R1

WASHER

RING, retaining

4шт.

5

CUSHION, black rubber 20degree

2шт.

6

3112705R1

SCREW, No. 10-16 x 1-3/4 pan hd std

4шт.

7

24247R1

SCREW

No.10-16 x 7/8 pan hd std

4шт.

8

3025210R91

BULB

LAMP, 12v 21w scc

2шт.
