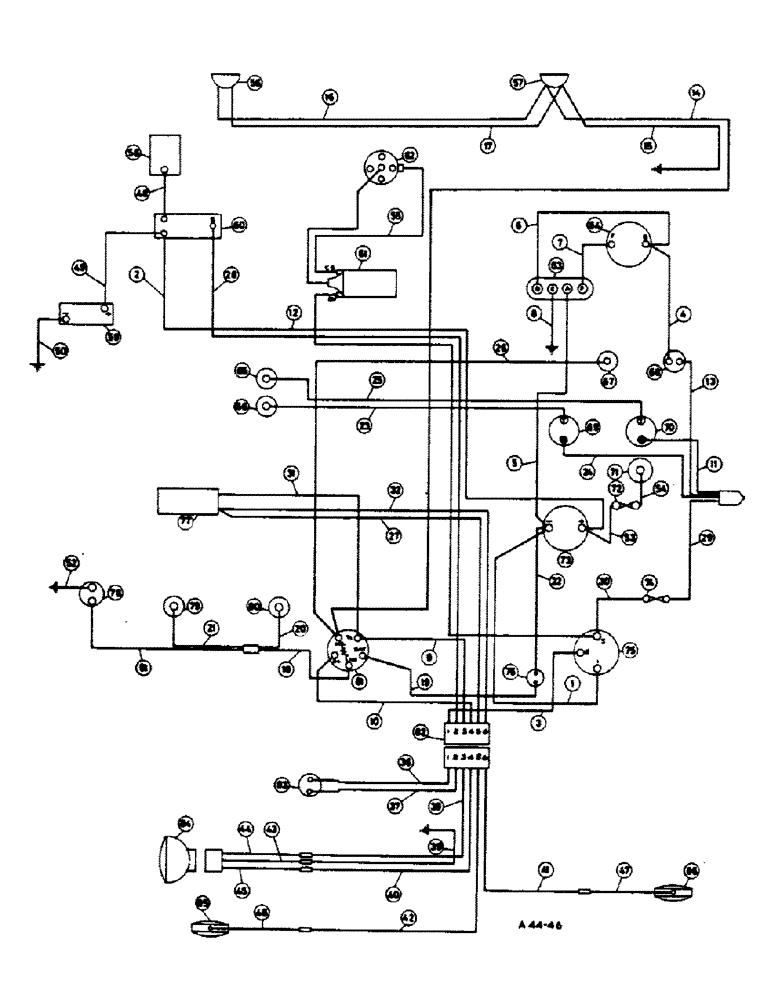

Запчасти Case IH 444 (3-21) - ELECTRICAL SYSTEM, PETROL (04) - ELECTRICAL SYSTEMS

3112768R91

WIRE HARNESS

HARNESS, main cable comprising:

1шт.

1

CABLE, ammeter - term to key switch term 1. (Brown/Blue)

1шт.

2

"CABLE, starter solenoid to ammeter + term" (Red)

1шт.

3

"CABLE, rear connections to key switch" term.2. (Red/Black)

1шт.

4

"CABLE, generator warning light to generator" 'D' term (Brown/Yellow)

1шт.

5

"CABLE, regulator 'A' to ammeter -term" (Brown/White)

1шт.

6

"CABLE, regulator 'D' to generator 'D'" (Brown/Yellow)

1шт.

7

"CABLE, regulator 'F' to generator 'F'" (Brown/Green)

1шт.

8

"CABLE, regulator 'E' to earth" (Black)

1шт.

9

"CABLE, light switch term 'TL' to rear conns" '3' (Red)

1шт.

10

"CABLE, light switch term 'RL' to rear" conns. '4' (Red/White)

1шт.

11

"CABLE, splice to ferrule to heat indicator" term 'B' (Green)

1шт.

12

"CABLE, key switch term '3' to ignition" coil term S.W. (White)

1шт.

13

"CABLE, generator warning light to splice" ferrule (Green)

1шт.

14

"CABLE, light switch term 'HL' to R.H." headlamp feed (Blue/Red)

1шт.

15

"CABLE, R.H. headlamp earth to earth" (Black)

1шт.

16

"CABLE, R.H. headlamp feed to L.H." headlamp feed (Blue/Red)

1шт.

17

"CABLE, R.H. headlamp earth to L.H." headlamp earth (Black)

1шт.

18

"CABLE, light switch term 'INST' to panel" light conn. (Red/Blue)

1шт.

19

"CABLE, light switch term 'B' to aux. fuse" (Purple)

1шт.

20

"CABLE, panel light holder No. 2. to panel" light conn. (Red/Blue)

1шт.

21

"CABLE, panel light holder No. 1. to panel" light conn. (Red/Blue)

1шт.

22

"CABLE, aux. fuse supply to ammeter -term" (Brown/Blue)

1шт.

23

"CABLE, fuel gauge term 'T' to transmitter" (Green/Black)

1шт.

24

"CABLE, fuel gauge term 'B' to splice" ferrule (Green)

1шт.

25

"CABLE, heat indicator term 'T' to" transmitter (Green/Blue)

1шт.

26

"CABLE, light switch term 'HL' to headlamp" warning light (Blue/Red)

1шт.

27

"CABLE, flasher unit to rear conns. '5'" (Brown)

1шт.

28

"CABLE, rear conns '2' to starter solenoid" (White/Red)

1шт.

29

"CABLE, line fuse to splice ferrule" (Green)

1шт.

30

"CABLE, line fuse to key switch term '3'" (White)

1шт.

31

"CABLE, flasher unit to light switch term" 'TL' (Red)

1шт.

32

"CABLE, flasher unit to rear conns '6'" (Brown) Ref. Nos. 33 to 35 not used

1шт.

3112761R91

HARNESS

"HARNESS, rear cable" comprising:

1шт.

36

"CABLE, safety start switch to rear" connections '1' (Red/Black)

1шт.

37

"CABLE, safety start switch to rear" connections '2' (White/Red)

1шт.

38

"CABLE, rear conns '3' to LH fender conns." (Red)

1шт.

39

"CABLE, LH fender conns to earth" (Black)

1шт.

40

"CABLE, rear connections '4' to LH fender" conns. (Red/White)

1шт.

41

"CABLE, rear connections '6' to R.H." fender conns. (Brown)

1шт.

42

"CABLE, rear conns '5' to LH fender conns" (Brown)

1шт.

3112762R91

HARNESS

"HARNESS, plough lamp" comprising:

1шт.

43

"CABLE, LH fender conns to combination" light adaptor (Black)

1шт.

44

"CABLE, LH fender conns to combination" light adaptor (Red)

1шт.

45

"CABLE, LH fender conns to combination" light adaptor (Red/White) "CABLE, assy., flasher lamp"comprising:

1шт.

46

"CABLE, L.H. flasher lamp to connector" (Black)

1шт.

47

"CABLE, R.H. flasher lamp to connector" (Black)

1шт.

48

3112767R91

CABLE

"CABLE, starter solenoid to starter terminal" (PVC sheath)

1шт.

49

3112766R91

CABLE

"CABLE, battery '+' to starter solenoid" (PVC sheath)

1шт.

50

3112763R91

CABLE

"CABLE, battery' to earth (PVC sheath)" "CABLE, assy., tractormeter light" comprising:

1шт.

51

"CABLE, tractormeter light to connector" (Red)

1шт.

52

"CABLE, tractormeter light to earth" (Black) "CABLE, assy., cigar lighter"comprising:

1шт.

53

"CABLE, ammeter + term to in line fuse" (White/Green)

1шт.

54

"CABLE, cigar lighter to in line fuse" (White/Green)

1шт.

55

"CABLE, distributor to ignition coil term 'CB'"(White/Black)

1шт.

56

"HEADLAMP, L.H. (See detail list)"

1шт.

57

"HEADLAMP, R.H."

1шт.

58

"MOTOR, starter (See detail list)"

1шт.

59

BATTERY

1шт.

60

"SWITCH, starter solenoid See ELECTRICAL INSTRUMENTS

1шт.

61

"COIL, ignition (engine) (See Ignition)"

1шт.

62

DISTRIBUTOR (Engine) (See detail list)

1шт.

63

"REGULATOR, (See Regulator and Heat Shield)"

1шт.

64

GENERATOR (See detail list)

1шт.

65

"TRANSMITTER, heat indicator See ELECTRICAL INSTRUMENTS

1шт.

66

"TRANSMITTER, fuel See ELECTRICAL INSTRUMENTS

1шт.

67

"LIGHT, headlamp warning See ELECTRICAL INSTRUMENTS

1шт.

68

"LIGHT, generator warning See ELECTRICAL INSTRUMENTS

1шт.

69

"GAUGE, fuel See ELECTRICAL INSTRUMENTS

1шт.

70

"INDICATOR, heat See ELECTRICAL INSTRUMENTS

1шт.

71

"LIGHTER, cigar"

1шт.

72

"FUSE, in-line"

1шт.

73

AMMETER See ELECTRICAL INSTRUMENTS

1шт.

74

"FUSE, in-line"

1шт.

75

"SWITCH, key See ELECTRICAL INSTRUMENTS

1шт.

76

"FUSE, aux."

1шт.

77

"UNIT, flasher See ELECTRICAL INSTRUMENTS

1шт.

78

"LIGHT, tractormeter See ELECTRICAL INSTRUMENTS

1шт.

79

"LIGHT, panel No.1."

1шт.

80

"LIGHT, panel No.2."

1шт.

81

"SWITCH, light"

1шт.

82

"CONNECTOR, 6 way"

1шт.

83

"SWITCH, safety start See ELECTRICAL INSTRUMENTS

1шт.

84

"LAMP, plough and tail" (See sealed beam combination tail and rear lamp)

1шт.

85

LAMP, flasher LH (See flasher light)

1шт.

86

LAMP, flasher R.H. (See flasher light)

1шт.

708113R1

CLIP

cable

3шт.

708114R1

CLIP, cable

4шт.

708115R1

PLATE ASSY.

CLIP, cable

7шт.

708117R1

NO LONGER SERVICED

CLIP, cable

3шт.

537025R1

CLIP

panel harness

1шт.

3072761R1

STRAP

PING, cable

1шт.

3066369R1

STUD

nylon

3шт.

3040887R91

CONDUIT, cpte., cable L.H.

1шт.

3112300R1

CONDUIT, cpte., cable front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

117974

GROMMET, 3/8" fender - cable entry

2шт.

117959

GROMMET,5/16" ID x .719" x .062"

fender

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex. hd. 3/8 x 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Attaching hardware for clips on rear hyd, lift housing 3/8"

2шт.
