(3-14[A]) - FLASHER LIGHT, AUSTRIAN AND DE-LUXE LIGHTING USED WITH SAFETY CAB OR FRAME ONLY)

Запчасти Case IH 444 (3-14[A]) - FLASHER LIGHT, AUSTRIAN AND DE-LUXE LIGHTING USED WITH SAFETY CAB OR FRAME ONLY) (04) - ELECTRICAL SYSTEMS

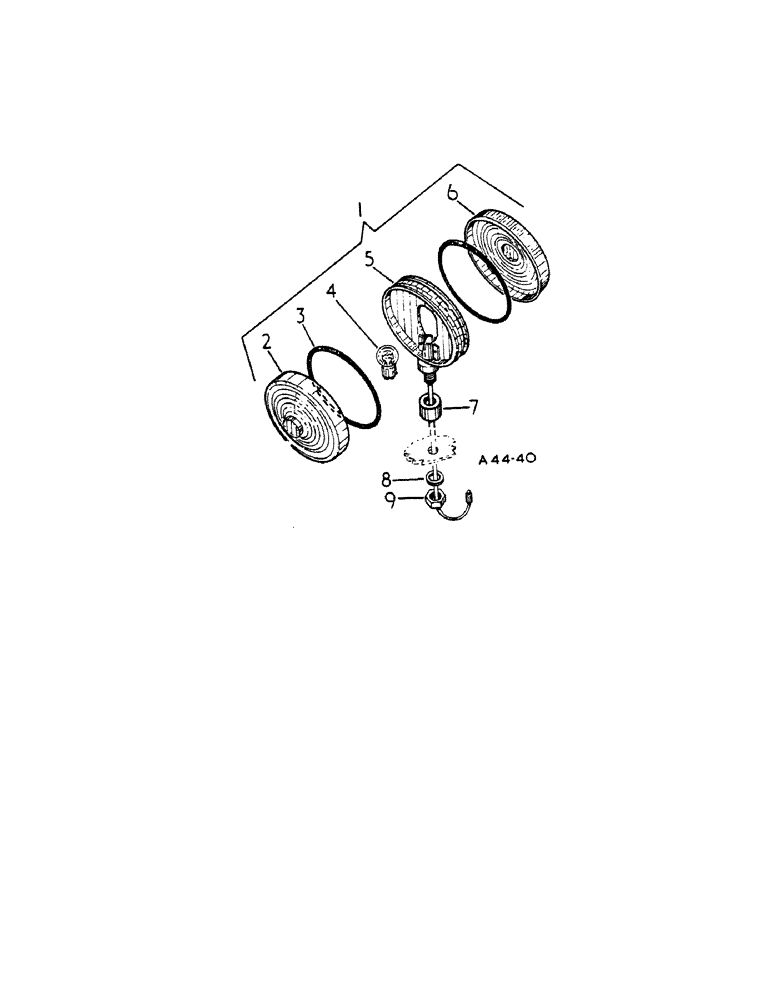

Схема запчастей Case IH 444 - (3-14[A]) - FLASHER LIGHT, AUSTRIAN AND DE-LUXE LIGHTING USED WITH SAFETY CAB OR FRAME ONLY) (04) - ELECTRICAL SYSTEMS
9
3
7
1
5
6
2
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

531627R91

INDICATOR LIGHT

LIGHT, flasher

2шт.

2

3112682R1

LENS

amber front

4шт.

3

899282R1

O-RING

'O' RING, rubber sealing

8шт.

4

3025210R91

BULB

12v 21w SCC

4шт.

5

BODY, assy.

4шт.

6

3112683R1

LENS

amber rear

4шт.

7

3073103R1

SPACER

2шт.

8

131718

SHIM

7/16" locking

1шт.

9

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

UPTO

444 - B011781 2350 - B000503 EXPORT 2350 - B000757 UK

1шт.
