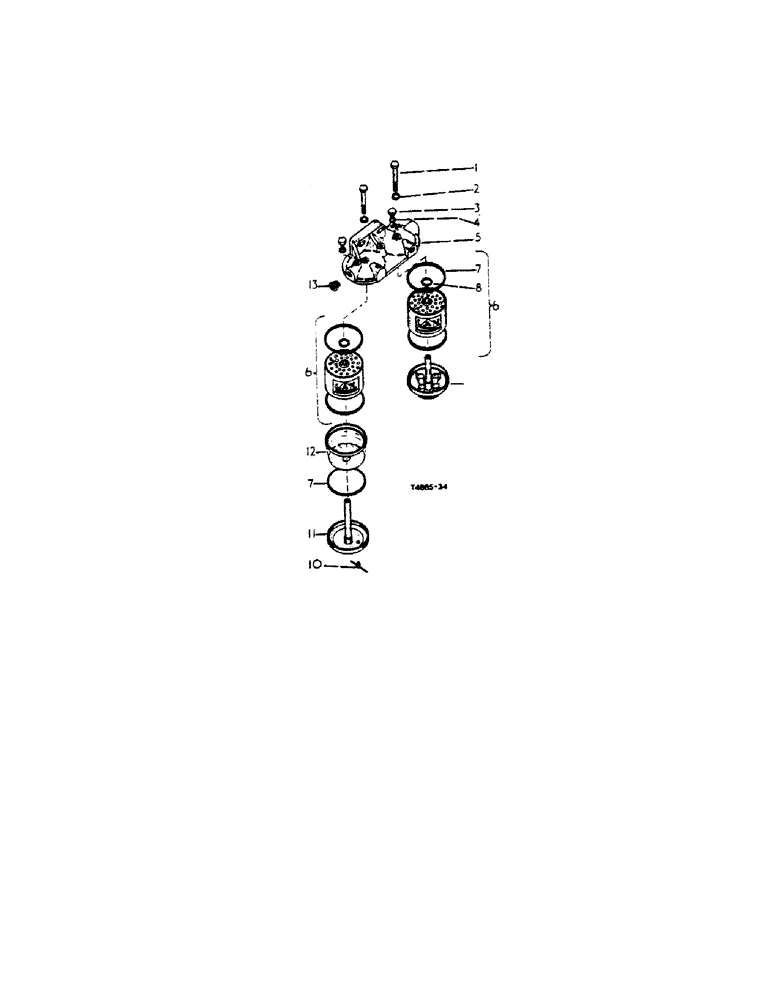

Запчасти Case IH 444 (6-64[A]) - FUEL FILTER AGGLOMERATOR (03) - FUEL SYSTEM

3069608R91

FILTER

AGGLOMERATOR, fuel filter comprising:

1шт.

1

3070771R2

BOLT

centre

2шт.

2

3044504R1

WASHER

centre bolt

2шт.

3

3070770R1

PLUG

small vent

2шт.

4

3049111R1

SEALING WASHER

vent plug

2шт.

5

3070773R1

FILTER HEAD

COVER Order FILTER HEAD 3117034R91

1шт.

6

3044506R93

FILTER, FUEL

ELEMENT assy

2шт.

7

3105001R1

SEAL

WASHER, cover and base

4шт.

8

3044505R1

SEAL

RING, element seal

2шт.

9

3070774R91

BASE

filter

1шт.

10

3072558R1

PLUG

drain

1шт.

3072559R1

WASHER

drain plug

1шт.

11

3069612R91

BASE

assy., agglomerator

1шт.

12

3069610R1

BOWL

BODY, agglomerator

1шт.

13

3070775R1

ADAPTER

ADAPTOR, inlet and outlet

1шт.

(18mm - 1/2" UNF)

2шт.

3111731R1

WASHER

adaptor

1шт.
