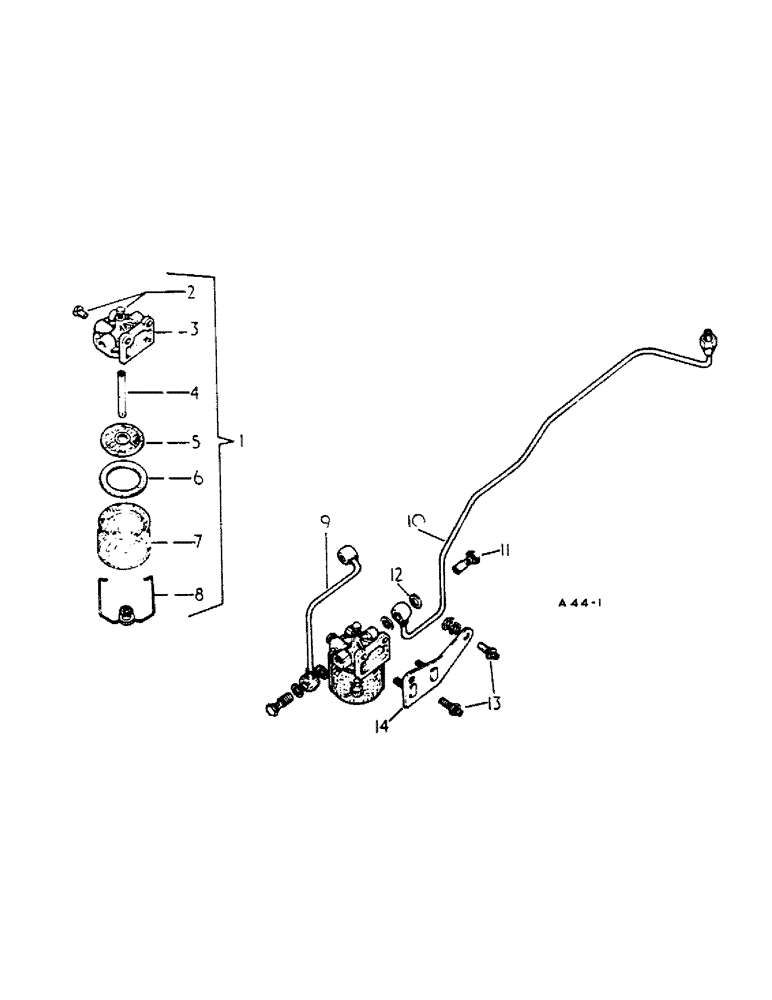

Запчасти Case IH 444 (4-14) - WATER TRAP (03) - FUEL SYSTEM

1

3041141R92

TRAP

water, cpte., comprising:

1шт.

2

3042738R1

SCREW

water trap valve

2шт.

3

3062465R1

CAP

TOP, water trap

1шт.

4

3042740R1

SCREEN

tubular, water trap

1шт.

5

3042902R1

FILTER

GAUZE, water trap filter

1шт.

6

3042901R1

GASKET

water trap

1шт.

7

3042900R1

BOWL

galss, water trap

1шт.

8

3042739R91

CLAMP

BALE, assy., water trap

1шт.

9

3069923R91

PIPE

fuel cpte., water trap to fuel pump

1шт.

10

3112132R92

PIPE

fuel, cpte., tap to water trap

1шт.

11

3070324R1

BOLT,1/2" - 20 x 1.067"

banjo Opt.

2шт.

11

708296R1

CONNECTOR, ELEC

BOLT, banjo Opt.

2шт.

12

708297R1

GASKET

WASHER, banjo bolt

4шт.

13

3069920R1

STUD

water trap, mounting

2шт.

103026

NUT,3/8"-24, G5

3/8-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

3069918R11

BRACKET

water trap mounting, cpte.

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

UPTO

0001-B014181 0003-B005704 0004-B000503 0005-B000782 0006-B000516 0007-B000588

1шт.
