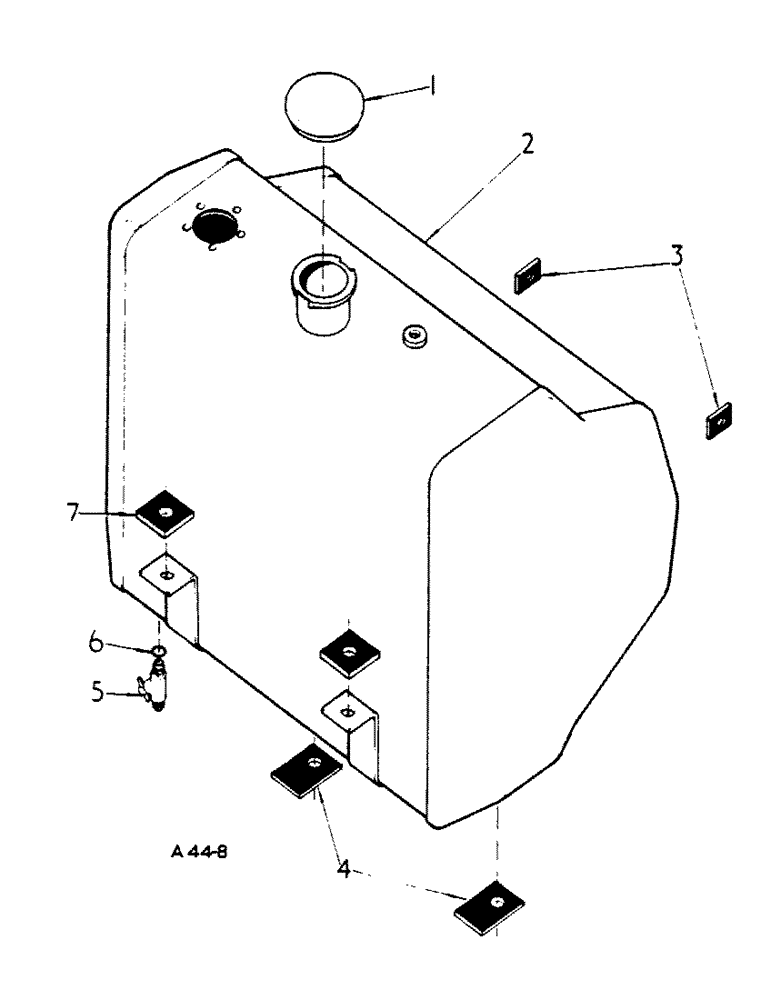

Запчасти Case IH 444 (4-13) - FUEL TANK (03) - FUEL SYSTEM

1

707822R93

FILLER CAP

CAP, fuel tank filler

1шт.

3112648R1

BLOCK

SEAL, fuel tank filler neck

1шт.

2

3112004R2

FUEL TANK

TANK, cpte. fuel

1шт.

3

3112128R1

PAD

fuel tank to rear support mtg

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(.406 x .81 x .051) 3/8"

2шт.

4

3112129R1

PAD

fuel tank support

2шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

hex hd 7/16 x 3/4

2шт.

NLS

NO LONGER SERVICED

15/32 x 59/64 x .051

2шт.

5

3064222R91

VALVE

TAP, cpte. fuel

1шт.

6

3045115R1

RING

O RING, 11/32 x 15/32

1шт.

7

3112130R1

PAD

fuel tank to battery tray mtg.

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

128145

WASHER

7/16" x 1-3/8" x .064" plain

2шт.

128145

WASHER

7/16" x 1-3/8" x .064" (Petrol and Diesel Canada)

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

LH side (Petrol and Diesel Canada) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

RH side (Petrol and Diesel Canada) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

95-11041

WASHER,3/8"

(.406 x .81 x .051) 3/8"

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16" x 1/2" (Petrol)

1шт.

3070933R1

BOLT,5/16" - 18 x 0.88"

banjo (Spill pipe fixing to Fuel Tank) (Diesel)

1шт.

751876

WASHER, sealing (2) (Diesel)

1шт.

751876

WASHER, sealing (Petrol)

1шт.
