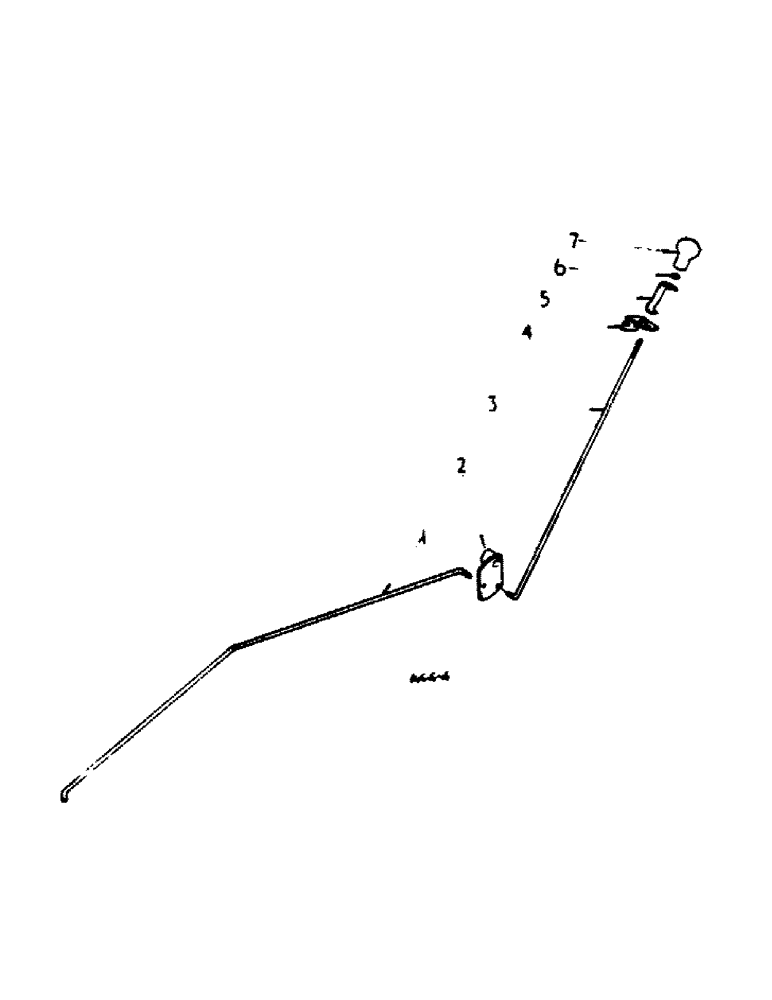

Запчасти Case IH 444 (4-08) - FUEL SHUT-OFF CONTROLS, DIESEL (03) - FUEL SYSTEM

1

3112047

ROD, shut-off, Serial Range: lever-governor

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16" x 1/2"

2шт.

446160

WASHER,#10

7/32" x 7/16" x 18 ga. plain

2шт.

2

3112042R1

LEVER

cpte., fuel shut off

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32" x 13/16" x .051" plain

1шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

3

3112045R1

ROD

stop, Serial Range: control-lever

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16" x 1/2"

1шт.

446160

WASHER,#10

7/32" x 7/16" x 18 ga.

1шт.

4

3070483R1

BRACKET

engine stop control

1шт.

181312

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5

hex. hd. 1/4" UNF x 11/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

3066382R1

SPRING

engine stop control

1шт.

6

706216R1

NUT

hex. 2BA

1шт.

7

3066381R1

KNOB

engine stop control

1шт.
