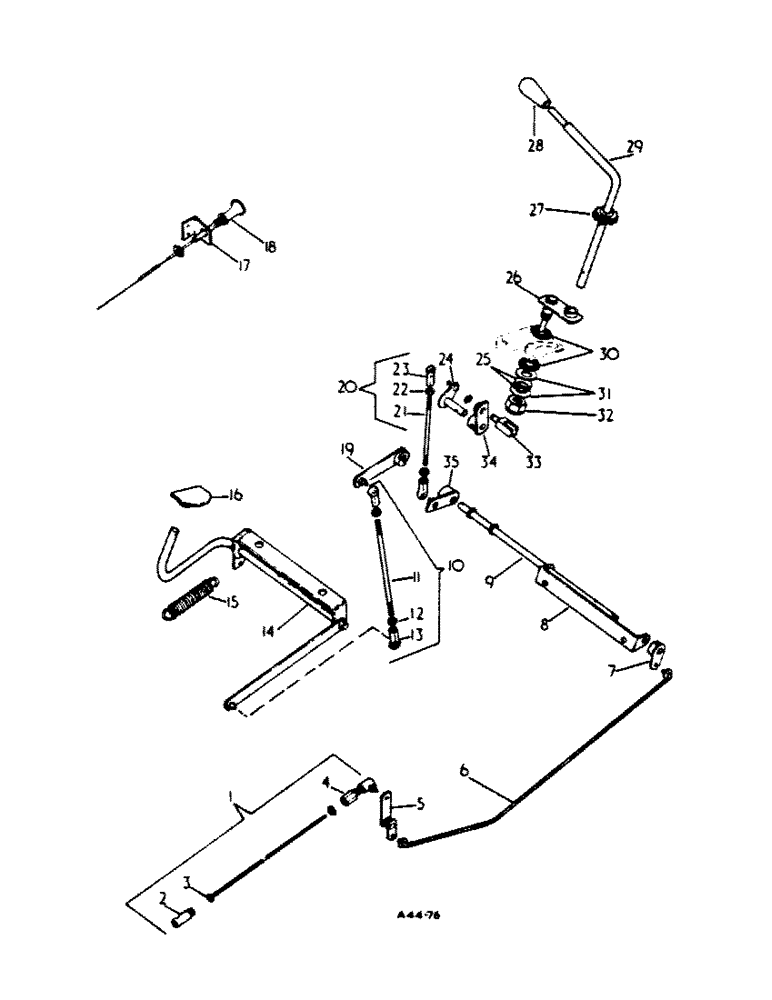

Запчасти Case IH 444 (4-36) - GOVERNOR CONTROLS AND FOOT ACCELERATOR, PETROL (02) - ENGINE

1

3112748R91

ROD

cpte., governor to bell crank lever comprising:

1шт.

2

3062511R91

JOINT

ball, Serial Range: governor-bell

1шт.

3

114492

JAM NUT,Jam, 1/4"-28, G5

1/4" UNF

2шт.

4

3109941R92

END

adj. control rod

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4" hex. jam High Idle Adj. Stop

1шт.

225506

DRIVING SPROCKET,Slotted Fillister Hd, 1/4" - 28 x 1 1/2"

SCREW, 1/4" x 1-1/2 fill hd High Idle Adj. Stop

1шт.

5

3112744R2

LEVER

cpte., bell crank

1шт.

6

3112750R1

ROD, cpte., cross shaft to bell crank

1шт.

7

3114217R1

LEVER

cpte., cross shaft

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

8

3112088R1

BRACKET

cross shaft support

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

3112089R1

SHAFT

cross cpte., governor control

1шт.

10

3112050R91

ROD

control cpte., foot accelerator comprising:

1шт.

11

ROD, control foot accelerator $

1шт.

12

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

13

3068537R1

TRUNNION

END, control

2шт.

14

3112052R1

BRACKET

cross shaft cpte.

1шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/8", G2

2шт.

271501

SOCKET

NUT, 7/16 hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

15

3047546R1

SPRING

pedal return

1шт.

16

3108779R1

PEDAL

cpte., foot accelerator

1шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

17

3071169R1

BRACKET, engine choke control support

1шт.

181312

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5

hex. hd. 1/4" UNF x 11/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

3045038R91

CABLE

choke control cpte.

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

hex. hd. 1/4" x 1/2"

1шт.

120520

CLIP

CLAMP, closed 3/16"

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

115547

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

19

3112094R1

LEVER

cpte., foot accelerator

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

20

3112048R91

ROD

cpte., control comprising:

1шт.

21

ROD, control $

1шт.

22

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

23

3068537R1

TRUNNION

END, control rod

2шт.

24

3112080R1

LEVER

cpte., governor control

1шт.

25

3112079R1

WASHER

disc spring

2шт.

26

3112075R1

ARM

cpte., governor control

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

27

528290R1

GUIDE RING

COLLAR, governor control handle

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW, 8-32 x 3/8 socket head

1шт.

28

402584R1

BUTTON

KNOB, governor control handle

1шт.

29

3112074R1

ROD

governor control handle

1шт.

30

3112078R1

FRICTION WASHER

friction governor control

2шт.

575808R1

WASHER

19/32 x 1 x 16 ga plain

1шт.

31

551174R1

WASHER

plain 19/32 x 1-1/4 x 1/8"

1шт.

32

3112678R1

NUT

self locking 9/16" UNF

1шт.

33

3112086R1

FORK

governor control

1шт.

3112087R1

WASHER

governor control fork

1шт.

138693R1

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

1шт.

34

3112082R1

LEVER

cpte., throttle arm

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

120394

WASHER,3/8", SAE

WASHER, plain 13/32 x 13/16 x .051"

1шт.

35

3112091R1

LEVER

cpte., cross shaft driving

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

hex. hd. 3/8" x 1-1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

Foot accelerator stop 3/8"-16, G5

2шт.
