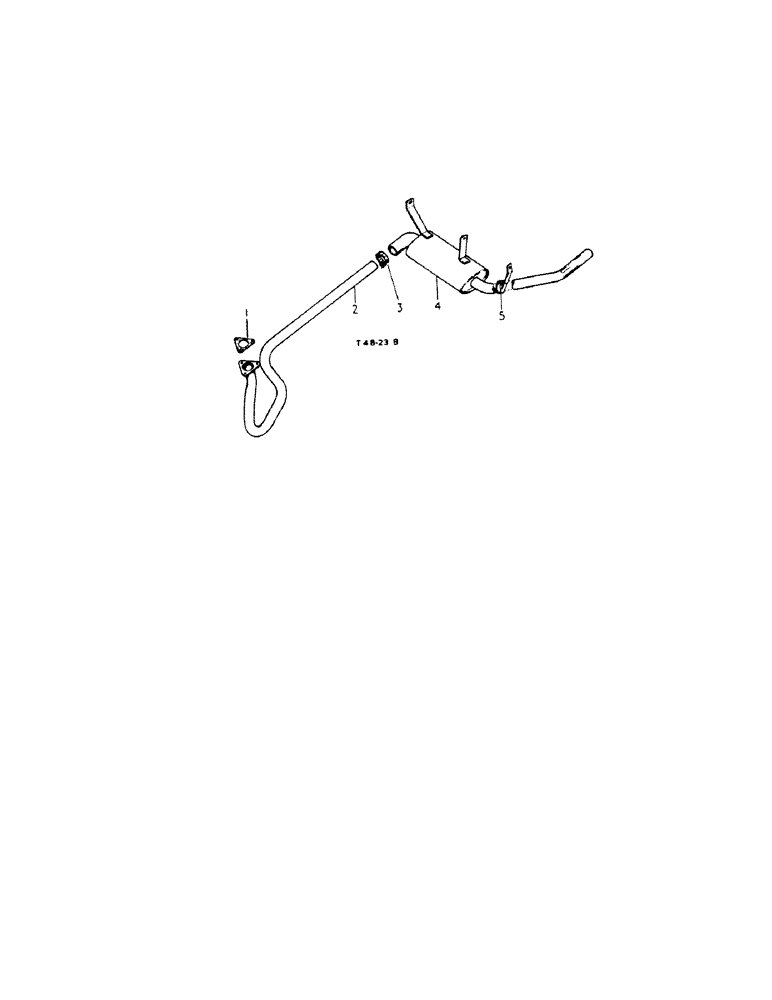

Запчасти Case IH 444 (4-35[A]) - DOWNSWEPT EXHAUST PIPE, PETROL (02) - ENGINE

1

3060566R1

GASKET

exhaust pipe flange

1шт.

2

3112753R1

PIPE

exhaust, manifold to silencer, cpte.

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

704621R1

CLAMP

exhaust pipe

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

3106834R1

MUFFLER

SILENCER, exhaust, cpte.

1шт.

NLS

NO LONGER SERVICED

2шт.

5

3068010R1

CLAMP

support, muffler outlet pipe

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(For muffler outlet pipe support clamp) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.
