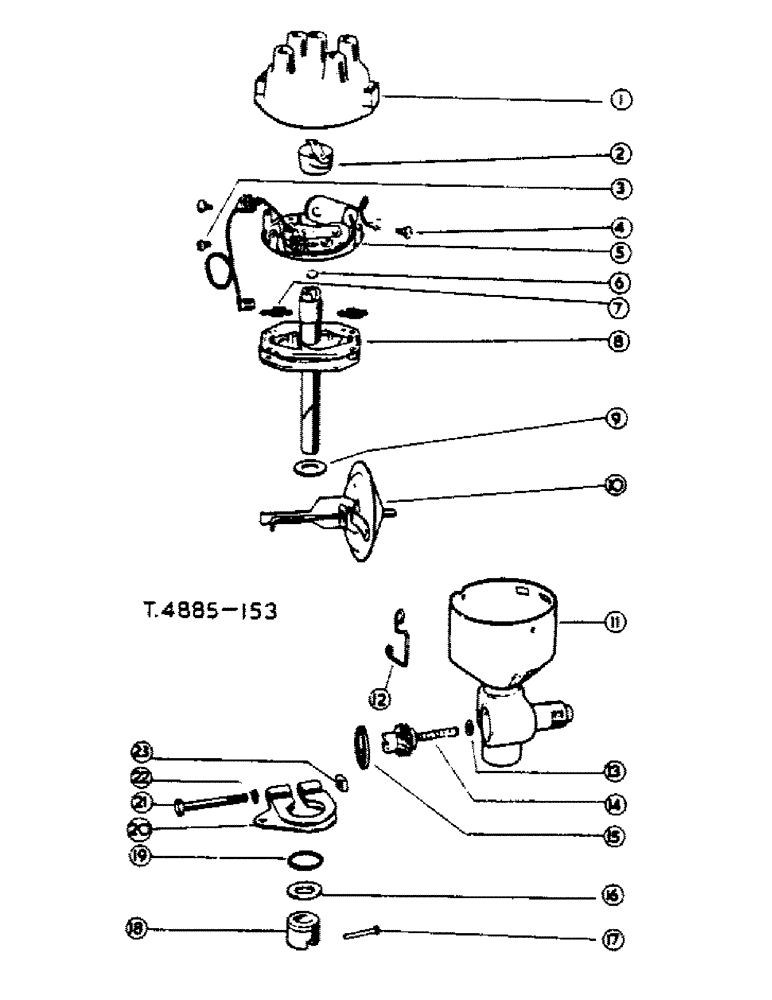

Запчасти Case IH 444 (2-20) - DISTRIBUTOR CPTE., WITH TACHO DRIVE 7953342 (02) - ENGINE

3068973R92

DISTRIBUTOR

w/TACHO DRIVE, cpte., comprising:

1шт.

1

3069777R1

CAP

distributor

1шт.

2

3069778R1

ROTOR

1шт.

3

3073004R1

SCREW

breaker plate mtg.

1шт.

4

3069786R1

SCREW

cap clip

2шт.

5

3072997R91

BREAKER

circuit, assy., See detail list

1шт.

6

3069781R1

WICK, felt oil

1шт.

7

3069783R91

SPRING

advance weight set

1шт.

8

3073007R91

SHAFT

MAINSHAFT & CAM, assy.

1шт.

9

3069784R1

WASHER

1шт.

10

NOT USED

1шт.

11

3074039R91

HOUSING, assy.

1шт.

12

3069785R1

CLIP

cap

2шт.

13

3069788R1

WASHER

drive gear thrust

1шт.

14

3069789R1

GEAR

drive

1шт.

15

3069790R1

PLUG

1шт.

16

3069793R1

WASHER

shaft - lower

1шт.

17

3069795R1

PIN, coupling

1шт.

18

3069794R1

COUPLING, BREAK AWAY

COUPLING

1шт.

19

3069792R1

SEALING RING

RING, oil seal

1шт.

20

3069791R91

CLAMP, housing, assy., w/BOLT, 3069796R1, NUT 3069797R1 & WASHER 121637

1шт.

21

3069796R1

BOLT, clamp

1шт.

22

121637

LOCK WASHER

WASHER, lock, 1/4

1шт.

23

3069797R1

NUT

clamp bolt

1шт.
