(2-17) - LUBRICATING OIL FILTER

Запчасти Case IH 444 (2-17) - LUBRICATING OIL FILTER (02) - ENGINE

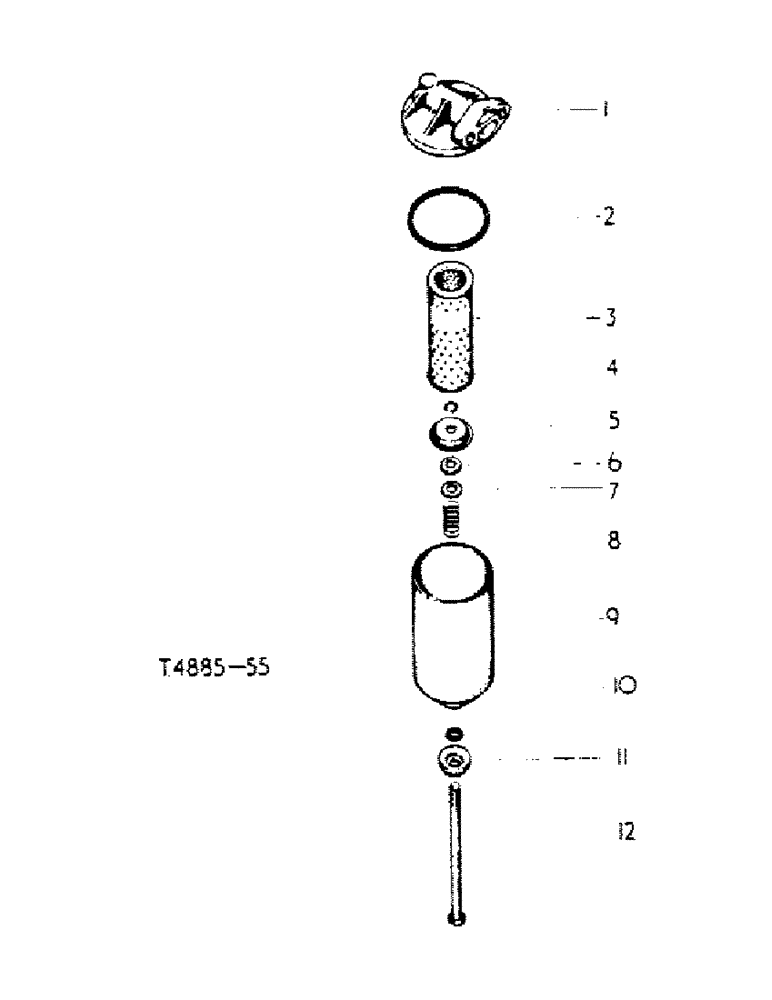

Схема запчастей Case IH 444 - (2-17) - LUBRICATING OIL FILTER (02) - ENGINE
1
3
2
5
7
10
11
8
9
12
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3066851R91

FILTER

"FILTER, lubricating oil assy., (Purolator)" comprising:

1шт.

1

3069113R91

HEAD

"HEAD, assy.,"

1шт.

2

707859R1

SEALING RING

"SEAL, head"

1шт.

3

3110452R91

ENGINE OIL FILTER

"PACKAGE, element (Opt. w/3043283R92)"

1шт.

4

707869R1

RETAINER

CIRCLIP

1шт.

5

3069108R1

GUIDE

"GUIDE, element"

1шт.

6

3069109R1

WASHER

SEAL

1шт.

7

3069114R1

WASHER

1шт.

8

703789R1

SPRING

1шт.

9

707866R1

SUMP

"SUMP, assy.,"

1шт.

10

707863R1

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

""O" RING"

1шт.

11

707862R1

DISC

COLLAR

1шт.

12

3069112R1

BOLT

centre

1шт.

3043283R92

INSERT

PACKAGE, element (Opt. w/3110452R91) comprising:

1шт.

3043315R1

PLATE

adaptor

2шт.

3042423R1

SEALING WASHER

RING, sealing

1шт.

707859R1

SEALING RING

RING, sealing

1шт.
