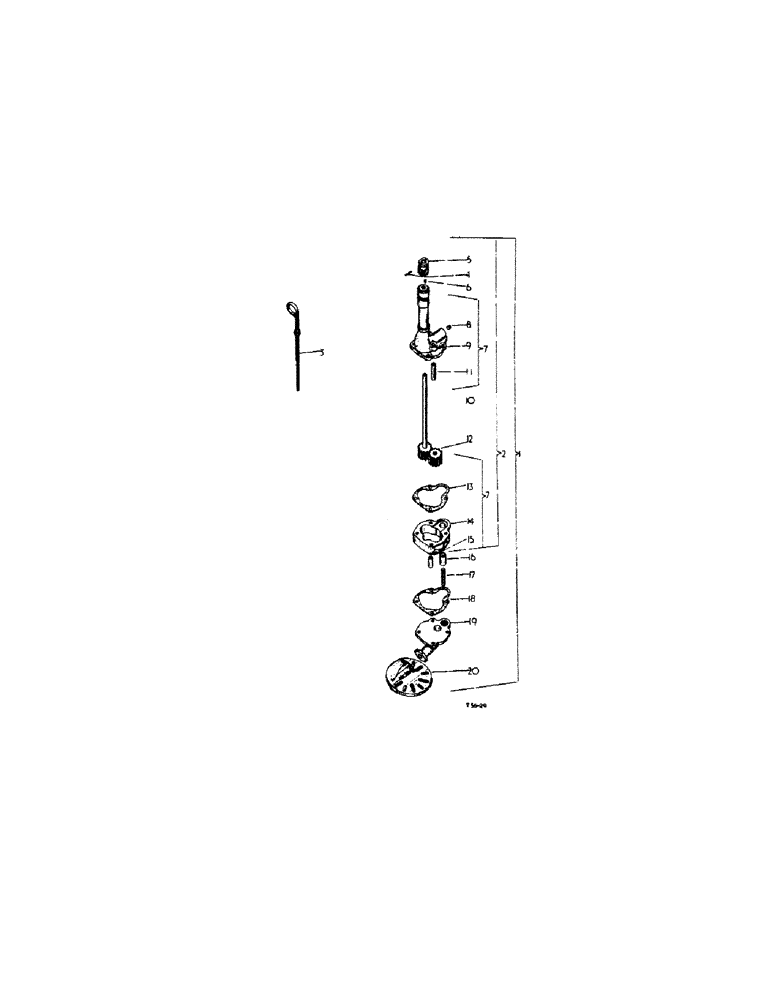

Запчасти Case IH 444 (2-15[A]) - LUBRICATION SYSTEM (02) - ENGINE

1

3064064R91

PUMP

assy., oil comprising:

1шт.

BODY 3043828R93

1шт.

BOLT 179826

1шт.

BOLT 179828

2шт.

BOLT 179829

1шт.

BOLT 179791

2шт.

COVER 3064061R1

1шт.

GASKET 711558R1

1шт.

NUT 102634

2шт.

SCREEN 3064062R91

1шт.

SPRING 751829R1

1шт.

VALVE 751830R2

1шт.

WASHER 115548

6шт.

WASHER 103319

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex. hd. 3/8" x 1-1/8"

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

2

3045828R93

BODY

assy., oil pump comprising:

1шт.

BODY 3042570R92

1шт.

GEAR 3063757R1

1шт.

KEY 103905

1шт.

PINION 3043830R1

1шт.

PIN 932204R1

1шт.

SHAFT 3062345R91

1шт.

3

706977R91

DIPSTICK

GAUGE, cpte., oil level

1шт.

4

932204R1

LOCK PIN,M3 x 20, Slotted

PIN, roll (3mm dia. x 20mm long)

1шт.

5

3043830R1

GEAR

PINION, oil pump drive

1шт.

6

NLS

NO LONGER SERVICED

Woodruff

1шт.

7

3042570R92

CASE

BODY, cpte., oil pump drive comprising:

1шт.

BODY $

1шт.

CASE $

1шт.

GASKET 706628R1

1шт.

PIN 932205R1

2шт.

PLUG 103883

1шт.

SHAFT $

1шт.

8

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

9

BODY, oil pump $

1шт.

10

3062345R91

SHAFT

oil pump drive (As required)

1шт.

11

SHAFT, oil pump idler $

1шт.

12

3063757R1

GEAR

oil pump body

1шт.

13

706628R1

GASKET

oil pump body

1шт.

14

CASE, oil pump gear $

1шт.

15

932205R1

LOCK PIN,M10 x 40, Slotted

PIN, roll (10mm dia. x 40mm long)

2шт.

16

751830R2

VALVE

oil pressure regulating

1шт.

17

751829R1

SPRING

oil pressure regulating

1шт.

18

711558R1

GASKET

oil pump gear (As required)

1шт.

19

3064061R1

COVER

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Type A Int Tooth, 5/16"

1шт.

5/16"

4шт.

20

3064062R1

SCREEN, oil pump

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
