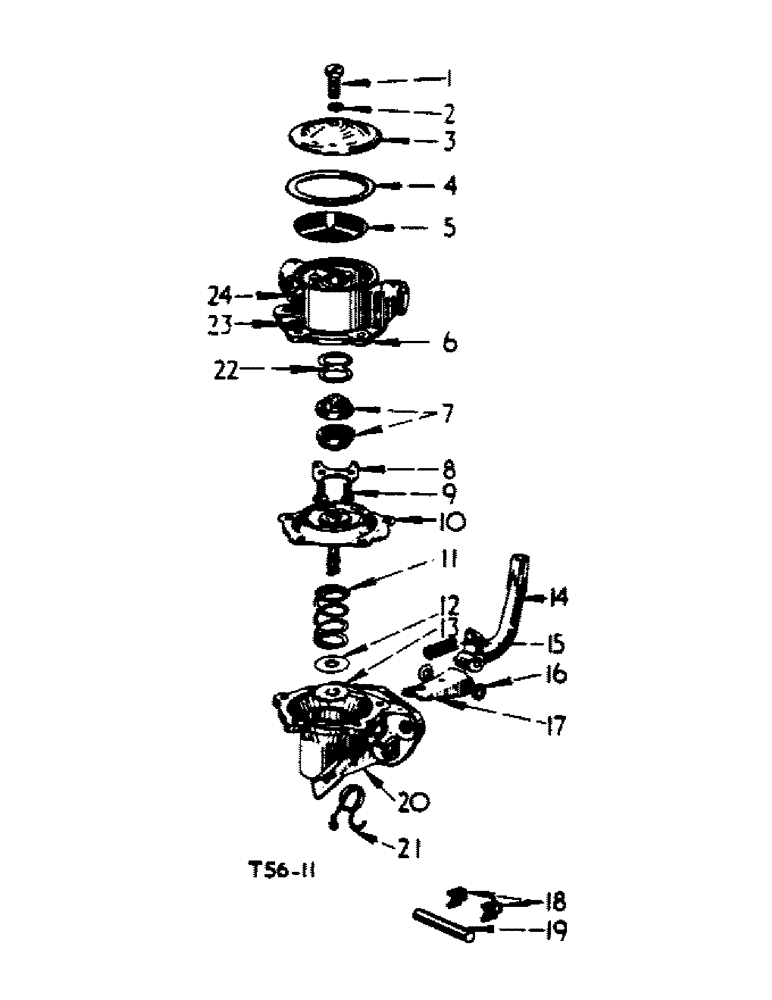

Запчасти Case IH 444 (2-13) - FUEL FEED PUMP (02) - ENGINE
№
Артикул
Название
Примечание
Количество
3044197R92
PUMP
fuel feed, cpte., comprising:
1шт.
1
702953R1
SCREW
head
1шт.
2
3044511R1
GASKET
head screw
1шт.
3
3044512R1
COVER
filter
1шт.
4
3044518R1
GASKET
filter
1шт.
5
3044513R1
FILTER SCREEN
SCREEN, filter
1шт.
6
3105122R91
COVER
assy.
1шт.
7
702959R91
VALVE
assy.
2шт.
8
702960R1
RETAINER
valve
1шт.
9
702961R1
SCREW
valve retaining
2шт.
10
708953R91
DIAPHRAGM
assy.
1шт.
11
3047235R1
SPRING, diaphragm
1шт.
12
3072671R1
WASHER
oil seal (metal)
1шт.
13
3072672R1
SEALING WASHER
OIL SEAL
1шт.
14
3044517R1
ARM
rocker
1шт.
15
708956R1
SPRING
rocker arm
1шт.
16
708957R1
WASHER
rocker arm pin
2шт.
17
708963R1
LINK
1шт.
18
3044516R1
RETAINER
rocker arm pin
2шт.
19
3044515R1
PIN
rocker arm
1шт.
20
3044519R91
COVER ASSY
BODY & HAND PRIMER, set
1шт.
21
3044520R1
SPRING
priming lever
1шт.
22
3065032R1
GASKET, valve
1шт.
23
NOT USED
1шт.
24
132105
SCREW,Sl Fil Hd, #10 - 32 x 3/8"
cover, No.10 UNF x 3/8"
5шт.
3063872R1
BOLT
12 point ring 5/16" x 3/4"
2шт.
3046381R92
REPAIR KIT
KIT, repair, less rocker arms comprising: items
1шт.
702951R1
CLIP, pin PARTS USED IN OLD ASSEMBLIES
2шт.
702958R1
GASKET
valve PARTS USED IN OLD ASSEMBLIES
1шт.
3061658R1
GASKET
pad PARTS USED IN OLD ASSEMBLIES
1шт.
702950R1
PIN, rocker arm PARTS USED IN OLD ASSEMBLIES
1шт.
702960R1
RETAINER
valve PARTS USED IN OLD ASSEMBLIES
1шт.
702961R1
SCREW
retainer PARTS USED IN OLD ASSEMBLIES
1шт.
708958R1
WASHER
metal, oil seal PARTS USED IN OLD ASSEMBLIES
1шт.
708959R1
WASHER
fabric, oil seal PARTS USED IN OLD ASSEMBLIES
1шт.
3046382R91
PACKAGE
KIT, first aid repair, (BD-4) (As required)" comprising: items
1шт.
702958R1
GASKET
PARTS USED IN OLD ASSEMBLIES
1шт.
3061658R1
GASKET
PAD, gasket, PARTS USED IN OLD ASSEMBLIES
1шт.
3044458R1
PRIMER PAINT
PRIMER PARTS, set
1шт.
3043370R1
GASKET
feed pump
1шт.
3061658R1
GASKET
feed pump
1шт.
