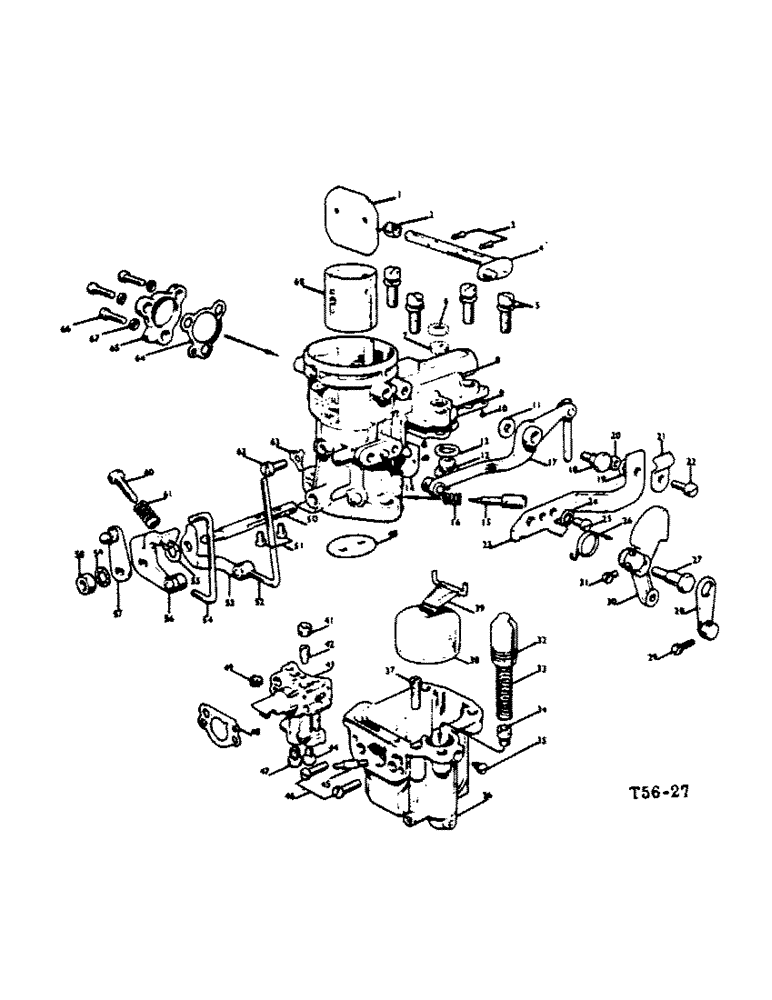

Запчасти Case IH 444 (2-12) - CARBURETTOR (02) - ENGINE

3106595R91

CARBURETOR

CARBURETTOR, cpte., comprising:

1шт.

3063945R91

CARBURETOR

CARBURETTOR

1шт.

3062698R1

SHROUD

excess shaft

1шт.

3065055R1

WASHER

felt.

1шт.

3063945R91

CARBURETOR

CARBURETTOR comprising:

1шт.

1

3047486R1

FLAP, strangler

1шт.

2

3047485R1

SPRING

automaticity

1шт.

3

700659R1

SCREW

strangler flap

2шт.

4

3047483R91

LEVER

SPINDLE and LEVER assy., strangler

1шт.

3047484R1

WASHER

1шт.

5

3047465R91

SCREW

and spring washer, fixing bowl

1шт.

, Serial Range: -barrel

4шт.

6

3065056R1

RETAINER

1шт.

7

3065055R1

WASHER

felt

1шт.

8

3065060R91

BARREL assy., carburettor

1шт.

9

3065054R1

GASKET

float chamber cover

1шт.

10

3047467R1

SCREW, parker

6шт.

11

3065062R1

WASHER, pump pivot screw

1шт.

12

3047508R91

SEAT

ING, needle

1шт.

13

3047462R1

WASHER

needle seating

1шт.

14

3047468R1

GASKET

vertical bowl face

1шт.

15

3047499R1

SCREW

volume control

1шт.

16

3047500R1

SPRING

1шт.

17

3065059R91

LEVER, and ROD assy., pump

1шт.

3062698R1

SHROUD

excess shaft

1шт.

18

3065061R1

SCREW

pump pivot

1шт.

19

3047490R1

WASHER, shakeproof

1шт.

20

3047489R1

NUT

1шт.

21

3047487R1

CLIP

1шт.

22

3047488R1

SCREW

1шт.

23

3047491R91

BRACKET, cpte., assy., strangler

1шт.

24

3047490R1

WASHER, shakeproof

1шт.

25

3047492R1

SCREW

1шт.

26

3047494R2

SPRING

1шт.

27

3047495R1

SCREW

joumal

1шт.

28

3047498R91

LINK, strangler control

1шт.

29

3047497R1

SCREW, swive

1шт.

30

3047493R91

LEVER

strangler control

1шт.

31

3047496R1

SCREW, interconnection swive

1шт.

32

3065050R1

PISTON

pump

1шт.

33

3065051R1

SPRING

pump piston

1шт.

34

3065049R1

VALVE

pump check

1шт.

35

3065052R1

SCREW, piston retaining

1шт.

36

3065048R1

BOWL, carburettor

1шт.

37

3065053R1

VALVE

pump discharge

1шт.

38

3047463R91

FLOAT

1шт.

39

3047464R91

ARM

and PIVOT float

1шт.

40

3047478R1

THROTTLE

1шт.

41

3047507R1

PLUG

over slow running jet

1шт.

42

3047506R1

JET

slow running

1шт.

43

3047459R1

BLOCK, emulsion

1шт.

44

3048469R1

JET

compensating

1шт.

45

3065067R1

JET

pump

1шт.

46

3047461R1

SCREW, emulsion block

2шт.

47

708396R1

JET

main

1шт.

48

3047460R1

GASKET

emulsion block

1шт.

49

3047505R1

SCREW

ventilation

1шт.

50

3047470R1

SPINDLE

throttle

1шт.

51

3047479R1

SCREW

throttle

2шт.

52

3047476R1

ROD, interconnection

1шт.

53

3047475R91

LEVER, floating

1шт.

54

3065058R1

LINK

pump

1шт.

55

3047477R1

WASHER, for spindle

1шт.

56

3065057R1

STOP

throttle

1шт.

57

3047472R91

LEVER and BALL JOINT, throttle

1шт.

58

3047473R1

NUT, throttle spindle

1шт.

59

3047474R1

WASHER, shakeproof

1шт.

60

3047480R1

SCREW, stop, throttle

1шт.

61

700632

SPRING, stop throttle

1шт.

62

3047482R1

SCREW, choke tube

1шт.

63

3047481R1

WASHER, tab

1шт.

64

3065063R1

GASKET

1шт.

65

3065064R1

PLATE

blanking economy

1шт.

66

3065065R1

SCREW

3шт.

67

3065066R1

WASHER, lock

3шт.

68

3048467R1

TUBE, choke

1шт.

-

3070405R91

PACKAGE

S, carburettor gasket

1шт.
