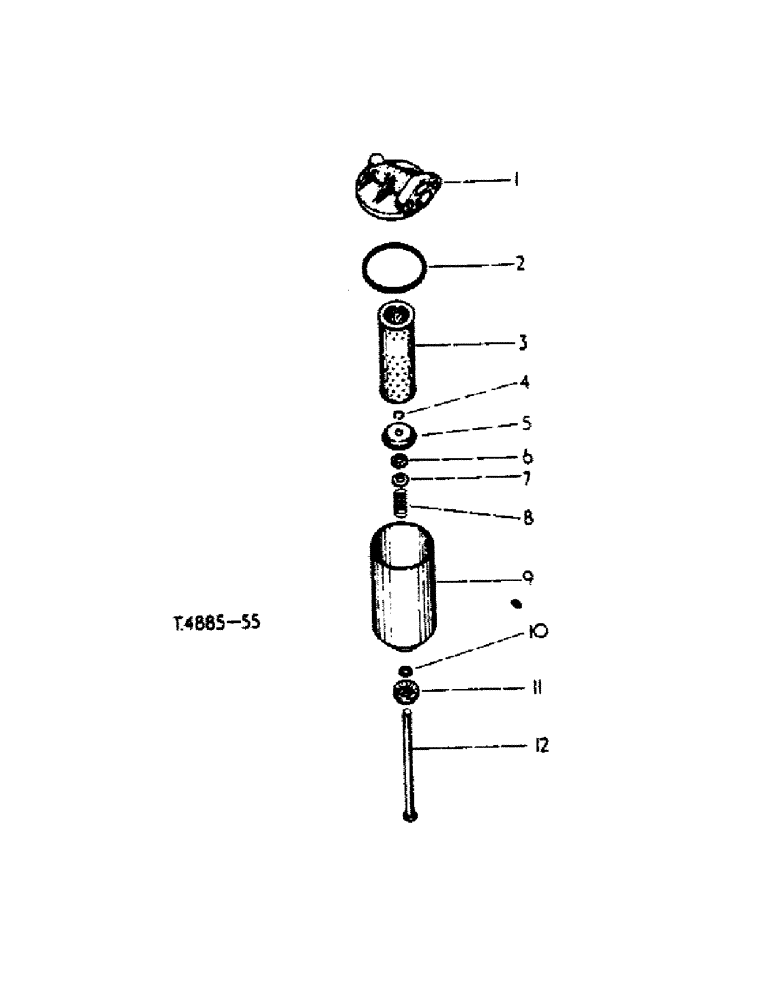

Запчасти Case IH 444 (1-16[A]) - LUBRICATING OIL FILTER (02) - ENGINE

3066851R91

FILTER

lubricating oil assy. (Purolator) comprising:

1шт.

1

3069113R91

HEAD

assy.

1шт.

2

707859R1

SEALING RING

SEAL, head

1шт.

3

3043283R92

INSERT

PACKAGE, element service w/PLATE 3043315R1, RING 3043423R1, RING 707859R1 opt w/3110452R91

1шт.

3

3110452R91

ENGINE OIL FILTER

ELEMENT, assy. w/SEAL 3067728R91 and SEAL 707859R1

1шт.

3

3066852R91

FILTER, ELEMENT

PACKAGE, element w/3 SEAL 3067730R91 and 3 SEAL 707859R1

1шт.

4

707869R1

RETAINER

CIRCLIP

1шт.

5

3069108R1

GUIDE

element

1шт.

6

3069109R1

WASHER

SEAL

1шт.

7

3069114R1

WASHER

1шт.

8

703789R1

SPRING

1шт.

9

707866R1

SUMP

assy.

1шт.

10

707863R1

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

O RING

1шт.

11

707862R1

DISC

COLLAR

1шт.

12

3069112R1

BOLT

centre

1шт.

706592R2

GASKET

lub, oil filter hose

1шт.
