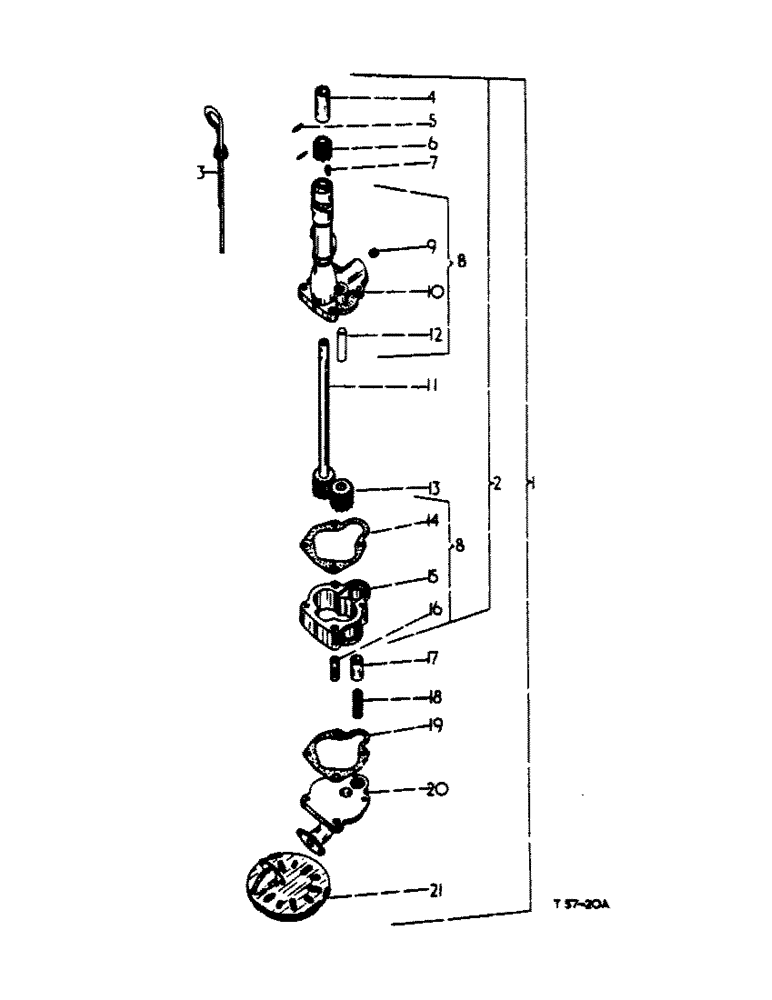

Запчасти Case IH 444 (1-14) - LUBRICATION SYSTEM (02) - ENGINE

1

3064060R91

PUMP

oil assy., comprising:

1шт.

BALL 751830R2

1шт.

BODY 3043132R93

1шт.

BOLT 179826

2шт.

BOLT 179828

2шт.

BOLT 179791

2шт.

COVER 3064061R1

1шт.

GASKET 711558R1

1шт.

NUT 102634

2шт.

SCREEN 3064062R91

1шт.

SPRING 751829R1

1шт.

WASHER 115548

4шт.

WASHER 103319

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex. hd. 3/8" x 1-1/8"

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

2

3043132R93

BODY

oil pump, assy, comprising:

1шт.

BODY 3042570R92

1шт.

COUPLING 3042479R1

1шт.

GEAR 3063757R1

1шт.

KEY 103905

1шт.

PINION 704107R1

1шт.

PIN 932204R1

2шт.

SHAFT 3042572R91

1шт.

3

706977R91

DIPSTICK

GAUGE, cpte., oil lever

1шт.

4

3042479R1

COUPLING, BREAK AWAY

COUPLING, hourmeter drive

1шт.

5

932204R1

LOCK PIN,M3 x 20, Slotted

PIN, roll (3 mm dia. x 20 mm long)

2шт.

6

704107R1

GEAR

PINION, oil pump drive

1шт.

7

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, Woodruff

2шт.

8

3042570R92

CASE

BODY, cpte., oil pump, comprising:

1шт.

BODY $

1шт.

CASE $

1шт.

GASKET 706628R1

1шт.

PIN 932205R1

2шт.

PLUG 103883

1шт.

SHAFT $

1шт.

9

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

10

BODY, oil pump $

1шт.

11

3042572R91

SHAFT

oil pump drive (As required)

1шт.

12

SHAFT, oil pump roller $

1шт.

13

3063757R1

GEAR

oil pump body idler

1шт.

14

706628R1

GASKET

oil pump body

1шт.

15

CASE, oil pump gear $

1шт.

16

932205R1

LOCK PIN,M10 x 40, Slotted

PIN, roll (10 mm dia. x 40 mm long)

2шт.

17

751830R2

VALVE

BALL, oil pressure regulating valve

1шт.

18

751829R1

SPRING

oil pressure regulating valve

1шт.

19

711558R1

GASKET

oil pump gear (As required)

1шт.

20

3064061R1

COVER

oil pump

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16"

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

21

3064062R91

FILTER SCREEN

SCREEN, assy oil pump

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, Woodruff (used on oil pump body assy)

2шт.
