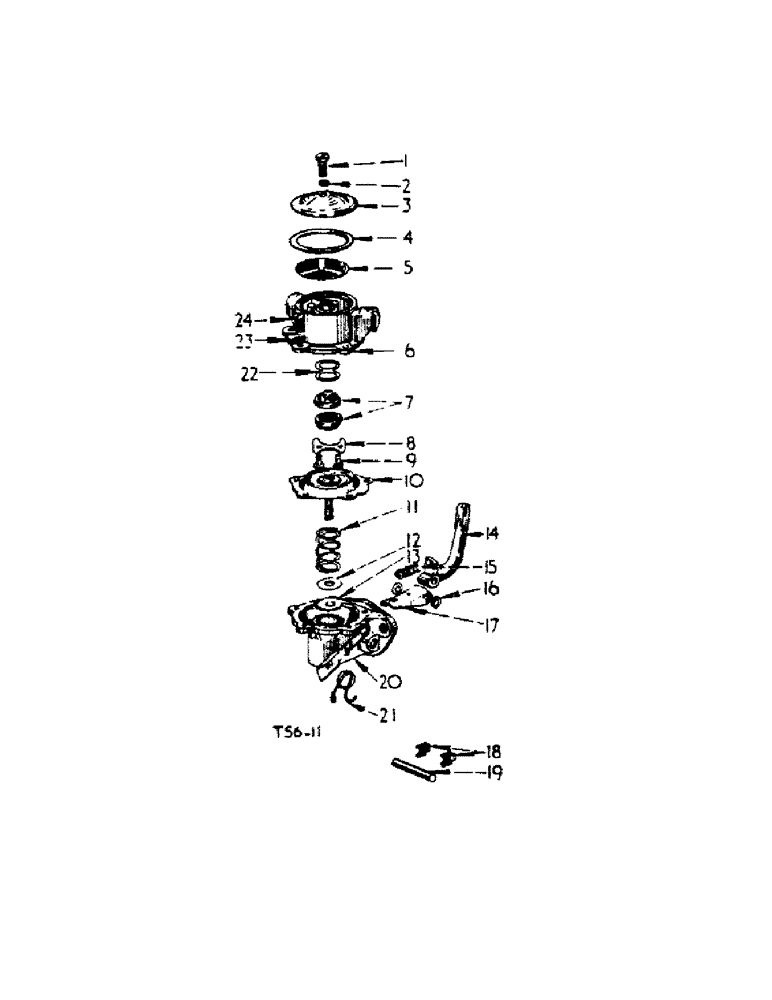

Запчасти Case IH 444 (1-13[A]) - FUEL FEED PUMP (02) - ENGINE

708294R93

PUMP

fuel feed, Includes: Ref. 1 - 24

1шт.

1

702953R1

SCREW

filter cover

1шт.

2

3044511R1

GASKET

filter cover screw

1шт.

3

3044512R1

COVER

filter

1шт.

4

3044518R1

GASKET

filter cover end

1шт.

5

3044513R1

FILTER SCREEN

SCREEN

1шт.

6

3105122R91

COVER

assy.

1шт.

7

702959R91

VALVE

assy.

2шт.

8

702960R1

RETAINER

valve

1шт.

9

702961R1

SCREW

2шт.

10

3066607R91

DIAPHRAGM

assy.

1шт.

11

708954R1

SPRING

diaphragm

1шт.

12

3072671R1

WASHER

oil seal

1шт.

13

3072672R1

SEALING WASHER

OIL SEAL

1шт.

14

3044517R1

ARM

rocker

1шт.

15

708956R1

SPRING

rocker arm

1шт.

16

708957R1

WASHER

rocker arm pin

2шт.

17

708963R1

LINK

1шт.

18

3044516R1

RETAINER

rocker arm pin

2шт.

19

3044515R1

PIN

rocker arm

1шт.

20

3044519R91

COVER ASSY

BODY and HAND PRIMER, assy.

1шт.

21

3044520R1

SPRING

priming lever

1шт.

22

3065032R1

GASKET, valve

1шт.

23

NOT USED

1шт.

24

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

cover sltd., fill. hd.

1шт.

No. 10 UNF x 3/8"

5шт.

3063872R1

BOLT

12 point ring, 5/16" x 3/4"

2шт.

3066610R92

KIT

repair, less rocker arms (As required) comprising items

1шт.

3066540R91

STRIPPER PACKAGE

KIT, first aid repair (BD - 17) (As required) comprising items

1шт.

3044458R91

SPRING

PRIMER, parts set (As required)

1шт.

3043370R1

GASKET

feed pump

1шт.

3061658R1

GASKET

feed pump

1шт.
