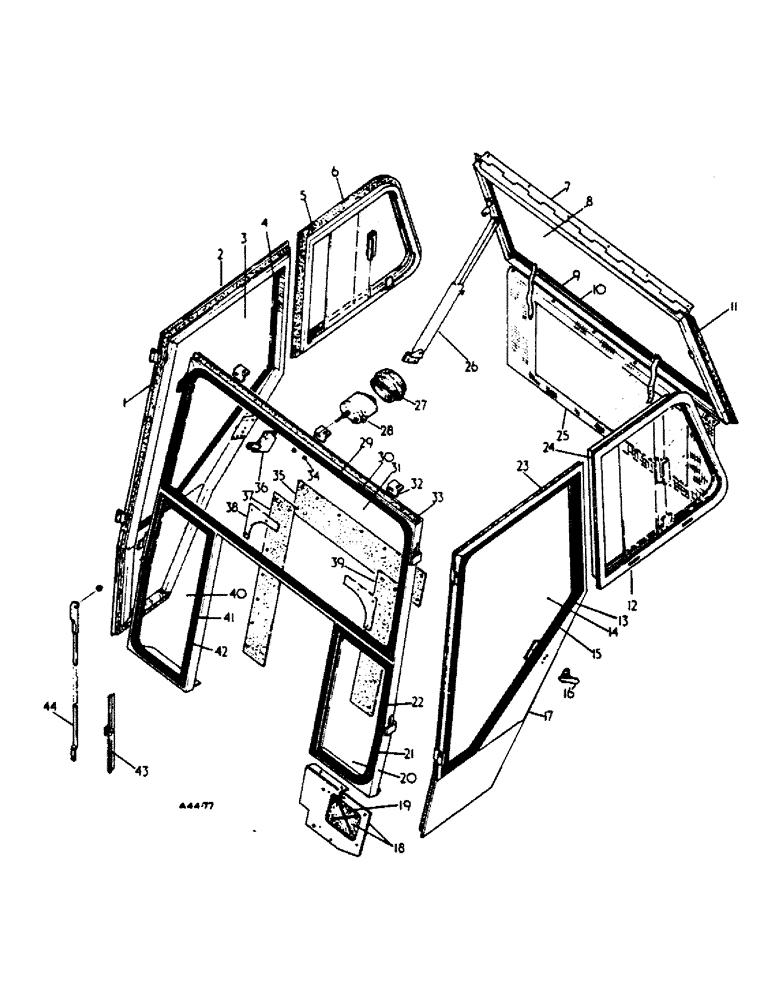

Запчасти Case IH 444 (6-77A) - SAFETY CAB, 444-001/B001574 UP, 444-002/B000826 UP, 2350-004/B000531 UP, 1250-005/B000531 UP (09) - CHASSIS

3112886R94

CAB, cpte safety (w/safety frame 3113261R93 and roof panel 3113575R91)

1шт.

1

3114811R1

STRIP

SEAL, door bottom R.H. 9.5

1шт.

3114810R1

STRIP

SEAL, door upper 25.7

1шт.

3113570R1

SEAL

door front 58.0

1шт.

3114812R1

STRIP

SEAL, door rear 64.8

1шт.

2

3114014R92

DOOR

assy cpte R.H

1шт.

2

3114016R1

FRAME

door R.H. cpte

1шт.

3

3114017R1

GLASS

1шт.

4

3114019R1

MOLDING

SEAL, door

1шт.

5

SEAL, sliding window, BULK LENGTH 50 FT

1шт.

6

3113542R1

WINDOW, sliding R.H. cpte

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW, No. 8-32 pan hd cross recess

4шт.

7

3112493R91

PANEL

assy rear top w/glass, moulding seal and strip

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 hex hd

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120386

WASHER

5/16 plain

6шт.

7

3112494R1

PANEL

spte rear top

1шт.

8

3112495R1

GLASS

1шт.

9

3112496R1

SEAL

MOULDING, rubber

1шт.

10

3118670R1

SEAL

rear window strip , BULK LENGTH 100 FT

1шт.

11

3112498R1

SEAL, GLASS

1шт.

12

3113541R1

WINDOW

sliding L.H. cpte

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW, No. 8 pan hd cross recess

4шт.

13

3118670R1

SEAL

door strip, BULK LENGTH 100 FT

1шт.

14

3114017R1

GLASS

1шт.

15

3114018R1

MOLDING

SEAL, door

1шт.

16

3113466R91

HANDLE

outside door

2шт.

3112458R1

SCREW

2BA x 5/8 c/s hd

4шт.

3112459R1

NUT

2BA

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

17

3114013R92

DOOR

assy cpte L.H.

1шт.

17

3114015R1

FRAME

door L.H. cpte

1шт.

18

3114008R91

PLATE

assy nearside front lower

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex hd 1/4 x 5/8

3шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

3069906R1

RIVET

pop 1/8

2шт.

3114004R1

WASHER

2шт.

446179

WASHER,#12

plain 1/4

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

3114795R1

WASHER

safety cab mounting

1шт.

19

3114011R1

RUBBER

GAITER, rubber

1шт.

3114796R91

GLASS

WINDSHIELD, assy front cpte

1шт.

20

3114799R1

GLASS

windscreen L.H.

1шт.

21

3114800R1

SEAL

windscreen L.H.

1шт.

22

3118670R1

SEAL

filler strip , BULK LENGTH 100 FT

1шт.

23

3114808R1

SEAL

door bottom L.H. 11.6

1шт.

3114810R1

STRIP

SEAL, door upper 25.7

1шт.

3114807R1

STRIP

SEAL, door front L.H. 53.0

1шт.

3114809R1

STRIP

SEAL, door rear L.H. 59.1

1шт.

24

3118672R1

STRIP

SEAL, sliding window, BULK LENGTH 50 FT

1шт.

25

3114051R1

CURTAIN

cpte rear

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 hex hd

5шт.

26

3112509R91

SUPPORT

rear window assy

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4 x 3/4 hex hd cap

6шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 hex lock

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120392

WASHER,1/4", SAE

.281 x .625 .051 plain

2шт.

3114070R1

SCREW

5/16 x 1 thumb

2шт.

27

3113075R2

GUARD

rubber head

1шт.

28

3113074R91

ELECTRIC MOTOR

MOTOR, spte windscreen wiper

1шт.

29

3118670R1

SEAL

windscreen strip, BULK LENGTH 100 FT

1шт.

30

3113555R1

SEAL

upper

1шт.

31

3113554R1

GLASS

upper

1шт.

32

3113566R1

ANGLE

windscreen mounting

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 plain

6шт.

33

3112425R1

SEAL

windscreen top

1шт.

34

3112426R1

GROMMET

rubber

2шт.

35

3113564R2

GASKET

SHEET, horizontal

1шт.

36

3112461R91

HANDLE

LOCK AND HANDLE, inside door R.H.

1шт.

3112460R91

HANDLE

LOCK AND HANDLE, inside door L.H.

1шт.

178716

SCREW,#10 - 32 x 3/8"

No. 10-32 x 3/8 tap

8шт.

37

3113565R2

GASKET

SHEET, vertical R.H.

1шт.

38

3113552R1

PLATE

filler

2шт.

23993R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, No. 10-16 x 1/2 hex slt hd tap

18шт.

120391

WASHER,#10

.219 x .50 x .036 plain

18шт.

39

3114803R1

FOAM INSULATION

SHEET vertical L.H.

1шт.

40

3113558R1

GLASS

lower

1шт.

41

3118670R1

SEAL

filler strip, BULK LENGTH 100 FT

1шт.

42

3113560R1

SEAL

lower R.H.

1шт.

43

3113077R1

BLADE

wiper

1шт.

44

3113076R91

ARM

wiper

1шт.

ref

Part No.

English

1шт.

3113436R91

SUPPORT

CABLE, assy wiper

1шт.

707458R1

PLUG, wiper blanking

2шт.

3113438R1

GROMMET, wiper entry cab

2шт.

1092596R1

DECAL

PRODUCT-GRAPHIC, cab warning

1шт.

1092550R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, cab warning

1шт.

3115815R91

"PACKAGE, safety frame cladding (For use" w/Tractors fitted w/Safety Frame only to be converted to a complete Cab) "PACKAGE, safety cab conversion (For m/c" fitted w/power steering) (Factor application) (Consists of:

1шт.

3115228R1

" PLATE, cpte floor L.H."

1шт.

3115229R1

" PLATE, assy nearside front lower"

1шт.
