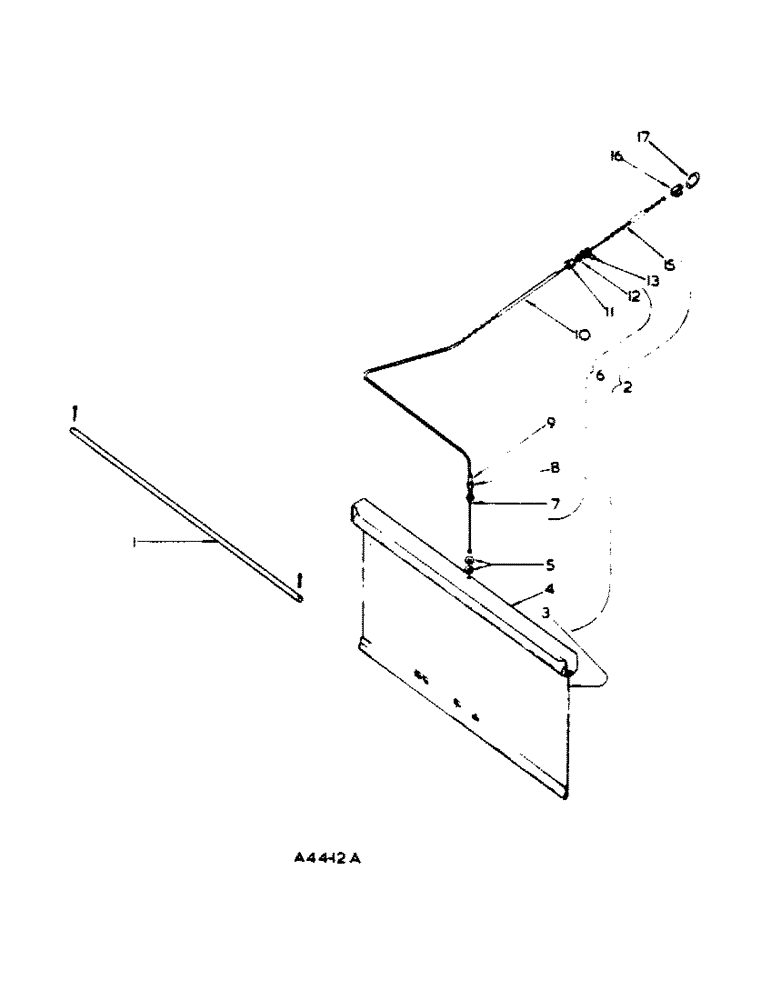

Запчасти Case IH 444 (6-73) - RADIATOR CURTAIN ATTACHMENT (09) - CHASSIS

3111972R91

ATTACHMENT, radiator curtain SERVICE ONLY

1шт.

1

3045259R1

STIFFENER, radiator curtain

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16" x 1/2"

2шт.

2

3045253R93

CURTAIN, radiator and operating cable cpte., comprising:

1шт.

CABLE 707696R12

1шт.

BLIND 3045254R91

1шт.

HOLDER 3045255R1

1шт.

WASHER 16558R1

2шт.

WASHER 16559R1

2шт.

3

3045254R91

CURTAIN

BLIND, radiator assy.

1шт.

4

3045255R1

HOLDER, radiator curtain

1шт.

5

16558R1

WASHER

plain, 17/64" x 5/8"

2шт.

6

707696R12

CABLE

operating, radiator curtain, cpte., comprising:

1шт.

CHAIN 3070656R1

1шт.

CABLE 707696R1

1шт.

CONDUIT 707697R1

1шт.

END 707698R1

2шт.

NUT 707701R1

2шт.

STOP 707699R1

1шт.

STOP 707700R1

1шт.

NIPPLE 707694R1

1шт.

7

707696R1

CABLE

radiator operating

1шт.

8

707700R1

STOP, adjustable (7/8" underhead)

1шт.

9

707698R1

ENDS, conduit

2шт.

10

707697R1

CONDUIT, operating cable, radiator curtain

1шт.

11

707699R1

STOP, adjustable (7/8" underhead)

1шт.

12

707701R1

NUT, lock

2шт.

13

16559R1

WASHER,1/4"

17/64" x 5/8" x .036"

2шт.

14

NOT USED

1шт.

15

3070656R91

CHAIN (AG)

CHAIN, ball radiator curtain

1шт.

16

707688R1

CONNECTOR, ball, Serial Range: chain-ring

1шт.

17

711947R1

RING

1шт.
