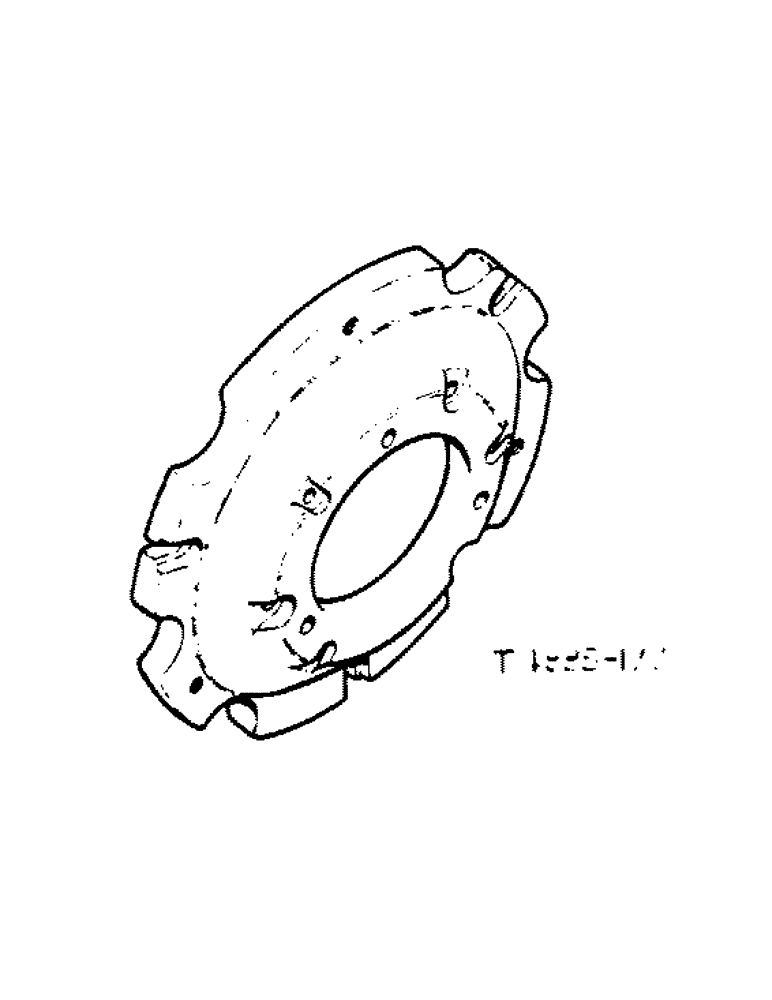

Запчасти Case IH 444 (6-71) - WEIGHTS, REAR WHEEL (09) - CHASSIS

3069683R91

ATTACHMENT, rear wheel weight comprising: For use with WHEELS 3049758R91

1шт.

3069692R1

WEIGHT

rear wheel

4шт.

3069693R1

BOLT

rear wheel weight

6шт.

102639

NUT,5/8"-11, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

3069684R91

ATTACHMENT, rear wheel weight comprising: For use with WHEELS 3049758R91

1шт.

3069692R1

WEIGHT

rear wheel

6шт.

3069693R1

BOLT

rear wheel weight

6шт.

102639

NUT,5/8"-11, G5

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

3069685R91

ATTACHMENT, rear wheel weight comprising: For use with WHEELS 3049758R91

1шт.

3069692R1

WEIGHT

rear wheel

8шт.

3069693R1

BOLT

rear wheel weight

6шт.

NLS

NO LONGER SERVICED

5/8" x 2-1/2" hex. hd.

6шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16"x.074

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

3069686R91

ATTACHMENT, rear wheel weight comprising: For use with WHEELS 3049758R91

1шт.

3069692R1

WEIGHT

rear wheel

10шт.

3069693R1

BOLT

rear wheel weight

6шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8" x 2-1/2" hex. hd.

12шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32"x1-5/16"x.074"

30шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

3069687R91

ATTACHMENT, rear wheel weight comprising: For use with WHEELS 3049217R93

1шт.

3069692R1

WEIGHT

rear wheel

12шт.

271567

BRACKET,Hex, 5/8" - 11 x 3 1/4", Gr 5

hex. hd. 5/8" x 3-1/4"

6шт.

102639

NUT,5/8"-11, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32"x1-5/16"x.074"

6шт.

3069688R91

ATTACHMENT, rear wheel weight comprising: For use with WHEELS 3049217R93

1шт.

3069692R1

WEIGHT

rear wheel

4шт.

3069695R1

BOLT

rear wheel weight

6шт.

102639

NUT,5/8"-11, G5

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074"

12шт.

3069689R91

ATTACHMENT, rear wheel weight comprising: For use with WHEELS 3049217R93

1шт.

3069692R1

WEIGHT

rear wheel

6шт.

3069695R1

BOLT

rear wheel

6шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/6" x .074

18шт.

3069690R91

ATTACHMENT, rear wheel weight comprising: For use with WHEELS 3049217R93

1шт.

3069692R1

WEIGHT

rear wheel

8шт.

3069695R1

BOLT

rear wheel weight 8" long

6шт.

NLS

NO LONGER SERVICED

5/8" x 2-1/2" hex. hd.

6шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074"

24шт.

3069691R91

ATTACHMENT, rear wheel weight comprising: For use with Wheels 3049217R93

1шт.

3069692R1

WEIGHT

rear wheel

10шт.

3069695R1

BOLT

rear wheel weight

6шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8" x 2-1/2" hex. hd.

12шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074"

1шт.

ref

Part No.

English

1шт.

3040051R91

ATTACHMENT, front wheel weight (Single set) (4.50x16) (As required) (5.50x16) comprising:

1шт.

3040050R1

WEIGHT

front wheel (44 lbs) attachment

2шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2" x 2-3/4" hex. hd., front wheel weight attachment

8шт.

102637

NUT,1/2"-13, G5

Front wheel weight attachment 1/2"-13, G5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Front wheel weight attachment 1/2"

8шт.

3040052R91

ATTACHMENT, front wheel weight (2nd set) (4.50x16) (As required) (5.50x16) comprising:

1шт.

3040050R1

WEIGHT

front wheel (44 lbs) attachment

2шт.

17783R1

BOLT,Hex, 1/2" - 13 x 4 5/8", Gr 2

1/2" x 4-5/8" hex. hd., front wheel weight attachment

8шт.

3069263R91

PISTON RING SET

ATTACHMENT, front wheel weight (double set) comprising:

1шт.

3040050R1

WEIGHT

front wheel attachment

4шт.

17783R1

BOLT,Hex, 1/2" - 13 x 4 5/8", Gr 2

1/2"x4-5/8" hex. hd., front wheel weight attachment

8шт.

ref

Part No.

English

1шт.

3070687R91

ATTACHMENT, exhaust pipe, downswept (As required)

1шт.

1

3044044R95

PIPE

exhaust cpte., downswept attachment

1шт.

2

704621R1

CLAMP

exhaust pipe downswept attachment

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Downswept exhaust pipe attachment Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

Downswept exhaust pipe attachment 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Downswept exhaust pipe attachment 3/8"

1шт.

3

3106834R1

MUFFLER

SILENCER, exhaust cpte.,, downswept exhaust pipe attachment

1шт.

4

3068010R1

CLAMP

muffler outlet pipe support, downswept exhaust pipe attachment

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Downswept exhaust pipe attachment Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

Downswept exhaust pipe attachment 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Downswept exhaust pipe attachment 3/8"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(For Footplate L.H.), Downswept exhaust pipe attachment Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(For Footplate R.H.), Downswept exhaust pipe attachment Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

5

3119764R1

SHIELD

cpte heat - ALTERNATOR PROTECTION - downswept exhaust pipe attachment

1шт.

ref

Part No.

English

1шт.

3072188R91

ATTACHMENT, fuel filter element (As required) comprising:

1шт.

3044506R92

ELEMENT

fuel filter attachment

6шт.

ref

Part No.

English

1шт.

3068243R91

CAP

exhaust muffler rain attachment

1шт.

ref

Part No.

English

1шт.

3066047R91

HOOD

CAP, rain cleaner air

1шт.
