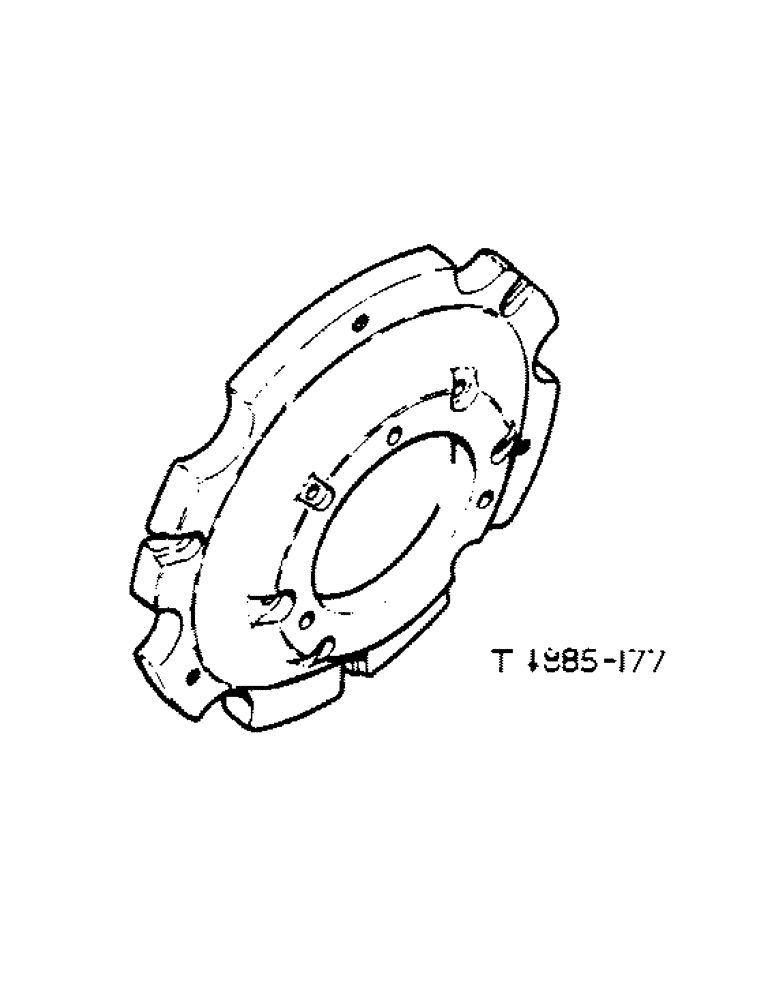

Запчасти Case IH 444 (6-69) - WEIGHTS, REAR WHEEL (09) - CHASSIS

3073866R91

ATTACHMENT, rear wheel weight comprising: For use w/WHEELS 3049758R92

1шт.

3069692R1

WEIGHT

rear wheel

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex. hd. 5/8" x 3-1/4", Course Threads

6шт.

102639

NUT,5/8"-11, G5

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .074"

6шт.

704156R1

WASHER

SPACER, taper washer

6шт.

3073867R91

ATTACHMENT, rear wheel weight comprising: For use w/WHEELS 3049758R92

1шт.

3069692R1

WEIGHT

rear wheel

4шт.

3069695R1

BOLT

hex. hd. 5/8" x 6-1/2"

6шт.

102639

NUT,5/8"-11, G5

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16"x.074"

12шт.

3073868R91

ATTACHMENT, rear wheel weights comprising: For use w/WHEELS 3049758R92

1шт.

3069692R1

WEIGHT

rear wheel

6шт.

3069695R1

BOLT

hex. hd. 5/8" x 6-1/2"

6шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16"x.074"

18шт.

3073869R91

ATTACHMENT, rear wheel weight comprising: For use w/WHEELS 3049758R92

1шт.

3069692R1

WEIGHT

rear wheel

8шт.

3069695R1

BOLT

hex. hd. 5/8"x6-1/2"

6шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

hex. hd. 5/8"x2-1/2"

6шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32"x1-5/16"x.074"

24шт.

3073870R91

ATTACHMENT, rear wheel weight comprising: For use w/WHEELS 3049758R92

1шт.

3069692R1

WEIGHT

rear wheel

10шт.

3069695R1

BOLT

hex. hd. 5/8"x6-1/2"

6шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

hex. hd. 5/8"x2-1/2"

12шт.

102639

NUT,5/8"-11, G5

12шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32"x1.5/16"x.074"

30шт.
