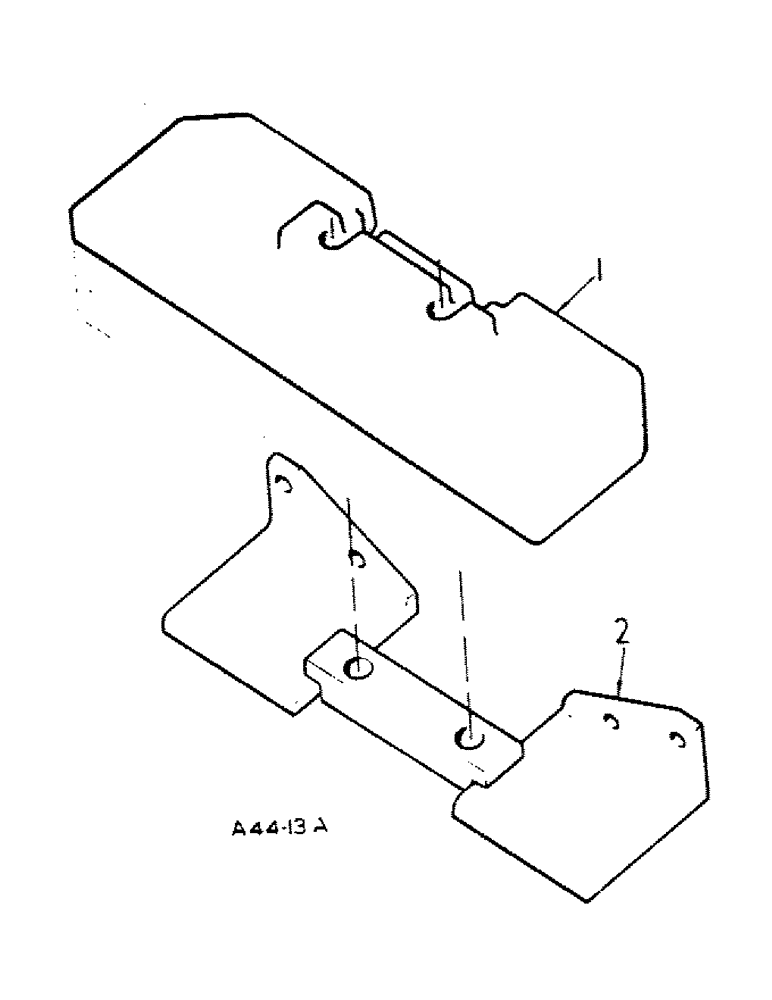

Запчасти Case IH 444 (6-68) - FRONT END WEIGHT ATTACHMENT (09) - CHASSIS

3112005R2

ATTACHMENT, front end weight , 3 weights

1шт.

3112006R2

ATTACHMENT, front end weight, 5 weights

1шт.

1

3112007R2

WEIGHT

front end

3шт.

20173R1

BOLT

3/4 x 6-3/4

2шт.

425-1012

NUT,3/4"-10, G5

3/4 hex.

2шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

2шт.

1

3112007R2

WEIGHT

front end

5шт.

20173R1

BOLT

3/4 x 10 hex. hd.

2шт.

220081

NUT

3/4 hex.

2шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

3/16 x 1-1/2

2шт.

2

3112563R1

SUPPORT

front and weight

1шт.

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

7/8 x 2 hex hd

2шт.

170887

SPARE PART

BOLT, 1/2 x 13/4

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

ref

Part No.

English ATTACHMENT, front wheel (Use w/750 - 16 tyres)(Factory application)

1шт.

751734R91

WHEEL ASSY.

WHEEL, front rim and disc 550F-16

2шт.

3114166R91

WHEEL ASSY.

WHEEL, front rim and disc 550F-16 (Optional) ATTACHMENT, front wheel (Use w/6.00-16 tyres)

2шт.

704675R91

RIM

WHEEL, front rim and disc 450-16

2шт.

3048866R91

WHEEL

front rim and disc 450-16 (Optional)

2шт.
