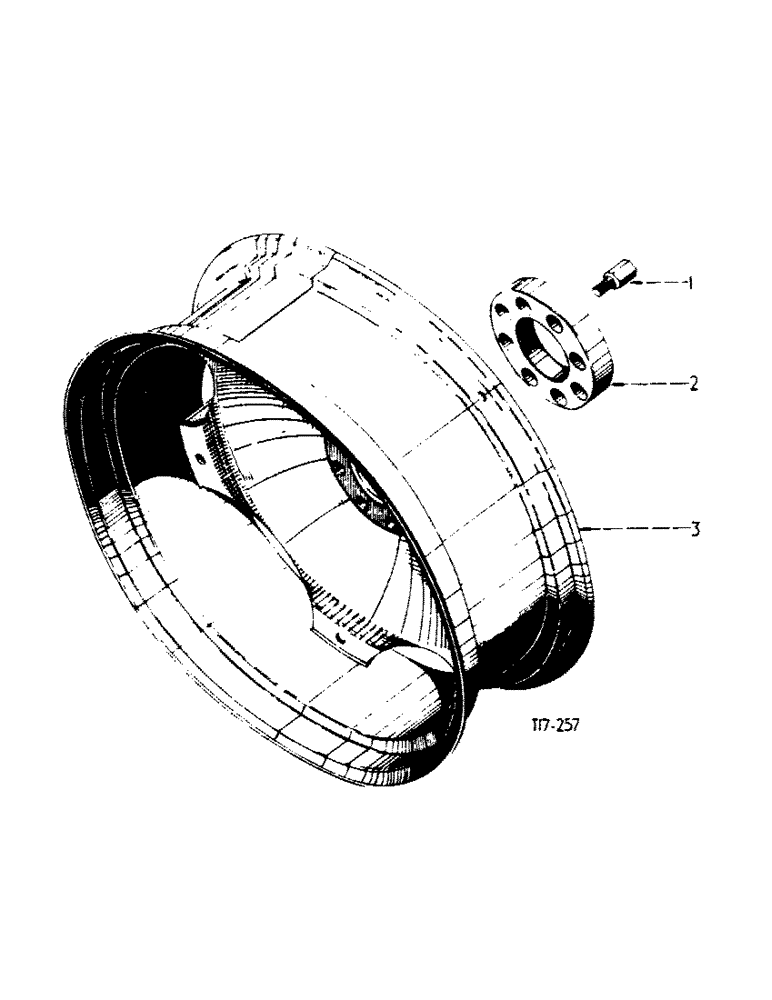

Запчасти Case IH 444 (6-66) - DUAL REAR WHEEL ATTACHMENT (09) - CHASSIS

3042293R91

ATTACHMENT, dual rear wheel 9-28

1шт.

1

707706R1

NUT

wheel spacer, special

16шт.

2

707707R1

SPACER, wheel

2шт.

3

3048867R91

WHEEL ASSY.

WHEEL, cpte., rim and disc, rear

1шт.

(W9 x 28) comprising only

4шт.

3

3042291R92

RIM

WHEEL, cpte., rim and disc, rear

1шт.

(W9x28) comprising only

4шт.

BOLT 3073908R1

6шт.

DISC 3042290R1

1шт.

NUT 121358

6шт.

RIM 703928R92

1шт.

WASHER 703931R1

6шт.

3073908R1

BOLT

5/8" UNF (Sq. nk)

24шт.

3042290R1

DISC

rear wheel

4шт.

121358

YOKE

hex. 5/8" UNF (for sq. nk bolt)

24шт.

703928R92

RIM

cpte., rear wheel (W9 x 28)

1шт.

703931R1

WASHER

rear wheel rim bolt

24шт.

ref

Part No.

English

1шт.

3069487R91

ATTACHMENT, rear wheel, tyre and tube (12-24 (Agricultural) (Factory application) comprising:

1шт.

3049216R91

RIM

and DISC, rear wheel, W12-24 comprising:

2шт.

703929R1

BOLT,5/8" - 18 x 2 7/8"

rear wheel rim

12шт.

3061824R1

DISC

rear wheel (Agricultural)

2шт.

703930R2

NUT

rear wheel rim bolt

12шт.

3061823R91

RIM

rear wheel

2шт.

703931R1

WASHER

rear wheel rim bolt

12шт.

ref

Part No.

English

1шт.

3069488R91

ATTACHMENT, rear wheel, tyre and tube Industrial

1шт.

3049217R93

WHEEL ASSY.

DISC and RIM, rear wheel W12-24 comprising:

2шт.

703992R1

WASHER

BOLT, rear wheel rim

6шт.

3061825R1

DISC

rear wheel (Industrial)

1шт.

703930R2

NUT

rear wheel rim bolt

6шт.

3072901R91

RIM

rear wheel

1шт.

703931R1

WASHER

rear wheel rim bolt

6шт.

ref

Part No.

English

1шт.

707711R92

ATTACHMENT, Rear wheel W11-28 consists:

1шт.

3048868R92

WHEEL, cpte. rear, rim & disc 11-28

2шт.

3042292R92

WHEEL ASSY

WHEEL, cpte. rear rim & disc 11-28 consists of:

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear rim wheel mtg.

12шт.

3042290R1

DISC

rear wheel

2шт.

425-110

rear wheel rim bolt

12шт.

707703R92

RIM

cpte. rear wheel

2шт.

406952R1

WASHER

rear rim bolt

12шт.
