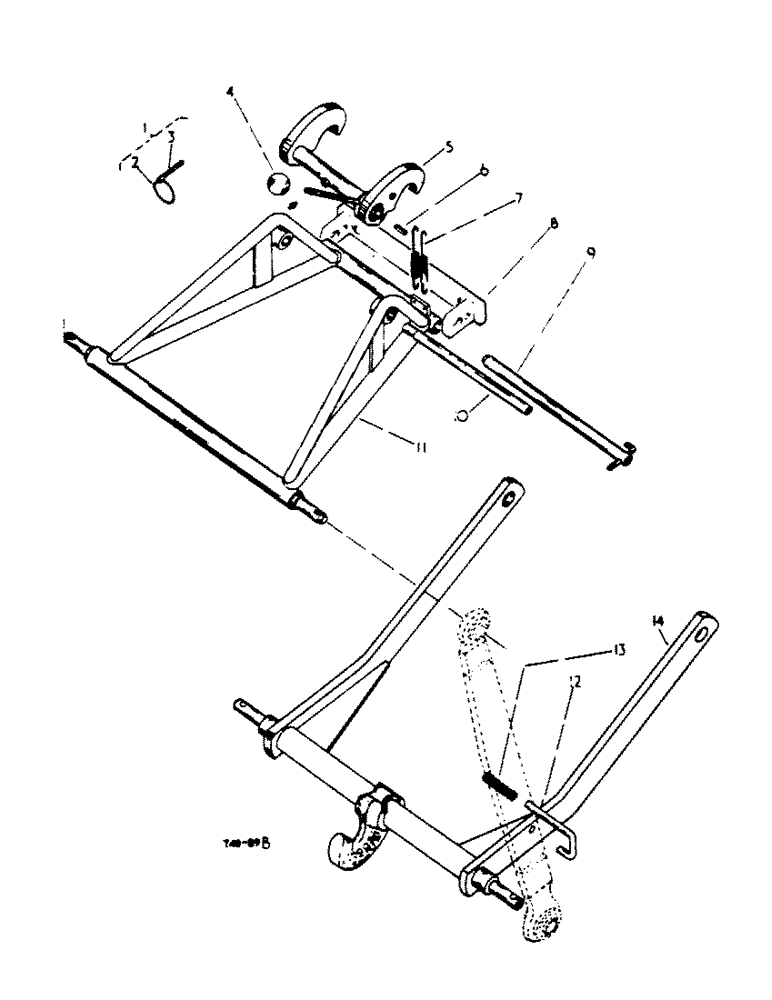

Запчасти Case IH 444 (6-08) - AUTOMATIC HITCH ATTACHMENT (09) - CHASSIS

3064664R91

ATTACHMENT, automatic hitch Can only be fitted to tractor fitted w/Vary Touch Hyd. Lift Attach. Swinging Drawbar Attach and Three Point Linkage

1шт.

1

704212R91

COTTER PIN

COTTER, w/COTTER 700531R1 and RING 704187R1 cpte., implement

1шт.

2

704187R1

LOCKING RING

RING, implement cotter, snap

1шт.

3

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

4

3063270R1

KNOB

BALL, 1-1/2" dia.

1шт.

5

3064679R92

LATCH

radius

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Opt. 1/8"-27 x .66 lg

1шт.

6

- NOT USED -

1шт.

7

3064687R1

SPRING

tension

2шт.

8

3064688R12

BRACKET

assy., pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

3064691R11

PIN

cpte., pivot

1шт.

10

3068860R1

PIVOT

SHAFT, pivot

1шт.

11

3064670R93

ARM

cpte., radius

1шт.

12

704281R2

PIN

automatic hitch retainer

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

575808R1

WASHER

19/32" x 1" x 16 ga. plain

1шт.

13

704282R2

SPRING

automatic hitch retainer

1шт.

14

3064665R92

HOOK

cpte., trailer

1шт.

3064669R92

ARM

cpte., radius comprising:

1шт.

ARM 3064670R93

1шт.

BALL 3063270R1

1шт.

BOLT 179839

2шт.

LATCH 3064679R92

1шт.

LUBRICATOR 138322H

1шт.

SHAFT 3064686R1

1шт.

SPRING 3064687R1

2шт.

WASHER PO10532

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

PO10532

WASHER

13/32" x 1-1/4" x 11 ga. plain

2шт.
