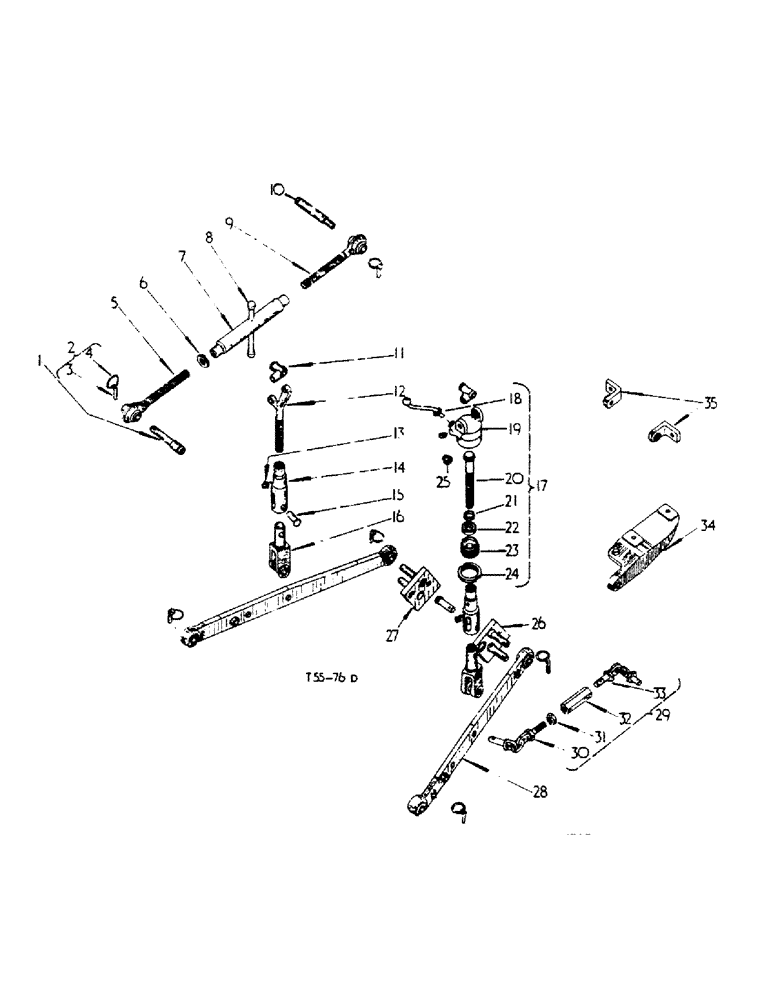

Запчасти Case IH 444 (6-06) - THREE POINT LINKAGE ATTACHMENT, DOMESTIC AND CANADA (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
3070830R91
ATTACHMENT, three point linkage (As required) Used only with Hydraulic Lift Attachment (Vary Touch)
1шт.
3044339R91
LINK
top, cpte., comprises:
1шт.
EYEBOLT 704178R21
1шт.
EYEBOLT 704177R21
1шт.
HANDLE 3074660R11
1шт.
NUT 218445
1шт.
TURNBUCKLE 3044340R1
1шт.
1
3074755R1
PIN
top link, (Cat.1.)
1шт.
3074763R1
RETAINER
CIRCLIP
1шт.
2
517758R91
SPLIT PIN/SAFETY PIN
COTTER, assy Opt.
4шт.
2
704212R91
COTTER PIN
COTTER, implement cpte., w/RING Opt. 704187R1 and COTTER Opt.
1шт.
700531R1 Opt.
4шт.
3
700531R1
NO LONGER SERVICED
COTTER, implement
4шт.
4
704187R1
LOCKING RING
RING, clip, implement cotter
4шт.
5
704178R21
BOLT
EYEBOLT, top link, assy., (Cat.1.)
1шт.
6
218445
NUT,Jam, 1"-8, G5
jam, hex., 1" (cad. pltd.)
1шт.
7
3044340R1
BUCKLE
TURNBUCKLE, top link
1шт.
8
3074660R11
HANDLE
cpte.
1шт.
9
704177R21
BOLT
EYEBOLT, top link, assy., (Cat.11)
1шт.
10
3074756R1
PIN
top link (Cat.11)
1шт.
3074763R1
RETAINER
CIRCLIP
1шт.
11
704207R3
PIVOT
SWIVEL, lift rod
2шт.
3069069R1
PIN
5/8" x 3-3/4" std. hd.
1шт.
3044309R1
PIN
special std. hd.
1шт.
12
3044350R1
ROD
lift upper half, L.H.
1шт.
14
3045186R1
TUBE,1.5" ID, 1.906" OD, 7.8" Length
telescoping, lift rod
2шт.
15
3071482R1
PIN
std. hd. 3/4" x 2-3/8"
2шт.
720631R1
LINCH PIN
PIN, cotter
2шт.
Q3501
WASHER
25/32" x 1-1/4" x 16 ga
2шт.
16
3044352R1
FORK
lift rod
2шт.
17
3069056R93
LEVER ASSY.
ROD, lift, levelling, cpte., comprising:
1шт.
18
577943R1
CRANK, control, levelling, cpte.
1шт.
142506
LATCH
Pin, Grooved, 3/16" x 3/4", Type A
1шт.
19
3069057R2
HOUSING
BOX, gear, levelling
1шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , Opt. 1/8"-27 x .66 lg
1шт.
20
3105188R1
ROD
levelling
1шт.
21
3105187R1
COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L
crank, 1 evelling control
1шт.
22
3044346R91
BALL BEARING
ball, 1" Opt.
1шт.
3044347R91
THRUST BEARING
BEARING, thrust ball, 1" Opt.
1шт.
3044348R91
BEARING, THRUST
ball, 1" Opt.
1шт.
3068049R91
BALL BEARING
BEARING, thrust ball, 1" Opt.
1шт.
23
3069064R1
BEARING
levelling rod
1шт.
24
3069065R1
LOCK NUT
levelling rod bearing block
1шт.
25
3069063R1
GEAR
levelling box pinion
1шт.
26
3060787R11
PLATE
linkage hitch, cpte., R.H.
1шт.
NLS
NO LONGER SERVICED
hex. hd. 3/4" x 1-3/8"
2шт.
114610
LOCK WASHER,Ext Tooth, 3/4"
WASHER, LOCK, Ext Tooth, 3/4"
2шт.
27
3060786R11
PLATE
linkage, hitch, cpte., L.H.
1шт.
NLS
NO LONGER SERVICED
hex. hd. 3/4" x 1-3/8"
2шт.
114610
LOCK WASHER,Ext Tooth, 3/4"
WASHER, LOCK, Ext Tooth, 3/4"
2шт.
28
3109308R91
SWEEP
LINK, lower, assy.
1шт.
29
3048454R91
X
CHAIN, check assy comprising:
2шт.
30
3048455R91
CHAIN (AG)
END, link, check chain, cpte.
2шт.
32
3048314R1
NUT
adjustment, check chain
2шт.
33
3048456R91
CHAIN (AG)
END, tractor, check chain, cpte.
2шт.
34
3048461R1
BRACKET
check chain R.H. (Illustrated)
1шт.
3048460R1
BRACKET
check chain L.H.
1шт.
3070951R1
BOLT,Large Tee, 5/8" - 11 x 7 3/4"
"T" hd. 5/8" x 7-3/4"
4шт.
102639
NUT,5/8"-11, G5
4шт.
35
704779R3
BRACKET
check chain inner
2шт.
17439R1
BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2
hex. hd. 1/2" x 1-1/8"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
704194R2
BUSHING
BUSH, lower link
2шт.
704190R51
END
lower link cpte., (Cat.1.) (As reqd)
1шт.
704191R51
END
lower link cpte., (Cat.11) (As reqd)
1шт.
709307R92
BOLT
EYEBOLT, top link assy (Cat.1) (As reqd) comprising:
1шт.
CIRCLIP 3074763R1
1шт.
COTTER 704212R91
1шт.
EYEBOLT 704178R21
1шт.
PIN 3074755R1
1шт.
NUT 218445
1шт.
709308R92
BOLT
EYEBOLT, top link assy (Cat.11 end) (As required) comprising:
1шт.
CIRCLIP 3074763R1
1шт.
COTTER 704212R91
1шт.
EYEBOLT 704177R21
1шт.
PIN 3074756R1
1шт.
