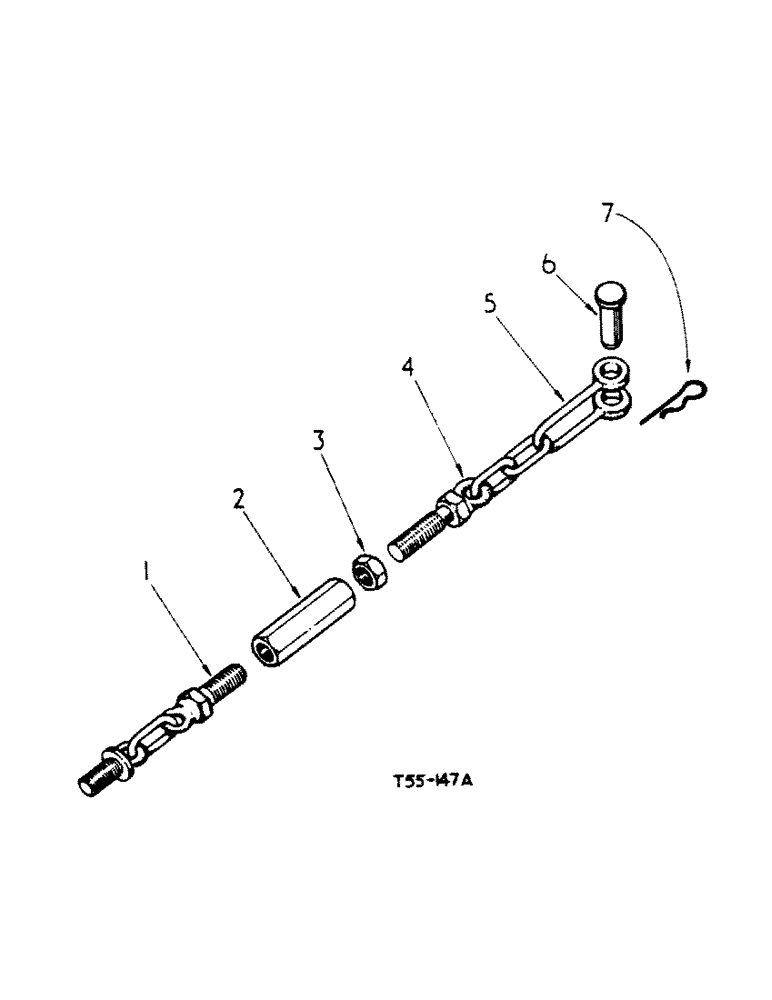

Запчасти Case IH 444 (6-03) - HEAVY DUTY CHECK CHAIN ATTACHMENT (09) - CHASSIS

3068166R91

ATTACHMENT, heavy duty check chain (As required) (Not serviced) each comprising: Used only with Three Point Linkage Attachment and Vary Touch Hydraulic Lift Attachment

1шт.

3068168R92

CHAIN, heavy duty, check, assy., each comprising:

2шт.

1

3073107R91

LINK

CHAIN, check, tractor end, cpte.

1шт.

425-1012

NUT,3/4"-10, G5

hex. 3/4"

1шт.

2

3048314R1

NUT

check chain adjustment

1шт.

3

218443

NUT

jam, hex., 3/4"

1шт.

4

3048309R91

CHAIN (AG)

CHAIN, check, link end, cpte.

1шт.

5

3068173R1

SHACKLE, special dee

1шт.

6

Q1237

PIN,3/4" x 2 1/2"

std. hd. 3/4" dia. x 2-1/2"

1шт.

7

720631R1

LINCH PIN

PIN, cotter Opt.

1шт.

7

520175R1

CLIP

PIN, cotter Opt.

1шт.
