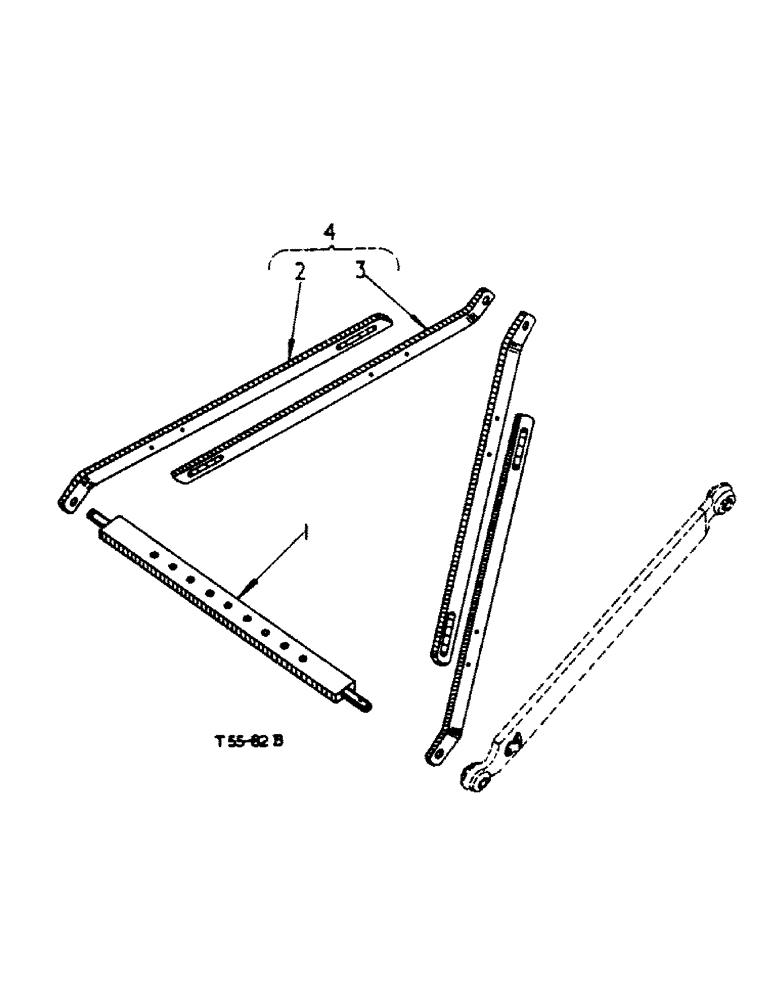

Запчасти Case IH 444 (6-02) - THREE POINT LINKAGE DRAWBAR ATTACHMENT (09) - CHASSIS

3049064R91

ATTACHMENT, three point linkage drawbar Used only with Hydraulic Lift Attachment (Vary Touch)

1шт.

1

751764R1

BAR

DRAWBAR

1шт.

2

751765R1

STRUT

lower half

2шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

1/2" x 1-3/8" hex. hd.

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32" x 1-1/16" x .095

1шт.

plain

2шт.

3

751766R1

STRUT

upper half

2шт.

4

751769R91

STRUT

cpte., comprising:

2шт.

BOLT 179884

2шт.

NUT 102637

2шт.

STRUT 751766R1

1шт.

STRUT 751765R1

1шт.

WASHER 103323

2шт.

WASHER 103343

2шт.

704187R1

LOCKING RING

RING

2шт.

700531R1

NO LONGER SERVICED

COTTER, implement

2шт.

517758R91

SPLIT PIN/SAFETY PIN

COTTER assy Opt.

2шт.

704212R91

COTTER PIN

COTTER, w/COTTER 700531R1 and

1шт.

RING 704187R1 cpte., implement Opt.

2шт.
