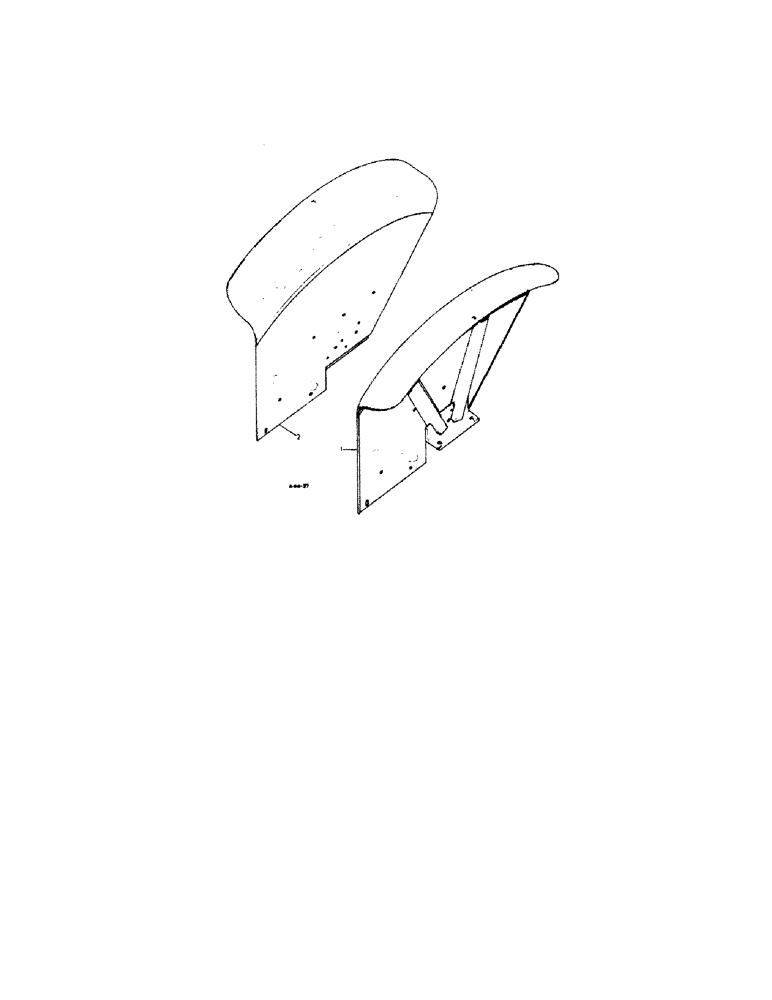

Запчасти Case IH 444 (4-34) - FENDERS, CANADIAN MARKET (09) - CHASSIS

1

3112771R1

FENDER

cpte., L.H.

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

hex. hd. 5/8" x 2"

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

3112772R1

FENDER, cpte., R.H.

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

hex. hd. 5/8" x 2"

2шт.

102639

NUT,5/8"-11, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x 812 x .051 (R.H. fender to footplate)

1шт.
