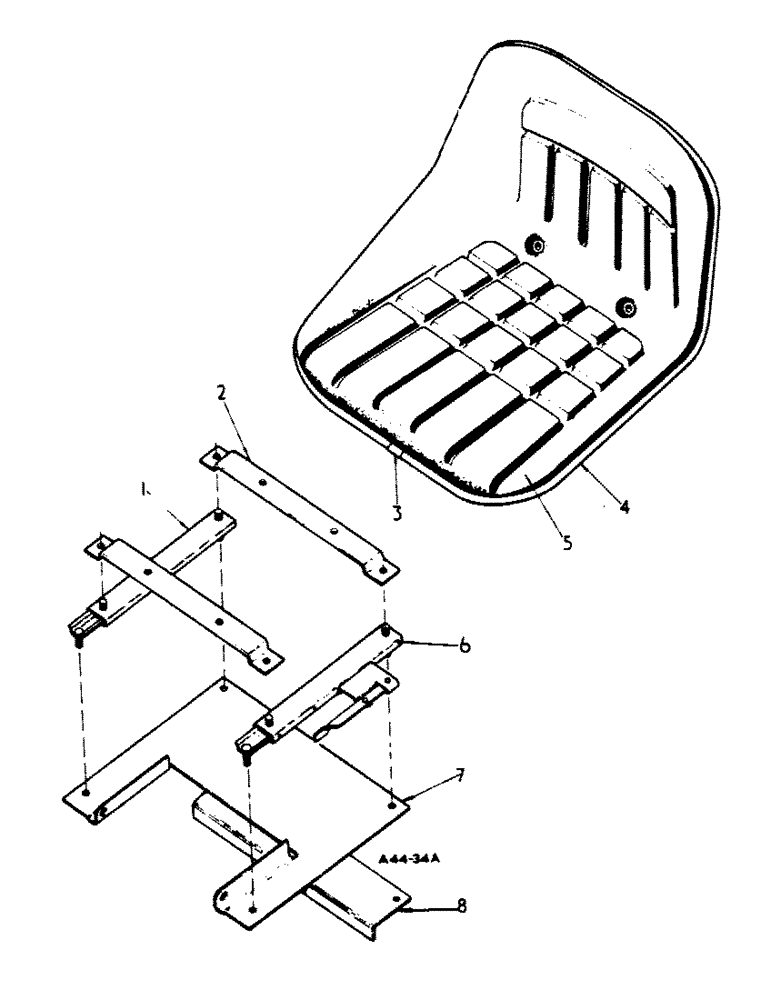

Запчасти Case IH 444 (4-32) - BOSTROM SEAT, STATIC (09) - CHASSIS

3112186R91

SEAT

bostrom static cpte., Mk.111

1шт.

1

3112740R1

RAIL

slide R.H.

1шт.

3112822R1

NUT

hex. 5/16"

4шт.

106261

WASHER,1/4"

5/16" plain

4шт.

2

3112738R1

BRACKET

mounting

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

hex. hd. 5/16" x 1/2"

4шт.

106261

WASHER,1/4"

5/16" plain

4шт.

3

825224C1

CLIP

trim

1шт.

4

NOT SERVICED

1шт.

5

3112734R1

CUSHION

SKIN and FOAM, assy

1шт.

3112741R1

PAN

assy., seat weld

1шт.

825222C1

GROMMET

2шт.

6

3112739R1

RAIL

slide L.H.

1шт.

3112822R1

NUT

hex. 5/16"

4шт.

106261

WASHER,1/4"

5/16" plain

4шт.

7

3112718R91

HINGE

platform assy.

1шт.

8

3071396R1

ANGLE

rear adjuster

1шт.

ref

Part No.

English

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2" x 1-3/4" hex. hd.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, , Attaching hardware for seat assembly 1/2"

2шт.

ref

Part No.

English

1шт.

1092828R1

PRODUCT GRAPHIC

PROGRAPH, international 444 L.H.

1шт.

1092829R1

PRODUCT GRAPHIC

PROGRAPH, international 444 R.H.

1шт.

529467R1

PRODUCT GRAPHIC

PROGRAPH, instrument face panel

1шт.

529479R1

PRODUCT GRAPHIC

PROGRAPH, "IH" grille emblem

1шт.

445201

SPRING NUT,5/32", Push-on

5/32" med.

2шт.

1092723R1

PRODUCT GRAPHIC

PROGRAPH, speed chart, Tachometer MPH

1шт.

1092724R1

PRODUCT GRAPHIC

PROGRAPH, speed chart, Tachometer KPH

1шт.

533592R1

PRODUCT GRAPHIC

PROGRAPH, governor control

1шт.

1080183R1

PRODUCT GRAPHIC

PROGRAPH, generator warning

1шт.

1092745R1

DECAL

PROGRAPH, warning

1шт.

1092745R1

DECAL

PROGRAPH, caution

1шт.

1080064R1

PRODUCT GRAPHIC

PROGRAPH, water trap

1шт.

1080394R1

PRODUCT GRAPHIC

PROGRAPH, patents

1шт.

1092581R1

TAG

inhibitor anti - freeze

1шт.

1092582R1

TAG

caution - "Radiator is drained"

1шт.

533864R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, "Diesel"

1шт.

1092746R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, model designation

1шт.

(2350)

2шт.

112365H2

PRODUCT-GRAPHIC, "Gasoline" (Canada and USA)

1шт.

1093045R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, air cleaner

1шт.

535771R1

PRODUCT-GRAPHIC

1шт.

1092905R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, anti-freeze

1шт.

1092835R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, Model Designation

1шт.

Insert 444

1шт.

ref

Part No.

English

1шт.

751905R91

GASKET

PACKAGES, chassis gasket (Diesel) consists of:

1шт.

703913R3

GASKET,0.79mm Thk

rear axle carrier

2шт.

709109R1

GASKET

rear axle brg. retainer

2шт.

703967R3

GASKET

trans. case cover rear

1шт.

703969R2

GASKET

trans. case cover front

1шт.

703971R1

GASKET

P.T.O. shaft opening cover plate

1шт.

711312R1

GASKET

P.T.O. shifter shaft hole cover plate.

1шт.

703921R1

GASKET

front wheel hub cap

2шт.

703987R1

GASKET, trans. countershaft front bearing cage

2шт.

704017R1

GASKET

trans. driving shaft bearing cage

1шт.

711254R1

GASKET

trans. driving shaft oil seal retainer

1шт.

704613R1

GASKET

exhaust pipe flange

1шт.
