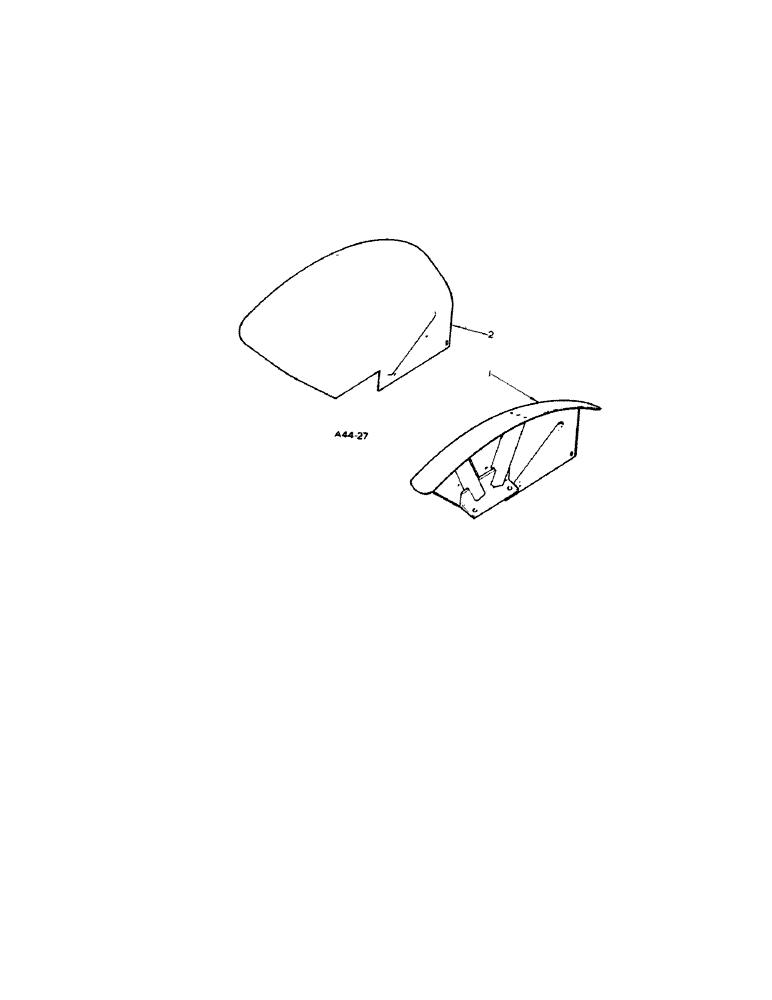

Запчасти Case IH 444 (4-31[A]) - FENDERS (09) - CHASSIS

1

3112619R1

FENDER

cpte., R.H.

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

hex. hd. 5/8" x 2

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

3112620R1

FENDER ASSY.

FENDER, cpte., L.H.

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

hex. hd. 5/8" x 2"

2шт.

102639

NUT,5/8"-11, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x 812 x .051 (RH fender to foot plate)

1шт.

708115R1

PLATE ASSY.

CLIP, cable, L.H. fender, Not Illustrated

1шт.

108122

SPARE PART

BOLT, 3/8 x 1 hex hd, Not Illustrated

1шт.

170377

NUT, 3/8 hex, Not Illustrated

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Not Illustrated 3/8"

1шт.
