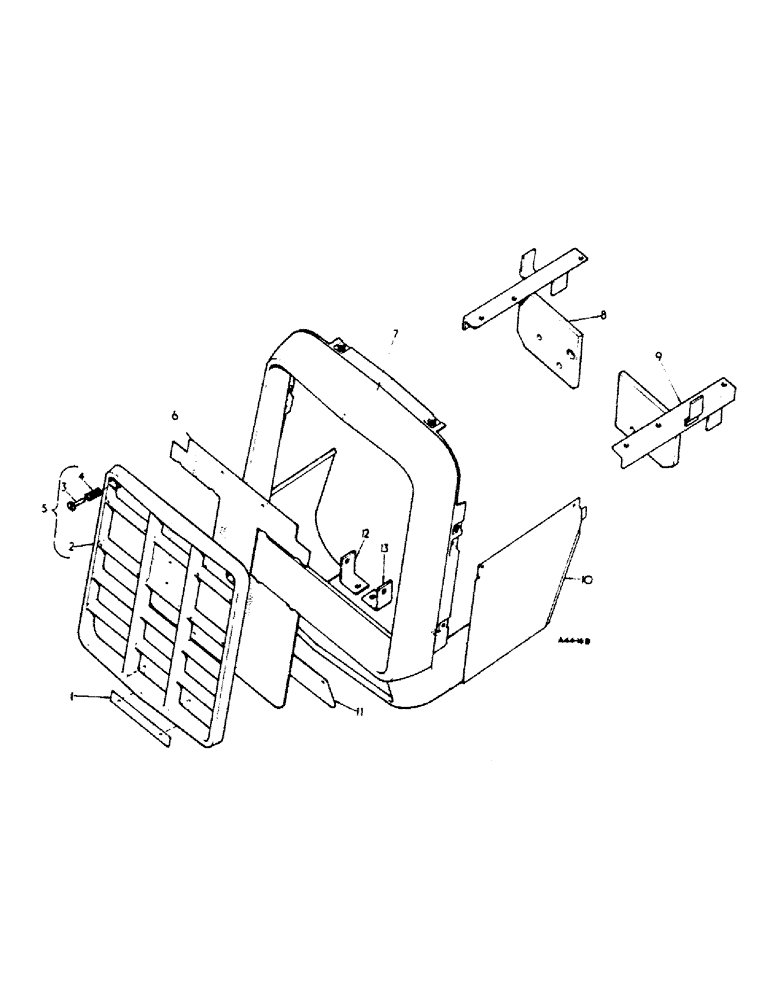

Запчасти Case IH 444 (4-02) - RADIATOR GRILLE (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
532192R1
BRACKET
grille retaining
1шт.
537163R1
BAR
grille retaining
1шт.
436750
SCREW,Slotted Pan Hd, #10-32 x 1/2"
10-24 x 1/2" slt pan hd
2шт.
20555R1
ROLL PIN
PIN, 5/32 x 1-1/4"
2шт.
23505R1
WASHER
9/32" x 5/8" x 16 ga
2шт.
2
537496R1
GRILLE
radiator
1шт.
401499R1
SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"
SCREW, hex hd tap 10-24 x 1/2"
4шт.
3
3113470R1
PIN
LATCH, assy grille
2шт.
4
532180R1
SPRING
grille latch
2шт.
5
538025R91
NO LONGER SERVICED
GRILLE AND LATCH, assy radiator
1шт.
6
528155R3
SCREEN
grille
1шт.
Q397
WASHER
11/32" x 3/4" x 16 gal
2шт.
7
3112152R1
GRILLE
HOUSING, assy radiator grille
1шт.
102635
NUT,3/8"-16, G5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
8
3112561R1
FRAME
front cpte R.H.
1шт.
14-1020
BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5
hex hd 5/8" UNF x 1-1/4"
1шт.
425-1110
NUT,5/8"-18, G5
1шт.
9
3112560R1
FRAME
front cpte L.H.
1шт.
14-1020
BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5
hex hd 5/8" UNF x 1-1/4"
1шт.
425-1110
NUT,5/8"-18, G5
1шт.
10
3112155R1
GRILLE
PANEL, assy grille side L.H. (Illust)
1шт.
3112156R1
GRILLE
PANEL, assy grille side R.H.
1шт.
109084
NUT,1/4"-20, G5
2шт.
NLS
NO LONGER SERVICED
hex hd tap 1/4" UNF x 1/2"
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
11
402406R1
PANEL
assy lower radiator grille
1шт.
157728
SCREW
1/4" x 5/8" truss hd mach
2шт.
12
3112160R1
BRACKET
grille housing angle L.H.
1шт.
179860
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5
hex hd 7/16" x 1-1/8
1шт.
425-107
NUT,7/16"-14, G5
7/16" hex
1шт.
496-21047
WASHER
lock 15/32" x 59/64" x .051"
1шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
1шт.
13
3112161R1
BRACKET
grille housing angle R.H.
1шт.
179860
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5
hex hd 7/16" x 1-1/8"
1шт.
NLS
NO LONGER SERVICED
hex 7/16"
1шт.
496-21047
WASHER
lock 15/32" x 59/64" x .051"
1шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
1шт.
538025R91
NO LONGER SERVICED
GRILLE AND LATCH, assy radiator
1шт.
Выбрано товаров: 40
