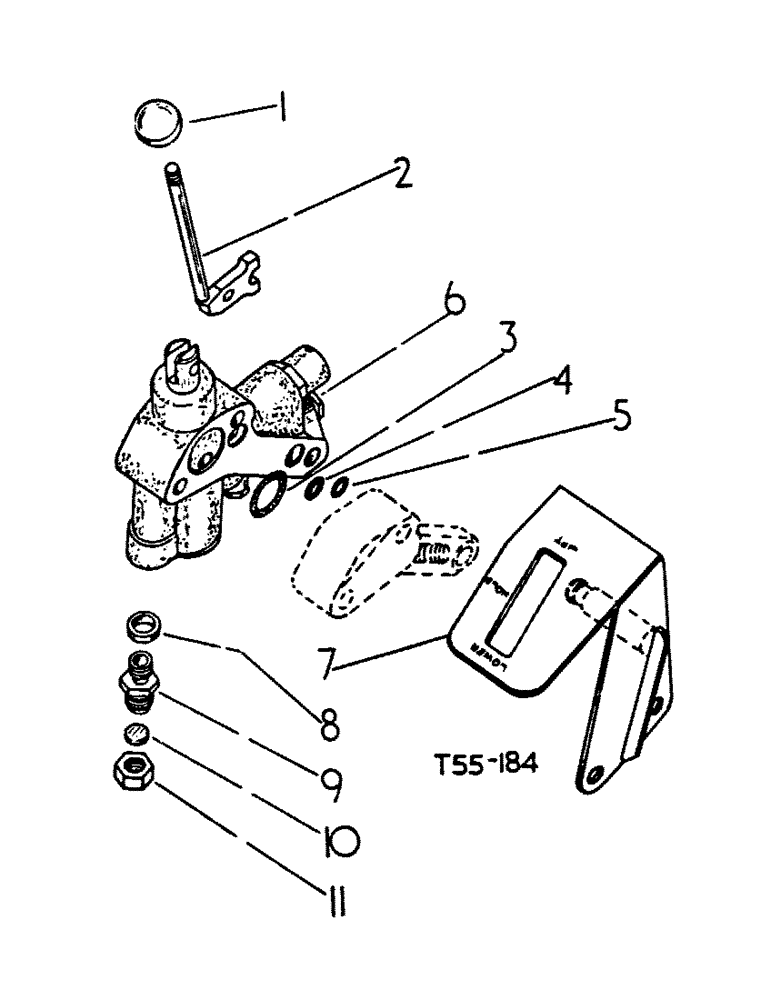

Запчасти Case IH 444 (5-28) - AUXILIARY VALVE ATTACHMENTS, WHEN ONE AUXILIARY VALVE ALREADY FITTED, KEY TO UNITS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
3069011R91
ATTACHMENT, Single Acting Ind. Aux. Valve (Domestic) (A)
1шт.
3069012R91
ATTACHMENT, Single Acting Ind. Aux. Valve (Export) (B)
1шт.
3069013R91
ATTACHMENT, Double Acting Aux. Valve (Domestic) (C)
1шт.
3069014R91
"ATTACHMENT, Double Acting Aux. Valve" (Export) (D)
1шт.
1
371602R1
KNOB
1шт.
2
3061061R91
LEVER
"ARM and LEVER, assy., L.H."
1шт.
3063983R1
HEADED PIN,5/16" x 1"
"PIN, 5/16" dia. x 1" std.hd."
1шт.
107763
COTTER PIN,1/8" x 5/8"
PIN, SPLIT (COTTER), 1/8" x 5/8"
1шт.
3
380794R1
O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro
"O RING, 1" x 1-1/4" x 1/8"
1шт.
3110297R1
RETAINER
"RETAINER, "O" RING"
1шт.
4
3067183R1
O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro
"O RING, 7/16" x 5/8" x 3/32"
1шт.
5
702788R1
O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro
"O RING, 3/8" x 9/16" x 3/32"
1шт.
6
3069019R92
LOCK VALVE
"VALVE, Single Acting Ind. Aux. (A.B.)"
1шт.
6
3069020R92
CONTROL VALVE
VALVE, Double Acting Aux. (C.D.)
1шт.
7
3069017R91
BRACKET
and Control lever pivot assy., (A.C.)
1шт.
7
3069018R91
LEVER
BRACKET, and Control lever pivot assy, (B.D.)
1шт.
20507R1
BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5
3/8" x 6-3/4" hex. hd. (B2.D2)
1шт.
186290
BOLT (SPREADER)
BOLT, 3/8" x 6" hex. hd. (B.D.)
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, (B3.D3.) 3/8"
1шт.
20506R1
BOLT,Hex, 3/8" - 16 x 6", Gr 5
3/8" x 6-3/4" hex. hd. (A.C.) (Cad. or zinc pltd)
1шт.
20508R1
BOLT
3/8" x 6" hex. hd. (A2.C2) (Cad. or zinc pltd)
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, (A3.C3.) 3/8"
1шт.
8
704743R91
SEALING WASHER
WASHER, Dowty (A.B.)
1шт.
9
702270R2
ADAPTER
ADAPTOR, hose (A.B.)
1шт.
10
703619R1
GASKET
blanking off nut (A.B.)
1шт.
11
703618R1
NUT
blanking off (A.B.)
1шт.
3110307R91
O-RING
PACKAGE, "O" ring service (As reqd) comprising:
1шт.
"O" RING 380794R1
1шт.
RETAINER 3110297R1
1шт.
Выбрано товаров: 29
