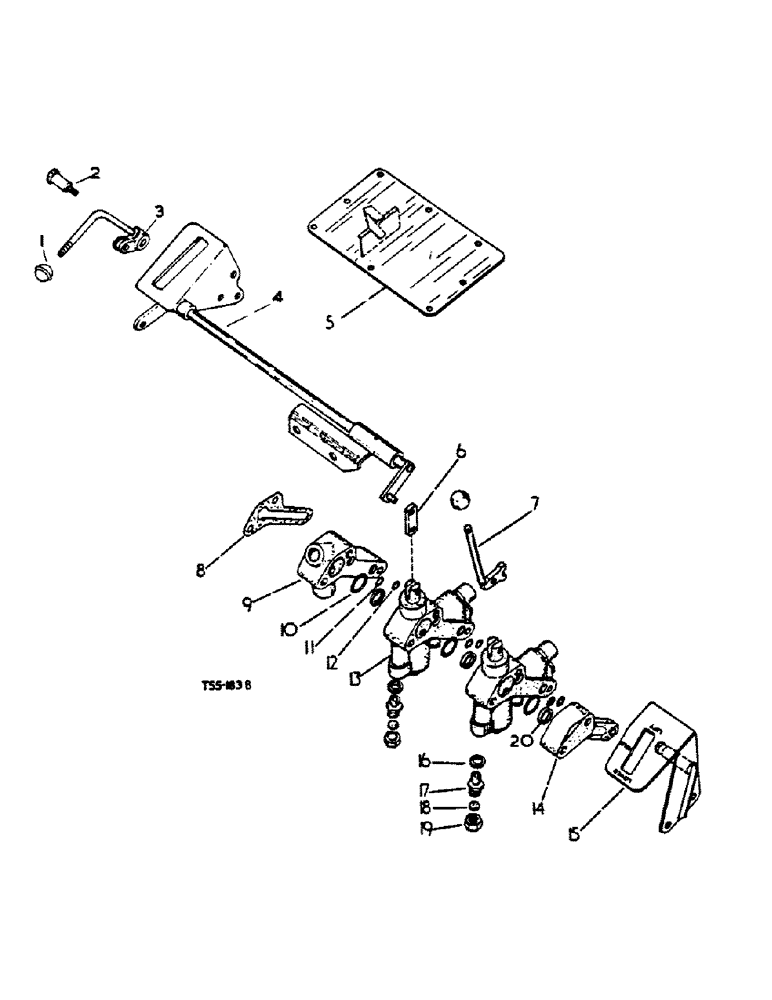

Запчасти Case IH 444 (5-25) - AUXILIARY VALVE ATTACHMENTS, WITH TWO S.A. OR TWO D.A. VALVES, KEY TO UNITS (08) - HYDRAULICS

3070858R91

ATTACHMENT, Single Acting Aux. Valve (Domestic) (A)

1шт.

3070859R91

ATTACHMENT, Single Acting Ind. Aux. Valve (Export) (B)

1шт.

3070860R91

ATTACHMENT, Double Acting Aux. Valve (Domestic) (C)

1шт.

3070861R91

ATTACHMENT, Double Acting Aux. Valve (Export) (D)

1шт.

1

371602R1

KNOB

2шт.

2

3067252R1

SPINDLE, control lever (A.B.)

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8" x 1-1/8" hex. hd. (A2.C2). (Cad. or zinc. pltd.)

1шт.

120377

NUT,3/8" - 16, Gr 5

(AC) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (A3.C3) 3/8"

1шт.

3

3114786R1

LEVER

cpte., R.H. control

1шт.

3066427R1

PIN

5/16" x 7/8" std. hd.

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

4

3069015R91

SHAFT, assy., cross (A.C.)

1шт.

4

3069016R91

SHAFT

assy., cross (B.D.)

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2" x 2-3/4" hex. hd.

2шт.

102635

NUT,3/8"-16, G5

(B.D.) 3/8"-16, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B.D.) 3/8"

1шт.

Q1505

WASHER

13/32" x 1" x 16ga plain (B.D.)

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, 3/8 UNC x 1-3/8 hex hd

2шт.

5

3044366R12

PLATE

top cover welded assy

1шт.

6

3061040R1

LINK

connecting

1шт.

3063983R1

HEADED PIN,5/16" x 1"

PIN, std.hd. 5/16" x 1"

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

7

3061061R91

LEVER

ARM and LEVER assy L.H.

1шт.

3063983R1

HEADED PIN,5/16" x 1"

PIN, 5/16" dia. x 1" std. hd.

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

8

3061055R2

GASKET

1шт.

9

3069023R1

BLOCK

adaptor Furnished with completing PACKAGE 3108929R91 only

1шт.

10

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

O RING, 1" x 1-1/4" x 1/8" Furnished with completing PACKAGE 3108929R91 only

3шт.

3110297R1

RETAINER

"O" RING Furnished with completing PACKAGE 3108929R91 only

3шт.

11

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

O RING, 7/16" x 5/8" x 3/32" Furnished with completing PACKAGE 3108929R91 only

3шт.

12

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

O RING, 3/8" x 9/16" x 3/32" Furnished with completing PACKAGE 3108929R91 only

3шт.

13

3069019R92

LOCK VALVE

VALVE, single acting Ind. Aux. (A2.B2)

1шт.

13

3069020R92

CONTROL VALVE

VALVE, double acting Aux. (C2.D2)

1шт.

14

3069021R1

PLATE

valve cover FUrnished with completing PACKAGE 3108929R91 only

1шт.

15

3069017R91

BRACKET

and CONTROL LEVER PIVOT, assy. (AC)

1шт.

15

3069018R91

LEVER

BRACKET and CONTROL LEVER PIVOT, assy. (BD)

1шт.

20507R1

BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5

3/8" x 6-3/4" hex. hd. (B2 D2)

1шт.

186290

BOLT (SPREADER)

BOLT, 3/8" x 6" hex. hd. (BD)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B3.D3) 3/8"

1шт.

20506R1

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8" x 6-3/4" hex. hd. (AC) (Cad. or zinc pltd)

1шт.

20508R1

BOLT

3/8" x 6" hex. hd. (A2.C2) (Cad. or zinc pltd)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (A3.C3) 3/8"

1шт.

18

703619R1

GASKET

blanking off nut (A.B.)

1шт.

19

703618R1

NUT

blanking off (A.B.)

1шт.

3110307R91

O-RING

PACKAGE, "O" ring service (As required) comprising: Furnished with completing PACKAGE 3108929R91 only

1шт.

"O" RING 380794R1

1шт.

RETAINER 3110297R1

1шт.
