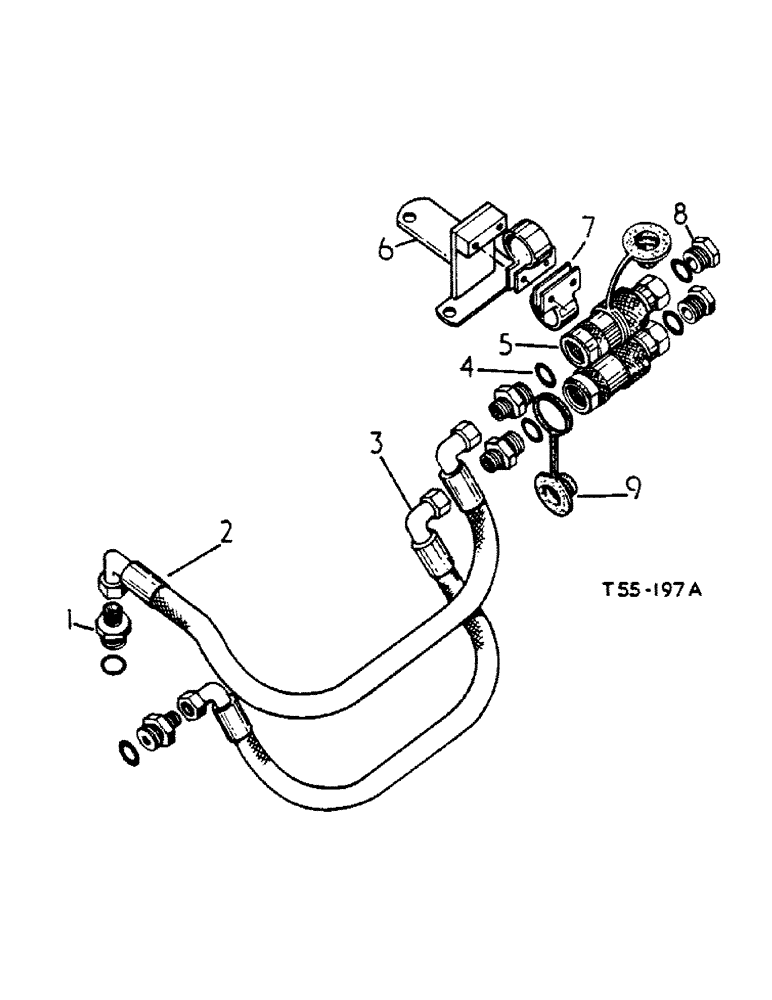

Запчасти Case IH 444 (5-17) - SELF SEALING COUPLING ATTACHMENT, DOUBLE ACTING - BREAKAWAY (08) - HYDRAULICS

3069764R91

ATTACHMENT, breakaway self sealing coupling Fitted to tractors with double acting Independent Aux. Valve Attachment

1шт.

1

3060799R2

ADAPTER

ADAPTOR hose

4шт.

2

3069765R91

HOSE

flexible

1шт.

3

3062508R91

HOSE

flexible

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

'O' RING 3/4 x 15/16 x 3/32

6шт.

5

3067991R91

BREAKER POINTS

COUPLING, cpte. breakaway

2шт.

3067993R91

COUPLING, BREAK AWAY

COUPLING, cpte. female half breakaway

2шт.

3115783R1

O-RING

'O' RING female half

1шт.

3115782R1

BACK-UP RING

back up

1шт.

3067992R91

COUPLING, BREAK AWAY

COUPLING, cpte. male half breakaway

2шт.

6

3065078R12

SUPPORT

PLATE, assy, coupling support

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

hex hd 5/16 x 1-1/2

2шт.

NLS

NO LONGER SERVICED

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

3114106R1

CLAMP

coupling

2шт.

371114R1

CLAMP

FRAME On orders for FRAME 371114R1 and CLAMP 371115R1 furnish 2 CLAMP 3114106R1 and 2 BOLT 180083 and 2 NUT 102634

1шт.

371115R1

CLAMP

On orders for FRAME 371114R1 and CLAMP 371115R1 furnish 2 CLAMP 3114106R1 and 2 BOLT 180083 and 2 NUT 102634

1шт.

8

9410360

PLUG

5/8 blanking

2шт.

9

373220R1

PLUG

SEAL, dust Opt.

2шт.

9

401757R11

PLUG

SEAL, dust

2шт.
