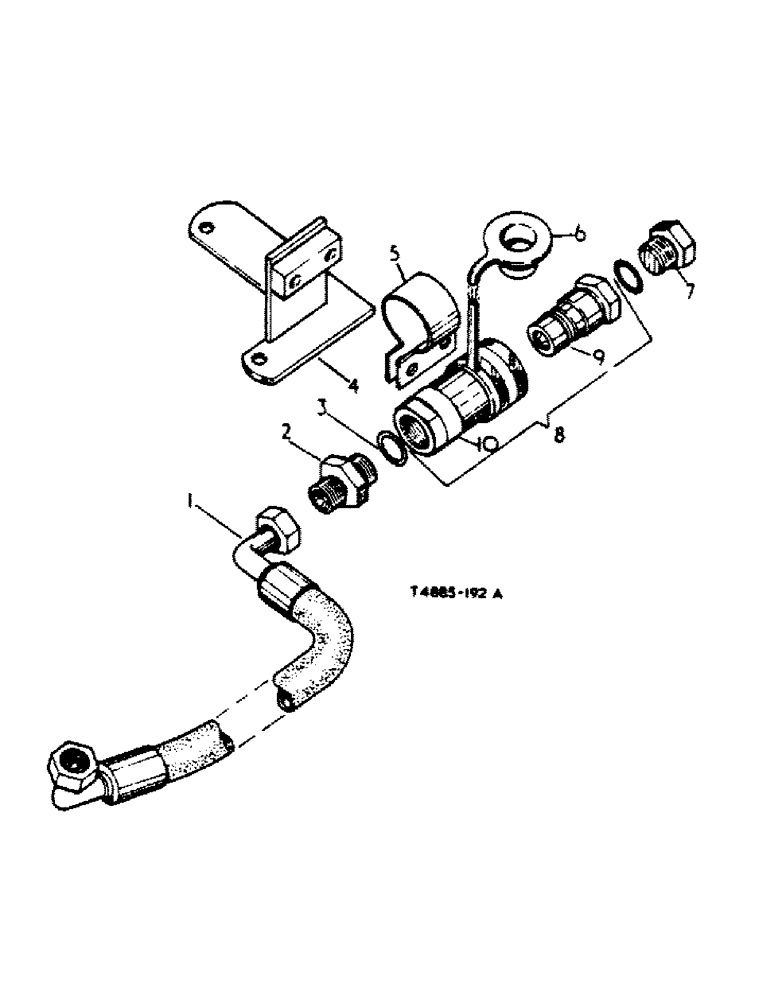

Запчасти Case IH 444 (5-16) - SELF SEALING COUPLING ATTACHMENT, SINGLE BREAKAWAY (08) - HYDRAULICS

3063992R92

ATTACHMENT, self sealing coupling Fitted w/single Acting Aux. Valve Attach.

1шт.

1

3063993R91

HOSE

flexible

1шт.

2

3060799R2

ADAPTER

ADAPTOR, hose

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

'O' RING, 3/4 x 15/16 x 3/32

2шт.

4

3065078R12

SUPPORT

PLATE, assy, coupling support

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

hex hd 5/16 x 1-1/2

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex 5/16

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

3114106R1

CLAMP

coupling

1шт.

3063989R1

CLAMP

FRAME On orders for FRAME 3063989R1 and CLAMP 3063988R1 furnish CLAMP 3114106R1 and 2 BOLT 180083 and 2 NUT 102634

1шт.

3063988R1

CLAMP

On orders for FRAME 3063989R1 and CLAMP 3063988R1 furnish CLAMP 3114106R1 and 2 BOLT 180083 and 2 NUT 102634

1шт.

6

373220R1

PLUG

SEAL, dust Opt.

1шт.

6

401757R11

PLUG

SEAL, dust Opt.

1шт.

7

9410360

PLUG

blanking 5/8

1шт.

8

3067991R91

BREAKER POINTS

COUPLING, breakaway cpte. comprising:

1шт.

9

3067992R91

COUPLING, BREAK AWAY

COUPLING, breakaway - male half cpte.

1шт.

10

3067993R91

COUPLING, BREAK AWAY

COUPLING, breakaway - female half cpte.

1шт.

3115783R1

O-RING

'O' RING female half

1шт.

3115782R1

BACK-UP RING

back up

1шт.
