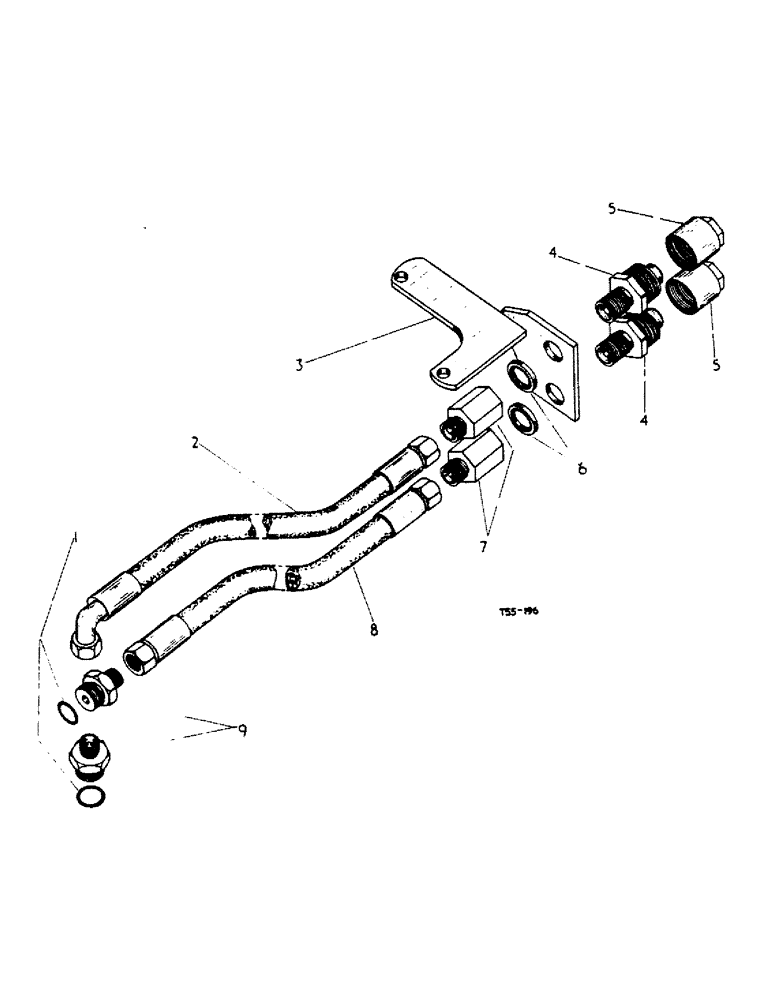

Запчасти Case IH 444 (5-15) - SELF SEALING COUPLING ATTACHMENT, DOUBLE ACTING (08) - HYDRAULICS

3069763R91

ATTACHMENT, self sealing coupling Fitted to tractors with Double Acting Independent Auxiliary Valve Attachment

1шт.

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING, 3/4" x 15/16" x 3/32"

2шт.

2

3069766R91

HOSE

flexible

1шт.

3

3065081R91

SUPPORT, assy., coupling

1шт.

4

3041962R91

COUPLING, BREAK AWAY

COUPLING, male half, self sealing Opt.

2шт.

3045135R1

RING

"O" RING

2шт.

3045134R91

SLEEVE

assy., sub.

2шт.

3045136R1

SLEEVE

tub.

2шт.

3045137R1

SPRING

2шт.

4

705579R91

COUPLING

Dowty, male half, self sealing

1шт.

Optional

2шт.

3045140R1

RING

"O" RING

2шт.

3045142R91

SLEEVE

assy., valve

2шт.

3045138R1

SPRING, locking

2шт.

3045139R1

SPRING, male half, valve

2шт.

3045141R1

VALVE

2шт.

5

3041963R1

CAP

dust Opt.

2шт.

5

705578R1

CYLINDER END CAP

CAP, coupling Opt.

2шт.

6

704337R1

SEALING WASHER

WASHER, Dowty, 1/2" BSP

2шт.

7

3063984R1

ADAPTER

ADAPTOR, Serial Range: coupling-hose

2шт.

8

3063985R91

HOSE

flexible

1шт.

9

3060799R2

ADAPTER

ADAPTOR, hose

2шт.
