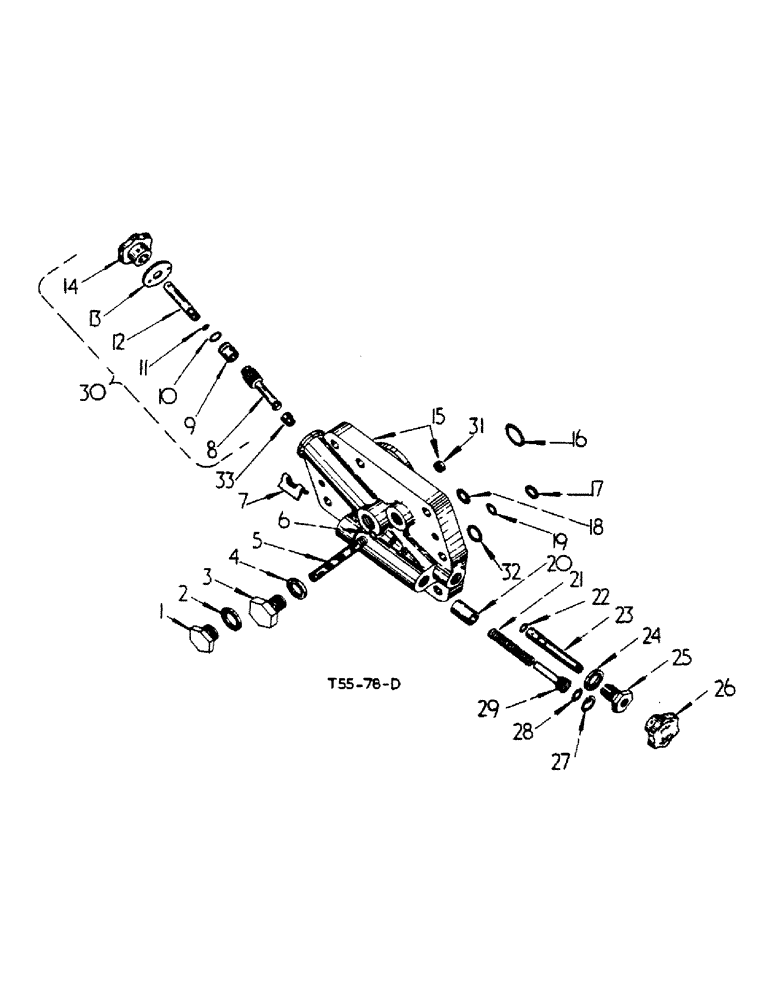

Запчасти Case IH 444 (5-09) - CYLINDER HEAD, CONTROL VALVE (08) - HYDRAULICS

3069236R97

CONTROL VALVE

VALVE, control draft (Vary touch)

1шт.

179890

LATCH

hex. hd. 1/2" x 2-1/4"

2шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex. hd. 1/2" x 2-1/2"

6шт.

179842

SPACER

BOLT, hex. hd. 3/8" x 1-3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

704743R91

SEALING WASHER

WASHER, Dowty, 1/4" B.S.P. comprising: CYLINDER HEAD VALVE BODY (See detail list)

1шт.

ref

Part No.

English

1шт.

1

706027R1

PLUG

1/2" BSP (Auxiliary Tapping)

1шт.

2

704337R1

SEALING WASHER

WASHER, sealing, 1/2" BSP

1шт.

3

751580R3

BOLT,5/8" - 18 x 5/8"

needle valve cover

1шт.

4

3045118R1

SEAL

WASHER, Dowty

1шт.

5

3047294R95

FILTER

ORIFICE, assy.

1шт.

6

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

O RING, 1/4" x 3/8" x 1/16"

1шт.

7

3045109R2

SPACER

1шт.

8

3045102R2

VALVE

isolator

1шт.

9

3045106R1

BUSHING

BUSH, isolator valve

1шт.

10

3045116R1

O-RING,0.103" Thk x 0.469" ID, Cl 6

O RING, 15/32" x 21/32"

1шт.

11

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

O RING, 7/32" x 11/32" (Class 1)

1шт.

12

3045107R1

SHAFT

isolator valve knob

1шт.

443137

AXLE PIN

PIN, groove, 5/32" x 1/2"

1шт.

13

3045104R1

PLATE

stop

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

3045113R1

KNOB

isolator valve

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

Pin, Grooved, 5/32" x 7/8", Type A

1шт.

15

3069235R91

CYLINDER

HEAD, w/PLUG, and SEAT 3067146R1 assy., cyl.

1шт.

16

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

O RING, pressure outlet 11/16" x 7/8" x 3/32" (Class 5)

1шт.

17

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"O RING, 9/16" x 3/4" x 3/32"

1шт.

18

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

"O RING, 1/4" x 3/4" (Angus)"

1шт.

19

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O RING, pressure, inlet, 7/16" x 5/8" x 3/32" (Class 6)"

1шт.

20

3045105R1

PISTON

"PISTON, speed control"

1шт.

21

3045111R1

SPRING

"SPRING, speed control piston"

1шт.

22

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

"O RING, 5/16" x 7/16" x 1/16" (Class 6)"

1шт.

23

"SPOOL, speed control Order SPOOL 3045103R11

1шт.

17136R1

LOCK PIN,3/16" x 1/2", Slotted

PIN, , Rail 3/16" x 1/2", Slotted

1шт.

24

3045118R1

SEAL

"WASHER, Dowty"

1шт.

25

"LATCH, spool Order SPOOL 3045103R11

1шт.

26

3045112R1

KNOB

"KNOB, speed control"

1шт.

142494

GUIDE

Pin, Grooved, 5/32" x 7/8", Type A

1шт.

27

3047246R1

RETAINER

"CIRCLIP, (for 11/16" dia. bore)"

1шт.

28

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O RING, 7/16" x 5/8" x 3/32"

1шт.

29

3108188R1

PLUG

"PLUG, assy.,"

1шт.

3045103R11

SPOOL

speed control comprising:

1шт.

KNOB 3045112R1

1шт.

LATCH

1шт.

PIN 17136R1

1шт.

PIN 142494

1шт.

SPOOL

1шт.

30

3045102R21

VALVE

assy., isolator comprising:

1шт.

BUSH 3045106R1

1шт.

KNOB 3045113R1

1шт.

"O" RING 23524R1

1шт.

"O" RING 3045116R1

1шт.

PIN 443137

1шт.

PIN 142494

1шт.

PLATE 3045104R1

1шт.

SHAFT 3045107R1

1шт.

VALVE 3045102R1

1шт.

31

NOT

SERVICED

1шт.

32

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

O RING, 9/16" x 3/4" x 3/32" (Class 6)

1шт.

33

3067146R1

SEAT

isolator valve

1шт.
