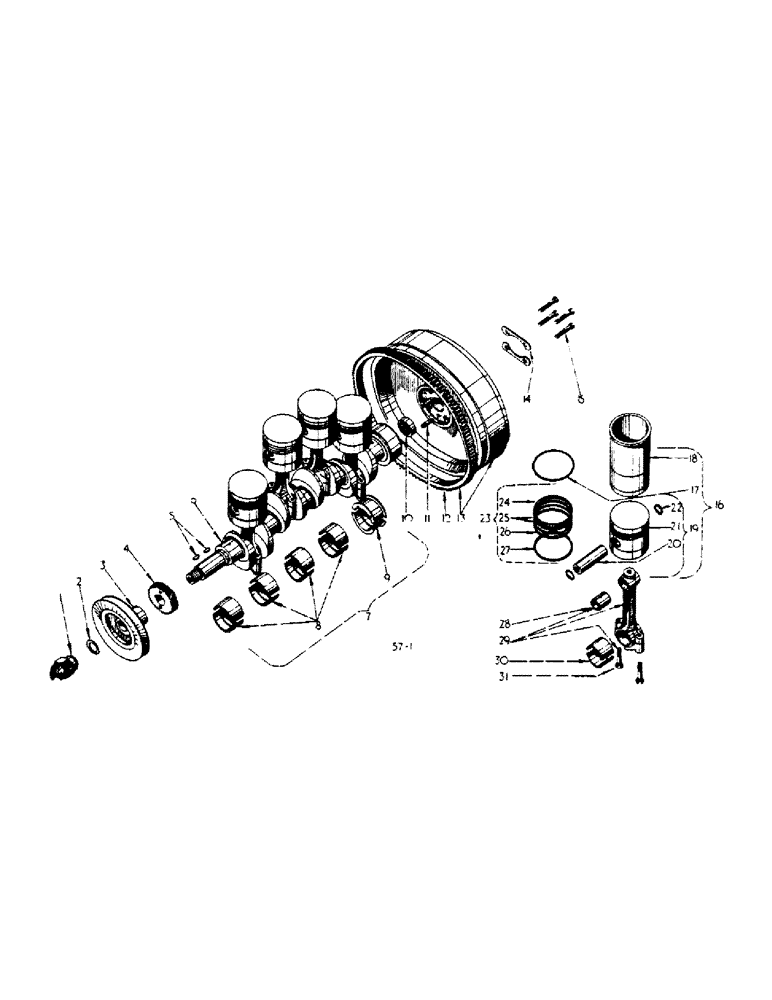

Запчасти Case IH 444 (1-07) - CRANKSHAFT, FLYWHEEL, CONNECTING RODS AND PISTONS (02) - ENGINE

1

272620

RING

starting crank

1шт.

1

3046883R1

NUT, fan drive pulley (Canadian Market)

1шт.

3

3046391R2

PULLEY

fan drive (Canadian Market)

1шт.

3

708286R1

PULLEY

fan drive

1шт.

4

703865R1

GEAR

PINION, crankshaft (33T)

1шт.

5

218211

DRIVING SPROCKET

crankshaft pinion (1 reqd for Canadian Market)

2шт.

6

CRANKSHAFT, cpte., standard, w/two, $ PIN 214550D order 3110995R91

1шт.

6

CRANKSHAFT, cpte., .015" undersize,, $ w/two PIN 24550D order, $ 3067471R91 (As reqd)

1шт.

6

CRANKSHAFT, cpte., .030" undersize, $ w/two PIN 24550D order, $ 3110996R91 (As reqd)

1шт.

708912R91

CRANKSHAFT BEARING

SET, crankshaft bearing, std. (As required) , comprising:

1шт.

BEARING 708910R91

1шт.

BEARING 3064523R11

4шт.

7

708914R91

CRANKSHAFT BEARING

SET, crankshaft bearing, .015" undersize (As required), comprising:

1шт.

BEARING 708915R91

1шт.

BEARING 3064525R11

4шт.

7

708913R91

CRANKSHAFT BEARING

SET, crankshaft bearing, .030" undersize (As required) , comprising:

1шт.

BEARING 708911R91

1шт.

BEARING 3064524R11

4шт.

8

3064523R11

CRANKSHAFT BEARING

BEARING, crankshaft, front and centre, two

1шт.

halves standard

4шт.

8

3064525R11

BEARING LINER

"BEARING, crankshaft, front and centre, two" " halves .015" undersize (As required)"

1шт.

8

3064524R11

BEARING LINER

"BEARING, crankshaft, front and centre, two" "halves .030" undersize (As required)"

1шт.

9

708910R91

BEARING ASSY

"BEARING, crankshaft, rear, two halves standard"

1шт.

9

708915R91

BEARING ASSY

"BEARING, crankshaft, rear, two halves .015" undersize (As required)

1шт.

9

708911R91

BEARING ASSY

"BEARING, crankshaft, rear, two halves, .030" " undersize, (As required)"

1шт.

10

708909R93

BALL BEARING,20 mm ID x 47 mm OD x 14"

"BEARING, clutch pilot (Fischer) Opt."

1шт.

10

751846R93

BALL BEARING

"BEARING, clutch pilot (R&M) Opt."

1шт.

10

751848R93

NO LONGER SERVICED

"BEARING, clutch pilot (Hoffman) Opt."

1шт.

10

751847R93

BALL BEARING

"BEARING, clutch pilot (Skefco) Opt."

1шт.

11

24550D

PIN

"PIN, flywheel dowel"

1шт.

11

3066811R1

"PIN, flywheel dowel for O.S.D. crankshafts" (As required)

1шт.

12

704436R1

SPROCKET

GEAR, flywheel ring

1шт.

13

3043823R11

FLYWHEEL

w/GEAR 704436R1 and two PIN 141215 STD.

1шт.

Variations of transmission builds includes FLYWHEEL See ATTACHMENTS

1шт.

14

3069118R2

SHEET

LOCK, flywheel bolt

2шт.

15

709517R1

BOLT,Hex, 7/16" - 20 x 1 3/4"

flywheel

4шт.

16

3044478R94

PISTON ASSY.

SLEEVES & PISTONS, set w/four SLEEVES and PISTONS 3044479R94

1шт.

16

3044479R94

PISTON & RINGS KIT

SLEEVE and PISTON cpte., comprising:

4шт.

PISTON 3044480R94

1шт.

RING 704100R1

1шт.

SLEEVE 3044481R3

1шт.

17

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, cylinder sleeve packing

4шт.

18

3044481R3

LINER, ENGINE CYLIND

SLEEVE, cylinder

4шт.

19

3044480R94

PISTON

assy., comprising:

1шт.

PIN 3044476R1

1шт.

PISTON 3044486R3

1шт.

$ RING

1шт.

$ RING

2шт.

$ RING

2шт.

RETAINER 704095R1

1шт.

20

3044476R1

PIN

piston

4шт.

20

3044477R1

PIN, piston, .005 oversize (As required)

1шт.

21

3044486R3

PISTON

4шт.

22

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

23

3114778R91

PISTON RING SET

SET, piston ring, comprising:

4шт.

$ RING

1шт.

$ RING

2шт.

$ RING

2шт.

24

RING, compression piston top $

1шт.

25

RING, compression, piston $

2шт.

26

RING, oil control, piston - upper $

1шт.

27

RING, oil control, piston - lower $

1шт.

28

711045R1

BUSHING

piston pin Opt.

4шт.

28

3043611R1

BUSHING

piston pin Opt.

4шт.

29

3061216R91

CONNECTING ROD

SET, connecting rod w/four ROD 3061214R91 (As required)

1шт.

29

704089R91

CONNECTING ROD

SET, connecting rod, order 3061216R91

1шт.

29

3061214R91

PITMAN ASSY.

ROD, assy., connecting, comprising:

4шт.

BOLT 3043216R1

2шт.

BUSH 711045R1

1шт.

CAP $

1шт.

ROD $

1шт.

30

3070536R11

BEARING

cpte., connecting rod, two halves

1шт.

standard

4шт.

30

3070538R11

JOURNAL

BEARING, cpte., connecting rod, two halves .015" undersize (As required)

1шт.

30

3070537R11

BEARING

cpte., connecting rod, two halves .030" undersize (As required)

1шт.

31

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

1шт.

3070546R91

BEARING LINER

SET, connecting rod bearing, standard w/four BEARING 3070536R11 (As reqd)

1шт.

3070539R91

BEARING LINER

SET, connecting rod bearing, .015" undersize w/four BEARING 3070538R11 (As reqd)

1шт.

3070547R91

CRANKSHAFT BEARING

SET, connecting rod bearing .030" undersize w/four BEARING 3070537R11 (As reqd)

1шт.

141215

PIN,5/16" x 1/2"

used w/Flywheel

2шт.

3110995R91

CRANKSHAFT

PACKAGE, service, crankshaft, standard (As required), comprising:

1шт.

$ CRANKSHAFT

1шт.

SET 708912R91

1шт.

SET 3070546R91

1шт.

3067471R91

PACKAGE, service, crankshaft, .015" undersize (As required), comprising:

1шт.

$ CRANKSHAFT

1шт.

SET 708914R91

1шт.

SET 3070539R91

1шт.

3110996R91

PACKAGE

service, crankshaft, .030" undersize (As required), comprising:

1шт.

$ CRANKSHAFT

1шт.

SET 708913R91

1шт.

SET 3070547R91

1шт.
