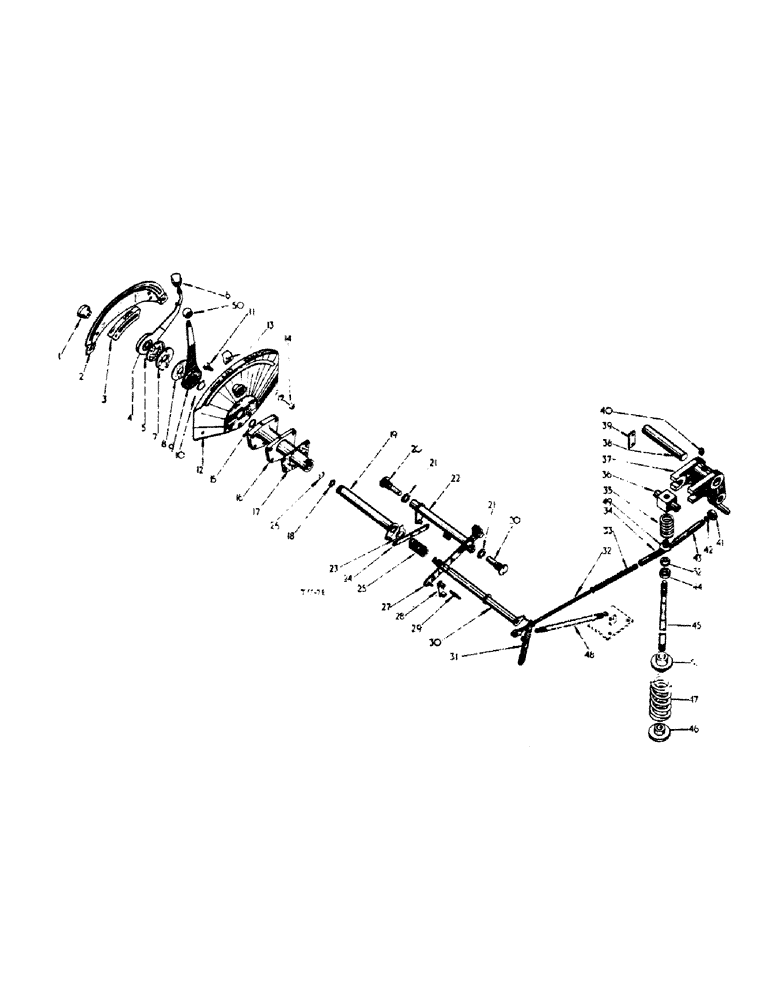

Запчасти Case IH 444 (5-05) - CONTROL LEVERS, HYDRAULIC LIFT ATTACHMENT, VARY TOUCH (08) - HYDRAULICS

1

3044389R1

NUT

control lever, stop

2шт.

2

3044387R2

STRIP

quadrant

1шт.

1080153R2

PRODUCT GRAPHIC

TRANSFER, patents

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex. hd. 5/16" x 5/8"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

3045639R11

SLIDE

assy., draft

1шт.

4

3044393R92

LEVER

w/KNOB 3109405R1 assy., control (draft)

1шт.

5

3044397R1

WASHER

friction

1шт.

6

3109405R1

KNOB

control lever

1шт.

7

3044402R1

PLATE

friction

1шт.

8

3044887R1

DISC

cotter - friction

1шт.

9

3044398R91

LEVER

w/KNOB 3063270R1 assy., control

1шт.

10

704589R1

LOCKING RING

CIRCLIP, 24mm

1шт.

11

3044388R1

STOP

control lever

1шт.

12

3044386R2

SECTOR

QUADRANT, control lever

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex. hd. 3/8" x 1-1/4"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

3072578R1

STOP

position control lever

1шт.

14

3072577R1

SCREW

soc. hd. 3/8" x 5/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Act as position control lever stop 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, plain, 13/32" x 13/16" x 16 ga.

1шт.

15

350818R1

O-RING,0.984" ID x 0.139" Width

O RING, 1" x 1-1/4" x 1/8" (Class 5)

1шт.

16

3044391R3

BRACKET

quadrant

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex hd 3/8 x 1-1/8

4шт.

19242R1

LOCK PIN,7/16" x 1 1/4", Slotted

Pin, , used w/3044391R3 7/16" x 1 1/4", Slotted

1шт.

3049399R1

PIN, 7/16 x 1-1/4 (Used w/3044391R2 and R1)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

3044392R2

GASKET

quadrant bracket

1шт.

18

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

O RING, 9/6" x 3/4" x 3/32" (Class 6)

1шт.

19

3044408R93

PISTON

SLEEVE, cpte., position control

1шт.

20

3044417R1

PIVOT,1.6" OD, 2.5" Length

cross tube

2шт.

21

709840R1

SEALING WASHER

WASHER, Dowty

2шт.

22

3044413R91

TUBE,6.84, 1.22" Length

cpte., cross, position control

1шт.

23

3044886R1

WASHER

tab

1шт.

24

3044412R1

LINK

connecting

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

95-11034

WASHER,1/4"

plain, 11/32" x 11/16" x 1/16"

2шт.

25

3044407R1

SPRING

draft control crankshaft

1шт.

26

3048955R1

RETAINER

CIRCLIP

1шт.

27

3044418R91

LINK

cpte., position control

1шт.

28

3044423R91

ARM

cpte., radius position control link

1шт.

29

751575R1

PIN

radius arm, pivot

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16" dia. x 1/2"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

3044403R92

SHAFT

CRANKSHAFT, cpte., draft control

1шт.

131426

NUT

low crown, 5/8"

1шт.

NLS

NO LONGER SERVICED

plain, 21/32" x 1-5/16"

1шт.

31

3044383R91

LINK

cpte., valve opening

1шт.

512166R1

PIN,1/4" x 7/8"

std. hd. 1/4" x 7/8"

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

32

751515R1

LINK

draft

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

95-11034

WASHER,1/4"

plain, 11/32" x 11/16" x 1/16"

2шт.

33

751517R1

SPRING

draft link

1шт.

34

751514R1

CLEVIS

draft link

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

512166R1

PIN,1/4" x 7/8"

std. hd. 1/4" dia. x 7/8"

1шт.

35

751506R2

SPRING

top link

1шт.

36

751508R1

TRUNNION

top link

1шт.

37

751503R1

POWER ARM

CRANK, top link

1шт.

38

3049067R1

SHAFT

crank, top link

1шт.

39

3041366R1

PLATE

top link crankshaft, lock

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Top link crankshaft 1/8"-27 x .66 lg

1шт.

41

751513R1

SEAL

OIL SEAL Opt.

1шт.

3070697R91

SEAL

OIL SEAL Opt.

1шт.

42

355966R1

O-RING,0.424" ID x 0.103" Width

O RING, 7/16" x 5/8" x 3/32" (Class 5)

1шт.

43

751512R1

SHAFT

PLUNGER, draft link

1шт.

44

3047651R1

SEAL

OIL SEAL Opt.

1шт.

3070698R91

SEAL

OIL SEAL Opt.

1шт.

45

751509R3

PIN

SPINDLE, top link

1шт.

3073898R1

NUT

LOCKNUT, hex. 5/8"

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, sltd. hd. 3/4"

1шт.

108644

SEAT

cotter, 3/16" dia. x 1-3/8"

1шт.

108630

COTTER PIN,1/8" x 7/8"

PIN, SPLIT, (COTTER), 1/8" x 7/8"

1шт.

46

751507R1

SEAT

compression spring

1шт.

3049370R1

WASHER

plain 21/32" x 1-3/8" x 16 ga. (As required)

1шт.

3049369R1

WASHER

" WASHER, plain, 21/32" x 1-3/8" x 11 ga." (As required)

1шт.

551178

" WASHER, plain, 25/32" x 1-3/4" x 16 ga." (As required)

1шт.

3070211R1

WASHER

" WASHER, 21/32" x 1-1/2" x 21 ga." cad. pltd. (As required)

1шт.

47

751505R1

SPRING

"SPRING, top link"

1шт.

48

751516R1

SPRING

"SPRING, draft link, return"

1шт.

49

3040826R3

SPRING SEAT

"SEAT, spring (small)"

1шт.

50

3063270R1

KNOB

"KNOB, control lever"

1шт.

51

3064871R1

SEAT

"SEAT, spring"

1шт.

52

3064872R1

RING

"RING, wyclip scraper"

1шт.
