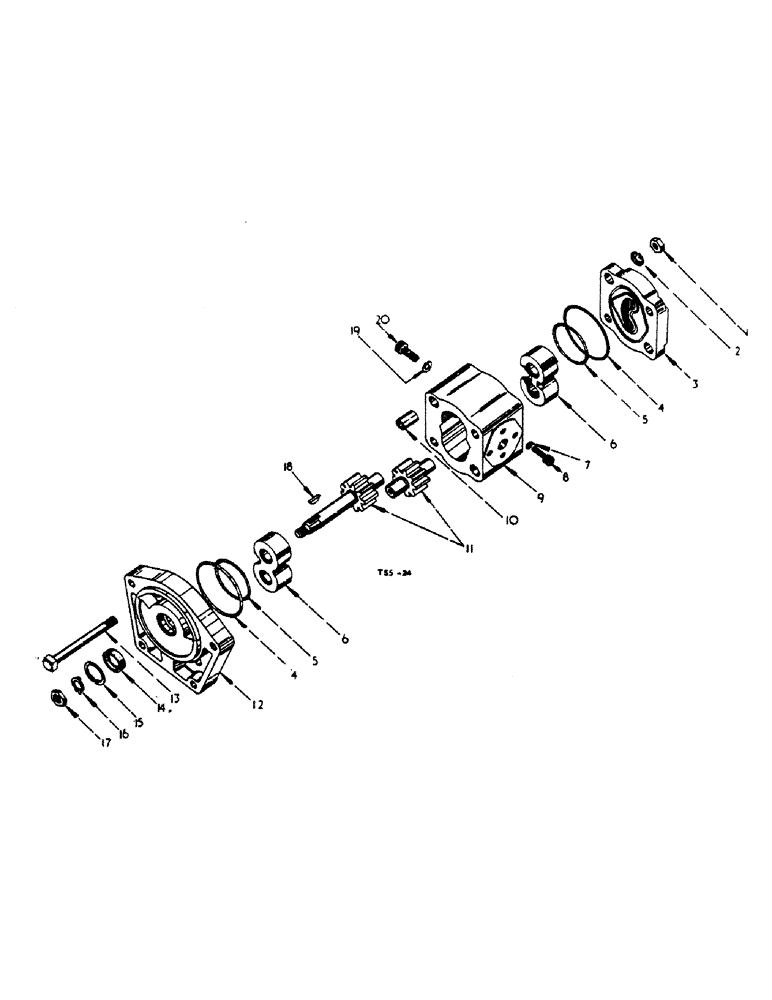

Запчасти Case IH 444 (5-02) - HYDRAULIC PUMP (08) - HYDRAULICS

704330R95

PUMP

cpte., hydraulic Plessey C-25-VR

1шт.

1

214441

NUT

3/8" UNF

4шт.

2

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

3044628R1

COVER

1шт.

4

O RING, flange sealing

2шт.

5

O RING, pressure relief

2шт.

6

3066762R91

BEARING

2шт.

7

706053R1

SPRING WASHER

spring

2шт.

8

3044642R1

SCREW

Allen, 1/4" x 3/4"

2шт.

9

BODY, pump "O" RING, manifold (inlet) "O" RING, manifold (outlet)

1шт.

10

3064277R1

PIN

DOWEL, hollow

4шт.

11

3044627R91

GEAR

PACK, gear spares

1шт.

12

708395R1

FLANGE

1шт.

13

3072021R1

BOLT

sq.hd. 3/8" UNF x 3-5/8"

4шт.

14

OIL SEAL

1шт.

15

706066R1

RETAINER

CIRCLIP

1шт.

16

706069R1

LOCK WASHER

WASHER, lock

1шт.

17

3044638R1

NUT

lock

1шт.

18

706067R1

KEY

Woodruff

1шт.

19

706072R1

WASHER

spring

2шт.

20

706075R1

SCREW

Allen, 5/16" x 3/4"

2шт.

3044645R91

SEAL

PACK, seal (As reqd) (comprises items

1шт.

3111634R91

SEAL KIT

PACK, seal (comprises items

1шт.
