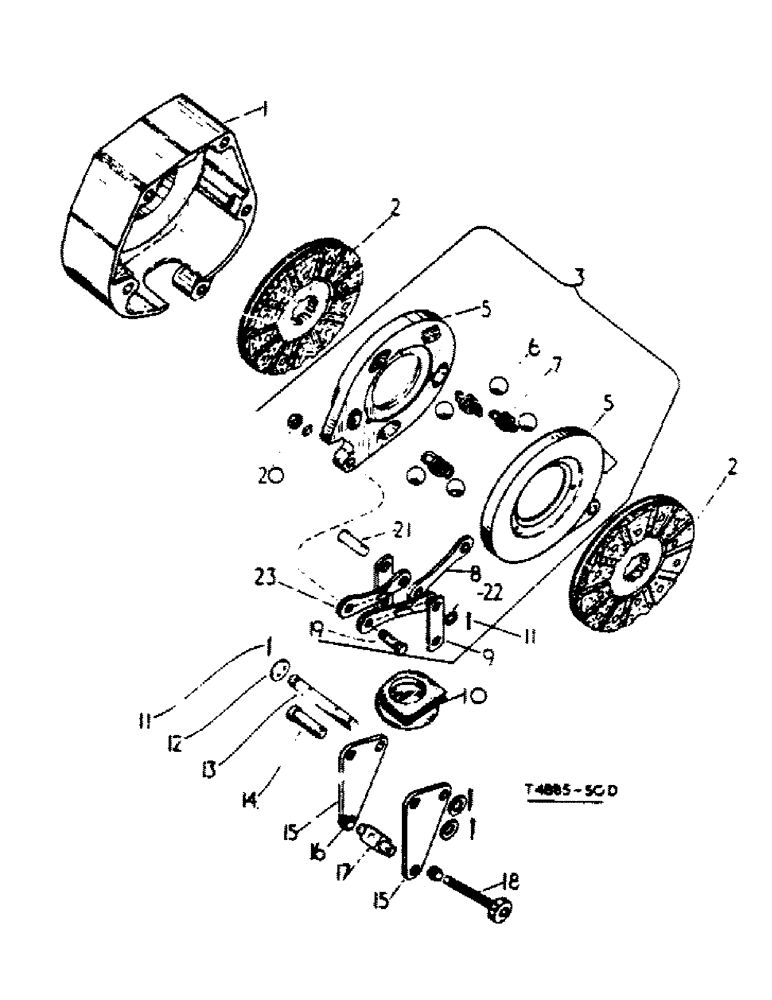

Запчасти Case IH 444 (4-30) - DISC BRAKES, KEY TO UNITS (07) - BRAKES

3064168R93

BRAKE

"BRAKE, assy disc, R.H. (Illustrated) (A)"

1шт.

3064167R93

BRAKE

assy., disc, L.H. (B)

1шт.

1

3105298R1

HOUSING

brake R.H. (Illustrated) (A)

1шт.

1

3105297R1

HOUSING

brake L.H. (B)

1шт.

2

395161R91

NO LONGER SERVICED

DISC, assy., brake Optional

1шт.

2

3064170R91

BRAKE DISC

DISC, assy., lined friction

2шт.

3

3105296R91

ACTUATOR

UNIT, assy., actuating disc comprising:

1шт.

BALL 706039R2

5шт.

DISC 3105304R1

2шт.

LINK 3105303R1

2шт.

LINK 3105302R1

1шт.

LINK 3067140R1

2шт.

NUT 3105301R1

2шт.

PIN 3105300R1

2шт.

PIN 16618R1

1шт.

PIN 3071519R1

1шт.

SPRING 3066876R1

3шт.

WASHER 3067142R1

1шт.

5

3105304R1

DISC

actuating

2шт.

6

706039R2

BALL

7/8" dia.

5шт.

7

3066876R1

SPRING

return disc

3шт.

8

3105302R1

LINK

plain

1шт.

9

3067140R1

LINK

tension

2шт.

10

3064173R1

BOOT

rubber

1шт.

11

3071519R1

PIN

split, 3/32" x 7/8" long (A6) (B5)

1шт.

12

3067147R1

WASHER

plain 35/64" x 1" x .090" (A5) (B4)

1шт.

13

3064195R1

PIN

brake operating pivot (A)

1шт.

14

3064216R1

PIN

tension link (A) (B2)

1шт.

15

3064194R1

LEVER

brake operating

2шт.

16

3067136R1

LOCK NUT

lock, 3/8" UNF (Special)

2шт.

17

3064217R1

TRUNNION

brake operating lever (Blank)

1шт.

18

3064218R1

BOLT

footbrake adjuster

1шт.

19

3105300R1

BOLT

PIN, pivot

2шт.

20

3105301R1

NUT

lock

2шт.

21

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, jaw

1шт.

22

3067142R1

WASHER

1шт.

23

3105303R1

LINK

cranked

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

hex. hd. 1/2" x 3-1/2 (A3) (B4)

1шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

(A) Hex, 1/2"-13 x 3 3/4", G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3040152R92

LINING

PACKAGE, brake lining, service

1шт.
