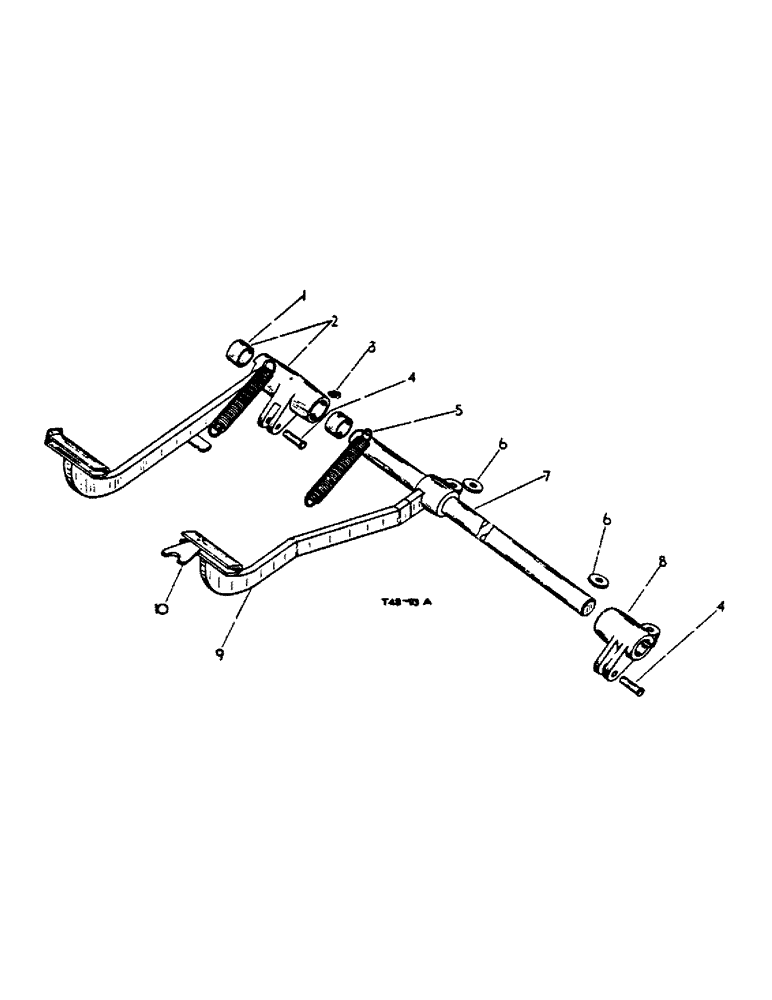

Запчасти Case IH 444 (4-29) - FOOT BRAKES AND LINKAGE (07) - BRAKES

1

3061206R1

BUSHING

brake pedal cross shaft

2шт.

2

3064177R91

PEDAL

w/FITTING 109461 and two BUSHING 3061206R1 cpte., R.H. brake

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

4

3064219R1

PIN

footbrake adjuster

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

120396

WASHER

plain 17/32" x 1-1/16" x .095" ga.

2шт.

5

3064186R2

SPRING

brake pedal return

2шт.

6

3064184R1

KEY

brake lever

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

3064175R2

SHAFT

brake pedal

1шт.

3072088R1

RETAINER

CIRCLIP

1шт.

8

3064185R1

LEVER

"LEVER, L.H. disc brake"

1шт.

9

3064176R91

PEDAL

"PEDAL, w/PLATE 43751DB PIN 442946" " and SPRING 51293D cpte., L.H. brake"

1шт.

10

43751DB

LATCH, PEDALS

"PLATE, brake pedal lock"

1шт.

51293D

SPRING

"SPRING, brake pedal lock, plate tension"

1шт.

442946

LEVER

"PIN, groove, 1/4" x 5/8" type 3"

1шт.
