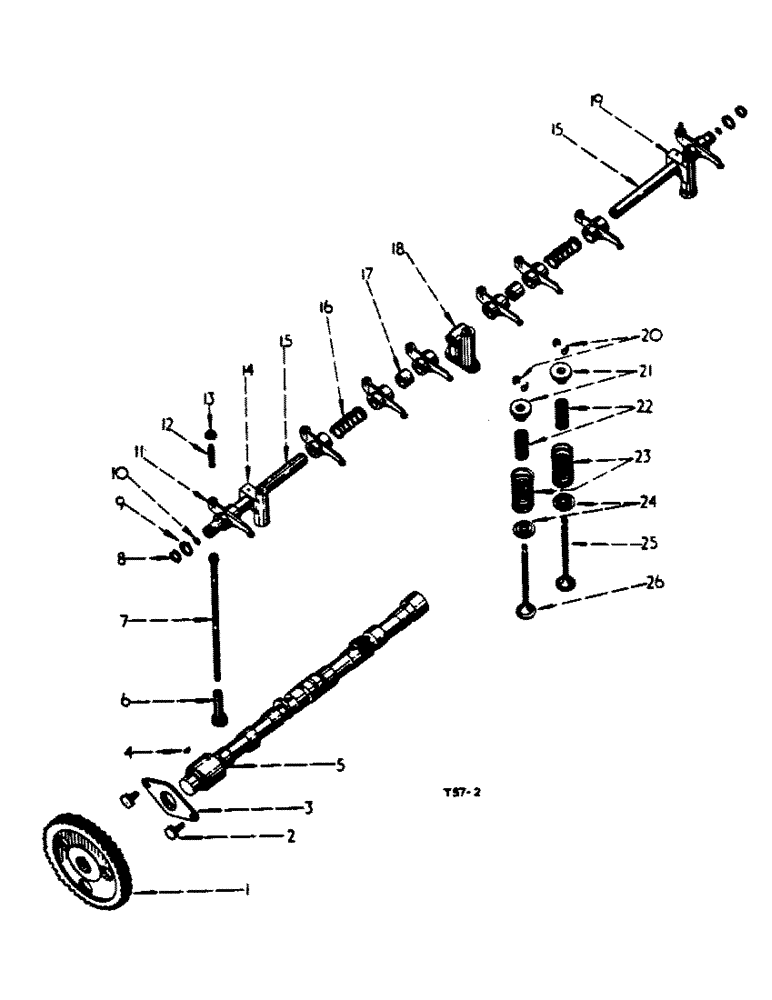

Запчасти Case IH 444 (1-06) - CAMSHAFT AND VALVE MECHANISM (02) - ENGINE

1

3064085R1

PINION

GEAR, camshaft (66 T)

1шт.

2

26058D

SCREW

camshaft thrust plate

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, lock, type A, internal tooth 5/8"

2шт.

3

43249D

PLATE

camshaft thrust

1шт.

4

218217

KEY

camshaft gear

1шт.

5

3063934R1

CAMSHAFT

1шт.

5

3064086R91

GEAR

CAMSHAFT, w/CAMSHAFT 3063934R1, GEAR 3064085R1, KEY 218217 and PLATE 43249D

1шт.

6

704782R1

TAPPET

valve

8шт.

7

704783R2

ROD

valve push

8шт.

8

43375D

RING

valve lever shaft snap

2шт.

9

43374D

SPRING WASHER

spring, valve lever shaft

2шт.

10

172528

PLUG,Exp, 9/16"

valve lever shaft

2шт.

11

706131R11

ROCKER

LEVER, w/BUSHINGS 24564DA cpte. valve Opt.

8шт.

11

3071431R1

ROCKER

ARM, rocker Opt.

8шт.

12

3108732R1

ADJUSTMENT SCREW

adjusting valve lever

8шт.

13

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

8шт.

14

703886R2

SUPPORT

BRACKET, valve lever shaft - front

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

15

703884R21

CAMSHAFT

SHAFT, w/PLUG 172528 cpte., valve lever

2шт.

16

45949D

SPRING

valve lever

2шт.

17

703893R2

SPACER

valve lever

2шт.

18

703885R1

SUPPORT

BRACKET, valve lever shaft - centre

1шт.

19

703887R2

SUPPORT

BRACKET, valve lever shaft - rear

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

20

704443R1

WEDGE

LOCK, valve spring

16шт.

21

3044176R1

CUP

valve spring retainer - upper

8шт.

22

3044239R1

VALVE SPRING

SPRING, valve - inner

8шт.

23

3044240R1

VALVE SPRING

SPRING, valve - outer

8шт.

24

3044491R1

CUP

valve spring retainer - lower

8шт.

25

3040361R1

OVERSIZE INLET VALVE

VALVE, intake

4шт.

26

3043826R1

LOCK VALVE

VALVE, exhaust

4шт.

24564DA

BUSHING

valve lever

8шт.
